5.8 Connection of the M Bus Gateway
M bus meters such as energy, gas, warm water or water meters can be connected to the store computer using
the M bus gateway.

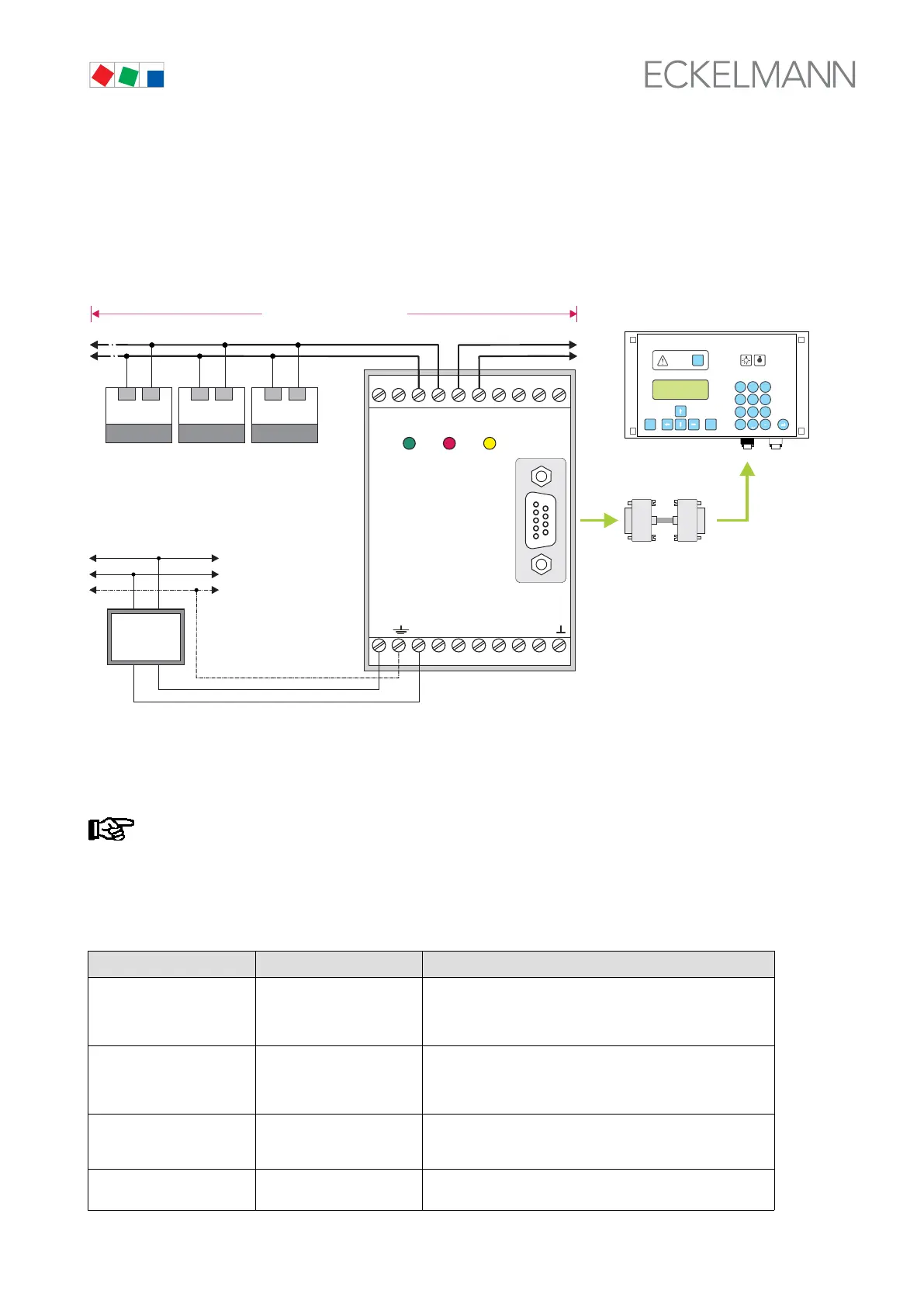

In order to do this the M bus gateway must be connected to the store computer’s COM2 interface using the in
cluded serial cable and must be supplied with power using a 24 V DC power pack (article number
KGLNT23024):
m³
J-Y(ST)Y 2 x 2 x 0,8 mm
ZNR.: 51203 87 430 DEF0
CI 3000
CI 3100
COM2
MODEESC
PRIO 1
PRIO 2
,
9
WXYZ
7
PQRS
8
TUV
6
MNO
4
GHI
5
JKL
3
DEF
2
ABC
1
0
ALARM
RESET
m³ kWh
Water Energy Gas
V+
V- RX TX
M+M+M+ M-M-M-
M-Bus
On SlaveShort
1
5
9
6
M+ M- M+ M-M+ M-
L
N
PE
Power
11 .. 28 V DC
min. 6 W
- +
- KGLNT23024 -
24 V DC
1,3 A
RS232C
M-Bus-Gateway-20
- KGLZMBUS01 -
M-Bus
The following M bus gateways are available: For max. 20 M bus meters (article No. KGLZMBUS01)
For max. 60 M bus meters (article No. KGLZMBUS02)
In order for the M-bus meter to be integrated into the LDS system, the store computer's COM2 interface must be
configured in menu 6-1-9.
For detailed information on the M-bus in respect of topology, wiring and connection instructions,
see the operating instruction ”Basic and General Safety and Connection Instructions”. M bus meters
connected to the store computer cannot be used for the load shedding manager (LSM)
(see chapter 4.11.2).
The M bus meters listed below harmonise with the store computer (impulse/S0 and M bus) and are recom
mended for use:
Meter type Manufacturer Type
Electricity - ABB
- ABB / Berg
- EMH / Berg
- Gossen Metrawatt
A43
DZ+
DCi, DCMi, MIZ Premium
U128B
Heat - Sensus
- Minol
- allmess
- Aquametro
Pooltherm (optional power pack required)
Minical
Megacontrol (optional power pack required)
ST C0
Water - allmess / Itron
- techem
- Hydrometer
M-Bus Modul BM4 +m 1
m-bus S III
Flypper 4
Impuls modules - Relay
- Schell
PadPuls M2C
M-Count 2C
