5.7 Connecting case controllers
S Marktrechner CI 3000

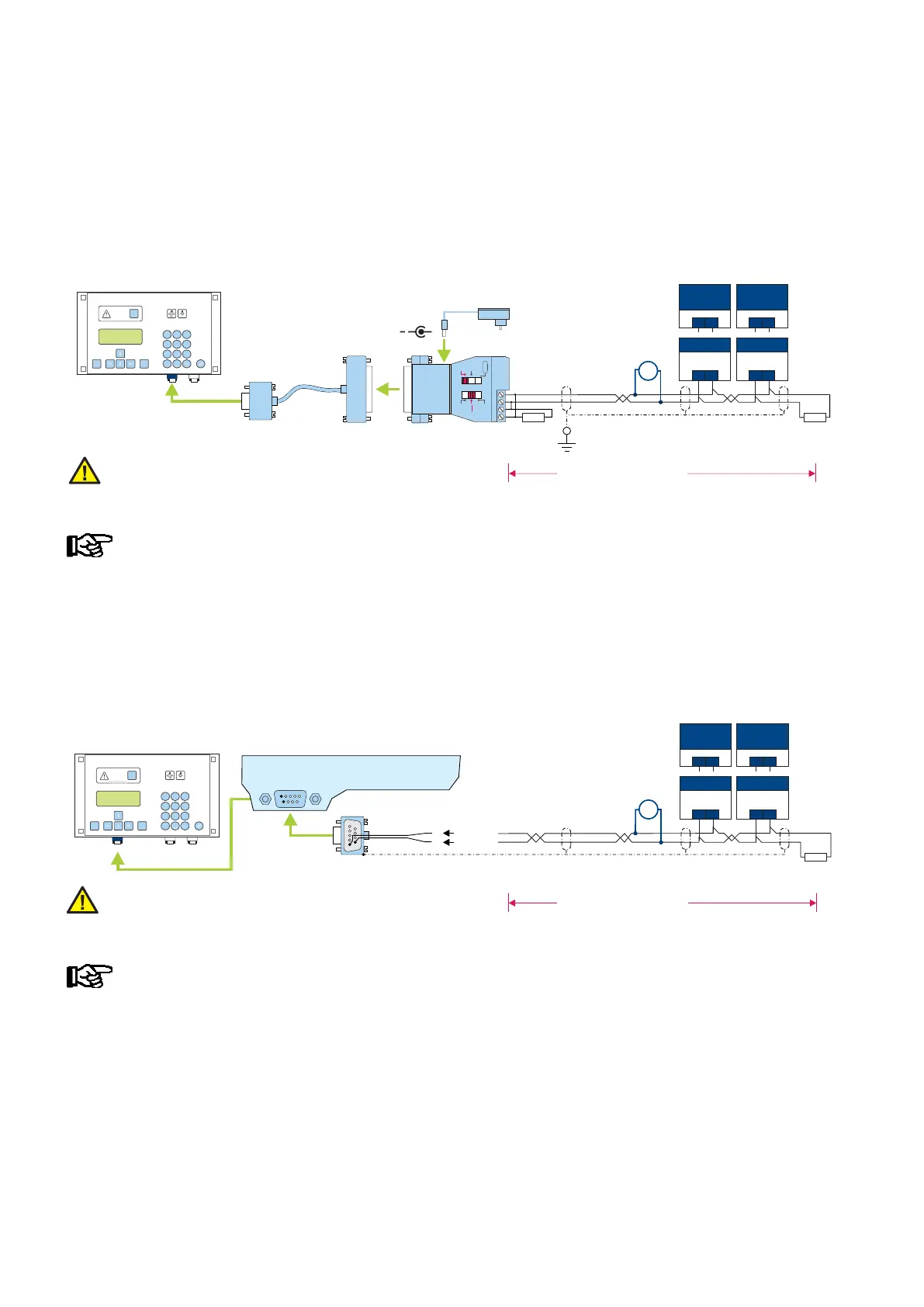

Modbus connection of compact case controllers (e.g. UA 30) i.e. case controllers of the LDS1 system via
LDS1 gateway with RS232-RS485 converter at the COM2 interface:
SHIELDED TWISTED PAIR.
CONNECTED ONLY ONESIDED WITH THE PE TERMINAL.
CONNECTION WITHOUT INTERUPTION TO ALL DEVICES!
Modbus: max. 1000 m
RS232-RS485
CONVERTER*
MAX. 50 DEVICES ARE
ALLOWED IN THE
RS485-MODBUS SYSTEM!
SUB-MIN-D ADAPTER CABLE
9-PIN FEMALE CONNECTOR
TO 25-PIN MALE
CONNECTOR
SUB-MIN-D
25-PIN FEMALE
CONNECTOR
J-Y(ST)Y 2 x 2 x 0,8 qmm
CABLE TYPE MODBUS:
SHIELD:
ZNR.: 102 130 E2
COM2
PE
9 V DC
+
230 V AC
100 Ohm*
0,25 W
+
-
+
-
* INCL. ADAPTER CABLE, POWER SUPPLY + 2 TERMINATING RESISTORS
+
-
± 0,3 .. 2,0 V DC
V
4
3
2
1
DCE
DTE
TON
RON
x
x
T-RTS
R-RTS
T-RT S
RON
x
MONI
RTS
R+
R-
T-
T+
RS232/
RS485
*Konverter
CONVERTER
-
+
11 12
-
+
20 21
UA 30 RC UA 30 RS
10 9
LDS1-
Gateway
10 9
LDS1-
Gateway
RS485 RS485
-
+
-
+
Modbus
MODEESC
PRIO 1
PRIO 2
,
9
WXYZ
7
PQRS
8
TUV
6
MNO
4
GHI
5
JKL
3
DEF
2
ABC
1
0
ALARM
RESET
100 Ohm*
0,25 W
Schirm
SHIELD
In order for the compact controller to be integrated in the LDS system,
the COM2 interface must be configured in menu 6-1-9
S Marktrechners CI 3100
Modbus connection of compact case controllers (e.g. UA 30) i.e. case controllers of the LDS1 system via
LDS1 gateway directly at the COM3 interface:
S Connecting compact case controllers (e.g. UA 30) to the CI 3100 store computer
directly at the COM3 interface:
SHIELDED TWISTED PAIR.
CONNECTED ONLY ONESIDED WITH THE PE TERMINAL.
CONNECTION WITHOUT INTERUPTION TO ALL DEVICES!
Modbus: max. 1000 m
MAX. 50 DEVICES ARE
ALLOWED IN THE
RS485-MODBUS SYSTEM!
J-Y(ST)Y 2 x 2 x 0,8 qmm
CABLE TYPE MODBUS:
SHIELD:
PE
CI 3100
ONLY
COM3
MODEESC
PRIO 1
PRIO 2
,
9
WXYZ
7
PQRS
8
TUV
6
MNO
4
GHI
5
JKL
3
DEF
2
ABC
1
0
ALARM
RESET
+
-
± 0,3 .. 2,0 V DC
V
RS485
-
+
11 12
RS485
-
+
20 21
UA 30 RC UA 30 RS
10 9
LDS1-
Gateway
10 9
LDS1-
Gateway
-
+
-
+
Modbus
+
-
100 Ohm
0,25 W
SHIELD
9 RS485
5 RS485
+
5
9
COM3* (RS485)
* 9-PIN FEMALE CONNECTOR WITH
INTEGRAL TERMINATING RESISTOR
5
9
-
+
9-PIN MALE CONNECTOR
CI 3100
-
+
-
ZNR.: 102 230 E2
Configuration of the COM3 port is not necessary, since the compact controller is
automatically recognized by the CI 3100 store computer and integrated in the LDS system.
