ECKELMANN CI 3000 - 11.2 Mechanical Data and Dimensions; 11.2.1 CI 3000 Dimensions

Specifications of CI 3000 / SIOX
124
Version 2.09 09. April 2014
11.2 Mechanical data

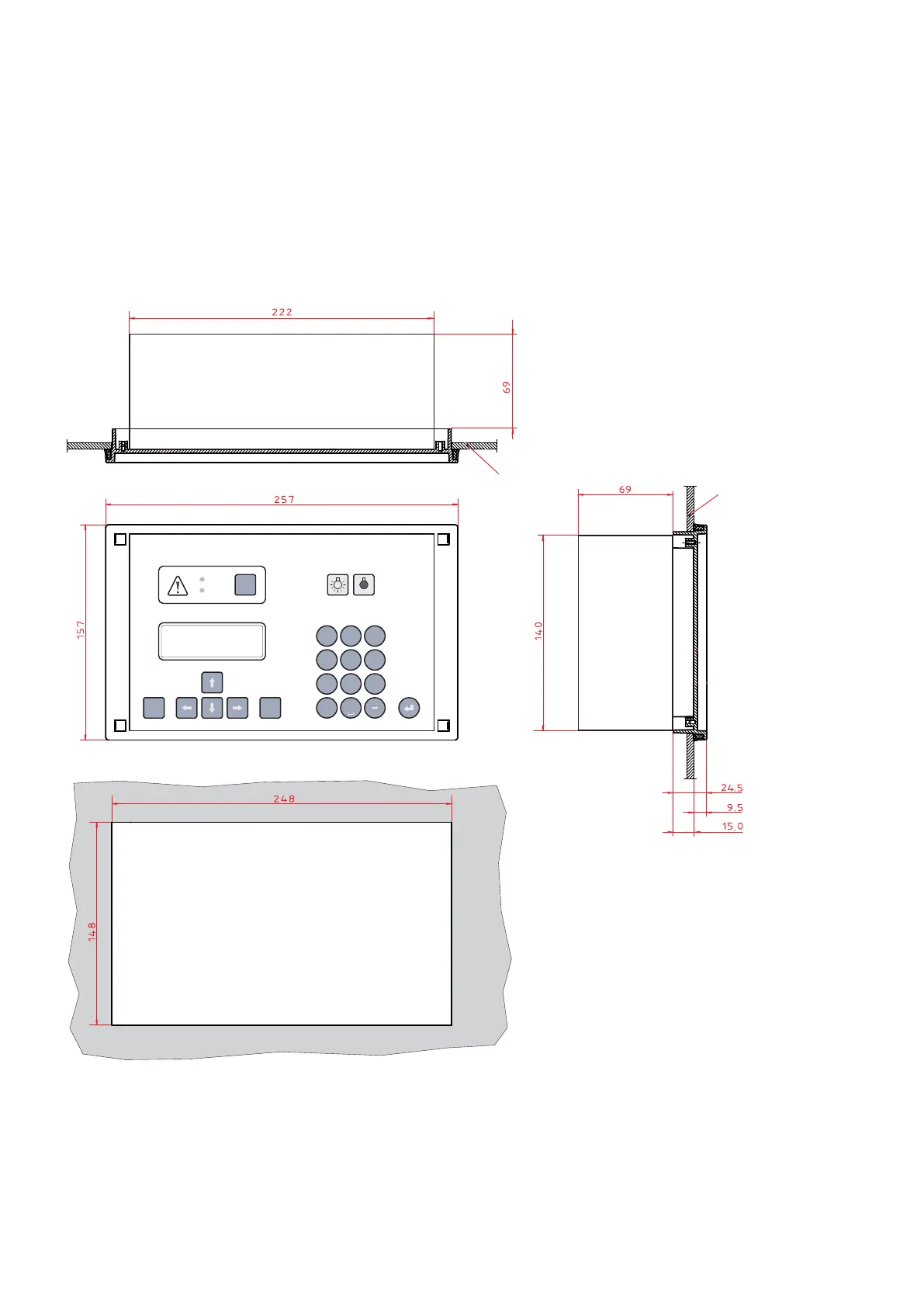

11.2.1 Dimensions of the CI 3000
(2)
ZNR. 51203 67 030 DEF1
(1)
(1)
(1)
MODEESC
PRIO 1
PRIO 2
,
9
WXYZ
7
PQRS
8
TUV
6
MNO
4
GHI
5
JKL
3
DEF
2
ABC
1
0
ALARM
RESET
(1): Control panel (2): Panel cutout
