H50/H51 Hematology Analyzer User Manual Measurement Principle
- 7 -
2.2 Main Parts
H50/H51 Analyzer consists of front cover, fluidic part, reagent area, connection board, external
power supply adapter, printer (optional) and external Barcode reader.
2.2.1 Front cover

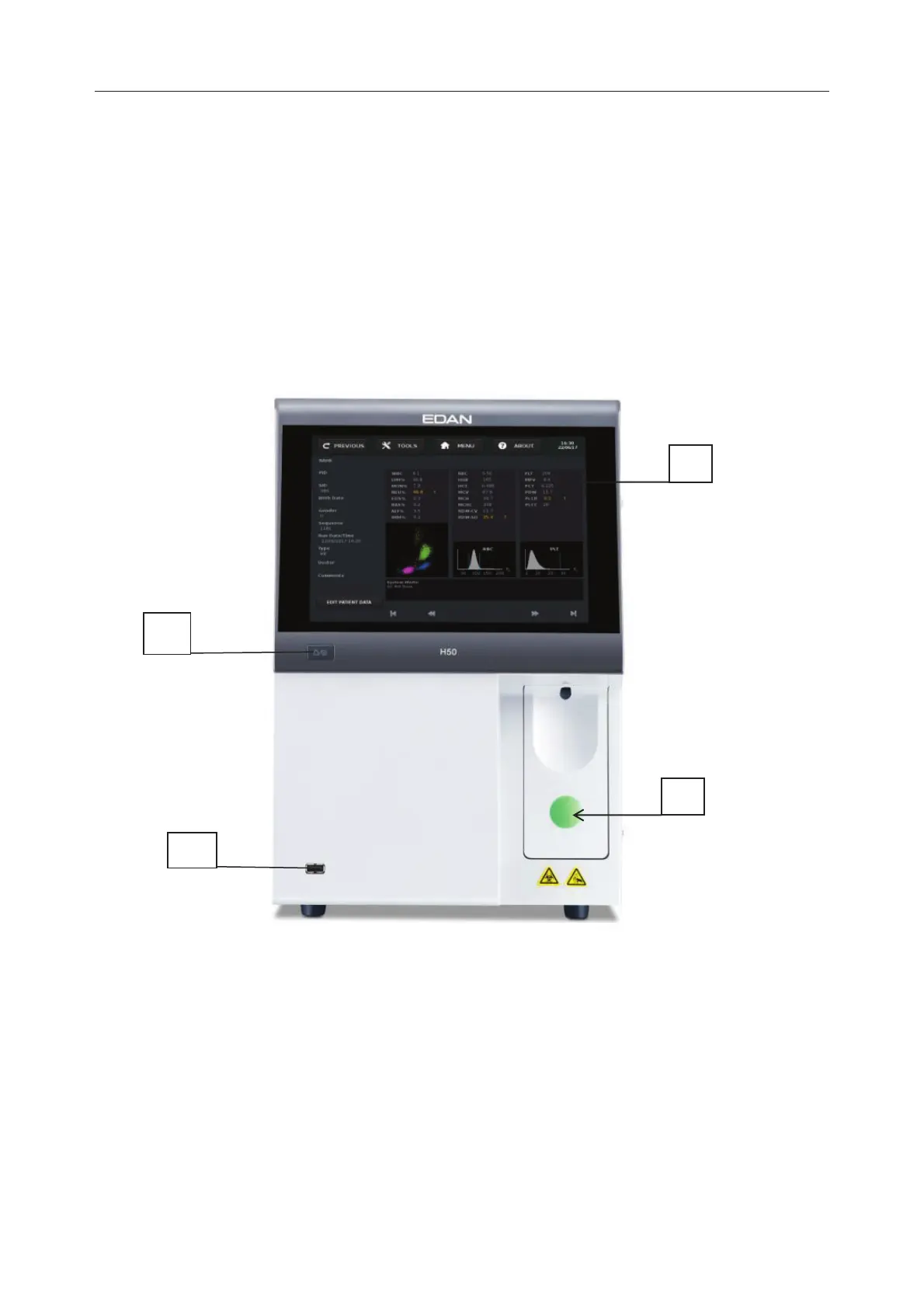

The front cover consists of the five elements listed below:
1. Touch and display screen (10.4”)
2. ON/OFF button
3. Start key
4. USB port connection
2.2.2 Fluidic part
The fluidic part is located on the right side of the instrument directly accessible after opening of
the fluidic door. The fluidic part consists of the six elements listed below:
1. Sampling module
2. Syringe module
3. Syringe valve module
4. Counting module
5. Counting valve module
6. Optic Bench
