H50/H51 Hematology Analyzer User Manual Installation Guidance
- 19 -
3. Connect one end of the diluent pickup tubing to the white diluent connector located at the
back of the instrument and connect another end to the diluent container.
NOTE:
Diluent container must be placed on the same level as the instrument.
4. Connect one end of the waste pickup tubing to the red waste connector located at the back of
the instrument and put another end into a waste container.
NOTE:
Waste container must be placed on the floor.
5. Tighten the cap of the Lyse pickup tubing (Yellow color sleeve) and the cap of the Cleaner
pickup tubing (Blue sleeve) to the corresponding bottles. Install lyse and cleaner bottles in the
reagent compartment of the instrument.

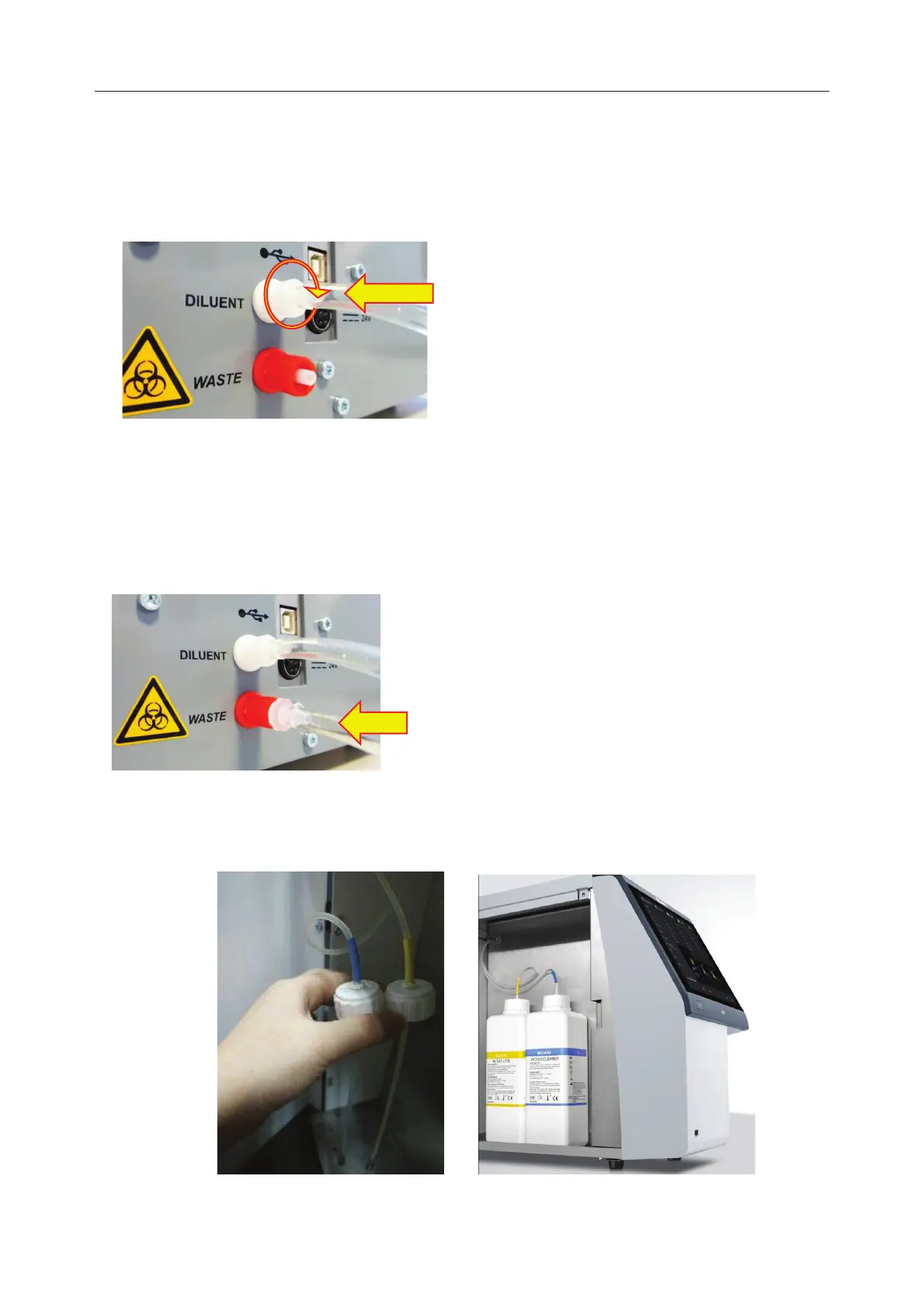

Connect the diluent pickup tubing
and turn clockwise the pickup tube.
To connect the waste tubing and
turn anticlockwise the waste tubing
