Chapter 5

| System Settings

Upload Certificate

– 86 –

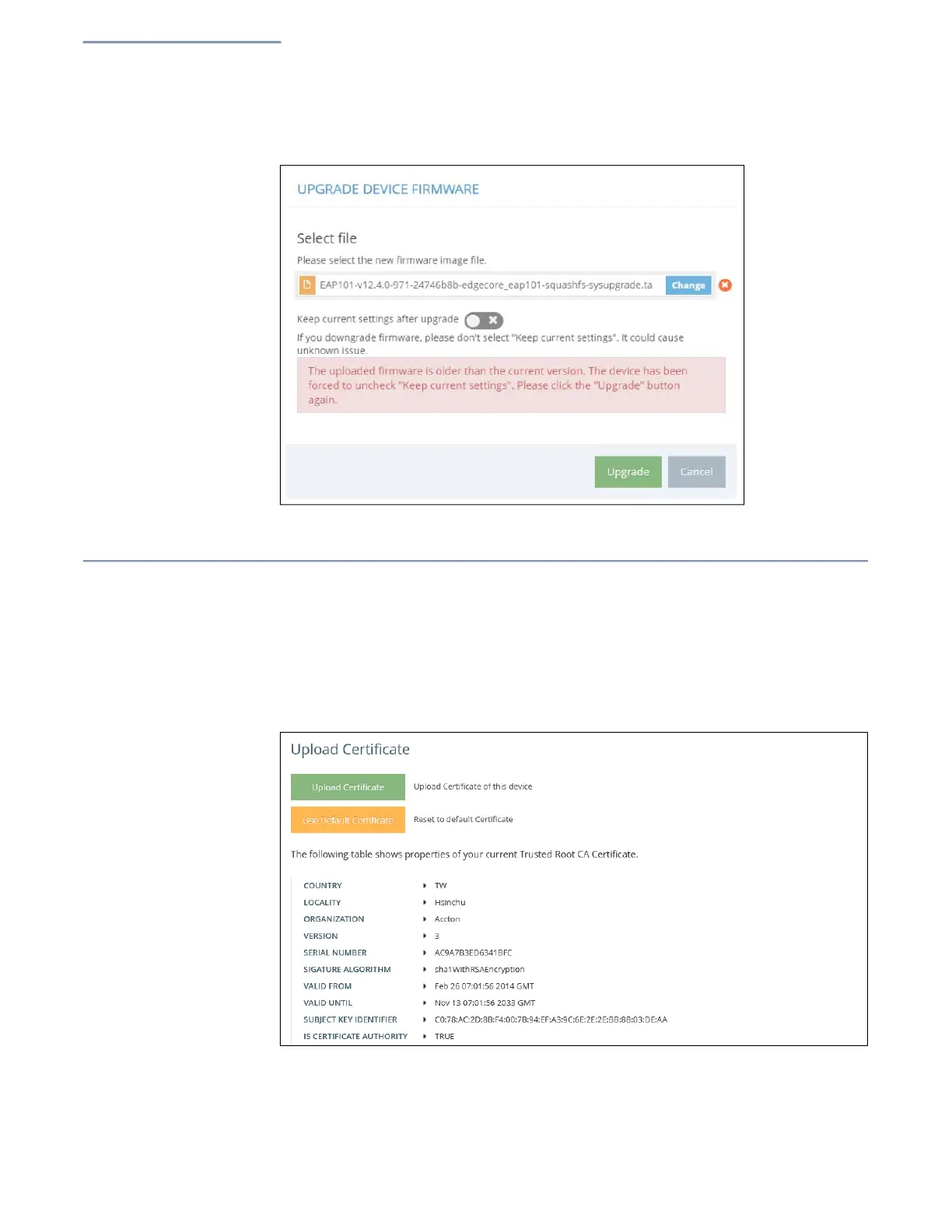

Figure 56: Upgrading Firmware

Upload Certificate

The Upload Certificate page allows you to upload a unique security certificate from

a trusted certification authority for secure access (an encrypted connection) to a

configured HTTPS captive portal. Alternatively, you can also reset to use the default

certificate.

Figure 57: Upload Certificate

The following items are displayed on this page:

 Upload Certificate — Click to upload a security certificate and private key

from a trusted certification authority.
