Chapter 5 | System Settings
Services
– 94 –
 Tx Interval (seconds) — Sets the periodic transmit interval for LLDP
advertisements. (Range: 5-32768 seconds; Default: 30 seconds)
 Tx Hold (time(s)) — Configures a time-to-live (TTL) value sent in the LLDP
advertisements as shown in the formula below. (Range: 2-10; Default: 4)
The time-to-live tells the receiving LLDP agent how long to retain all information
pertaining to the sending device if it does not transmit updates in a timely
manner.
The TTL in seconds is based on the following rule:
minimum v
alue ((Tx Interval * Tx Hold), or 65535)
T
herefore, the default TTL is 4*30 = 120 seconds.
BLE The AP supports the iBeacon standard based on Bluetooth Low Energy (BLE).
Devices with BLE Beacons can provide location-based services to BLE clients, such
as phones, that can recognize the beacon advertisements, extract the provided
information, and then take actions based on the content.

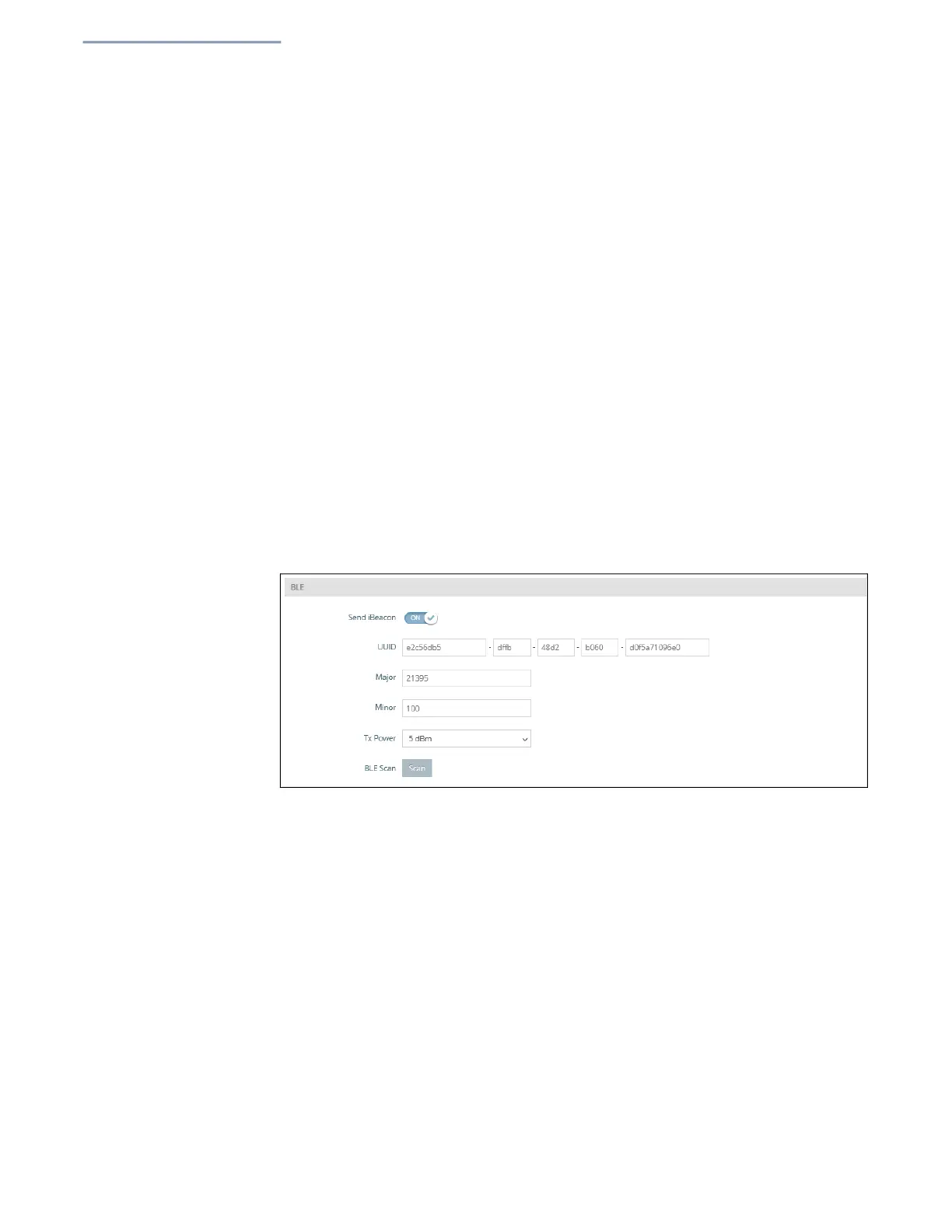

Figure 68: BLE Se
ttings
T
he following items are displayed on this page:
 Send iBeacon — Enables iBeacon support on the AP. (Default: Enabled)
 UUID — The iBeacon Universally Unique Identifier that advertises the beacon
service. The UUID contains 32 hexadecimal digits in five groups, separated by
hyphens.
 Major — The iBeacon value that is used to identify a beacon group.
(Range: 0-65535)
 Minor — The iBeacon value that is used to identify individual beacons within a
group. (Range: 0-65535)
 Tx Power — Sets the BLE radio transmit power (supported only on EAP101 and
EAP104). (Range: 5 dBm to -20 dBm; Default: 5 dBm)
