SCU-1601 Control Unit for Turbomolecular Pump
WARNING
Ensure that the SCU-1601 and the electrical supply cable are suitably protected against
earth (ground) faults and that the earth (ground) of the SCU-1601 and "X2 AC POWER"
are correctly connected.
CAUTION
The power cable is designed specifically for the STP pump. DO NOT use the power cable with other
products.
Connect the power cable securely to prevent any poor or cross connections. DO NOT apply voltages
exceeding 1 kV to the input line.
Ensure that the supply voltage is as indicated on the SCU-1601 information label.
Connect the power cable to the "X2 AC POWER" on the SCU-1601 rear panel as shown in Table 5.
Connect the suitable connector to the power supply as shown in Table 5.
Connect the power cable to the main power of the vacuum equipment via a circuit breaker (rated
current 15 A).
When using the power cable without plug, connect, connect the primary power to the UL-recognized
terminal block of the vacuum equipment. Secure the terminals with M4-bolts as the other side of the
terminals, and cover the terminal block with an appropriate cover. (refer to Figure 22)
Note: When being supplied the power from the TMS unit (STC-U), connect power cable accordance
with the instruction manual of the TMS unit (STC-U).
Note: The STP connection cable and primary power cable are not included. Contact the distributor
to purchase.
2.5 mm
2
(AWG 14) × 3 cores, φ9.6 to φ10.1 mm
Cable color: Brown, Blue, Yellow/Green or Black1, Black2, Yellow/Green

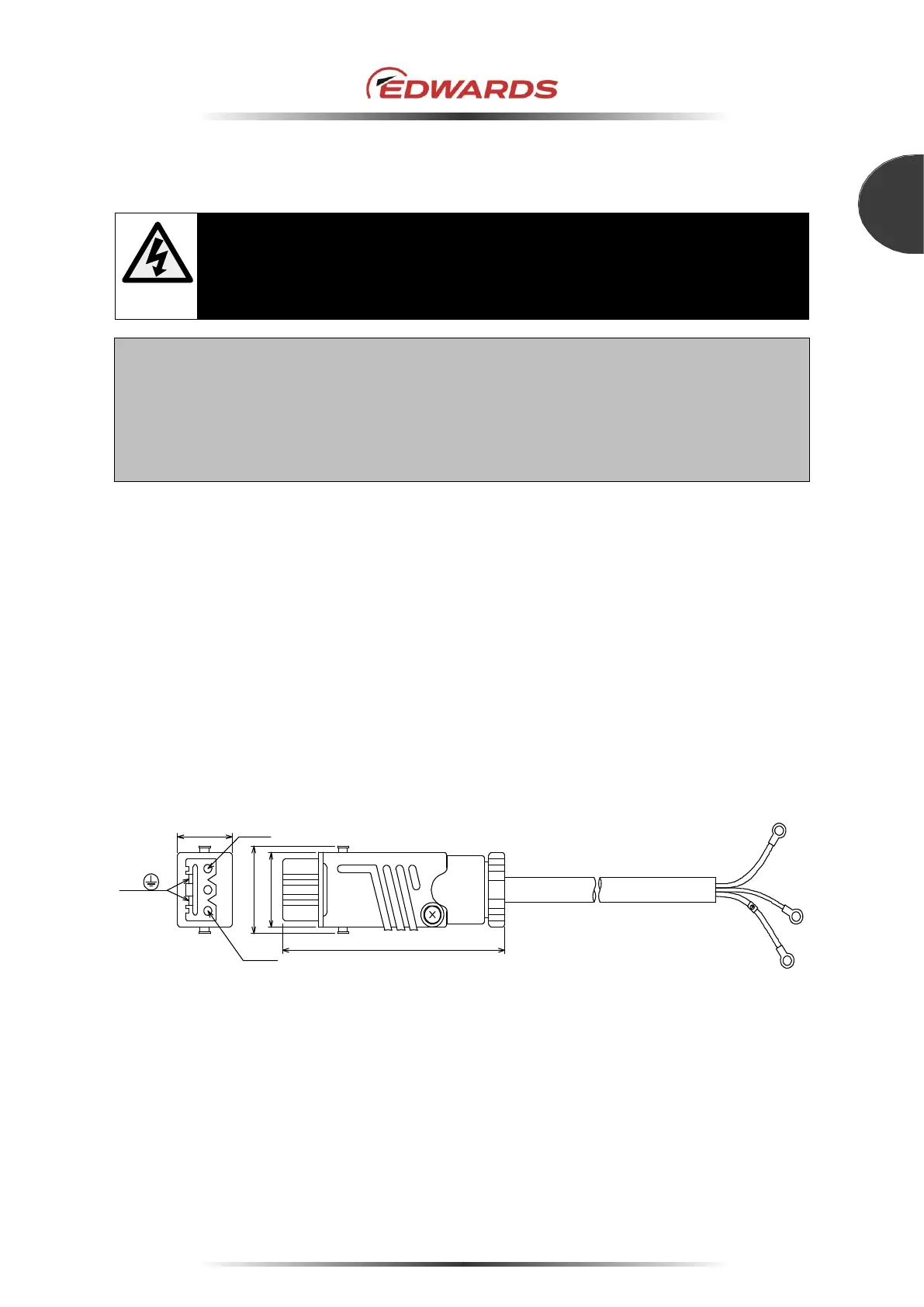

Figure 20 - Power cable (without plug)
