STP-iS1607 Series Turbomolecular Pump

MT-94E-001-C

Page 31

INSTALLATION OF THE STP PUMP

Standard specification

Profibus specification

"POWER" LED

"REMOTE" connector (X2)

"Error" LED

"FAILURE" LED

"COM1" connector (X3)

"AC POWER" connector (X1)

"ROTATION" LED

"Data" LED

"MAIN POWER" switch

"STP-LINK" connector (X5)

"Off-Line" LED

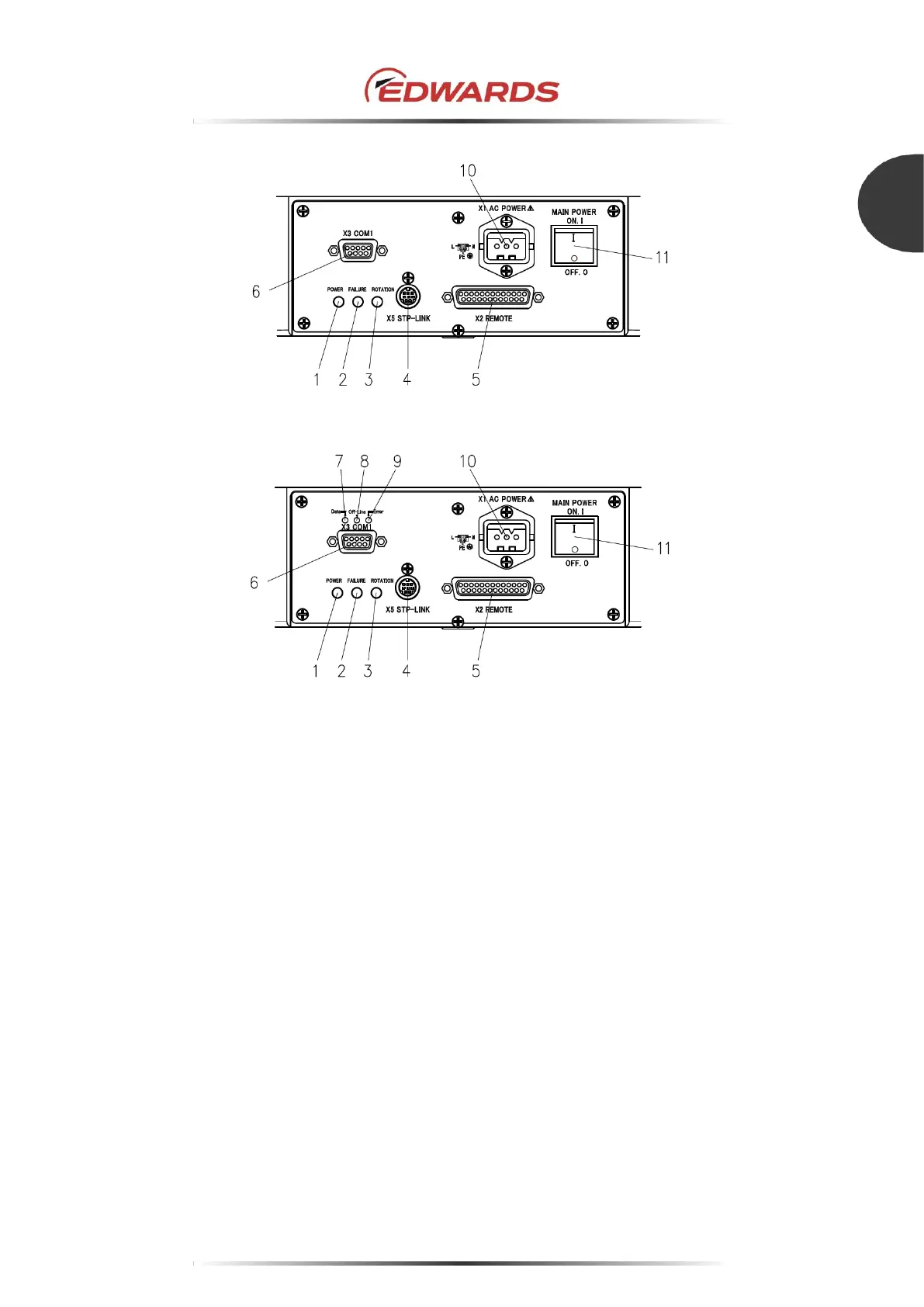

Figure 17 - Control unit (Front panel)

Note: Refer to Table 4, Table 5 for front panel functions.
