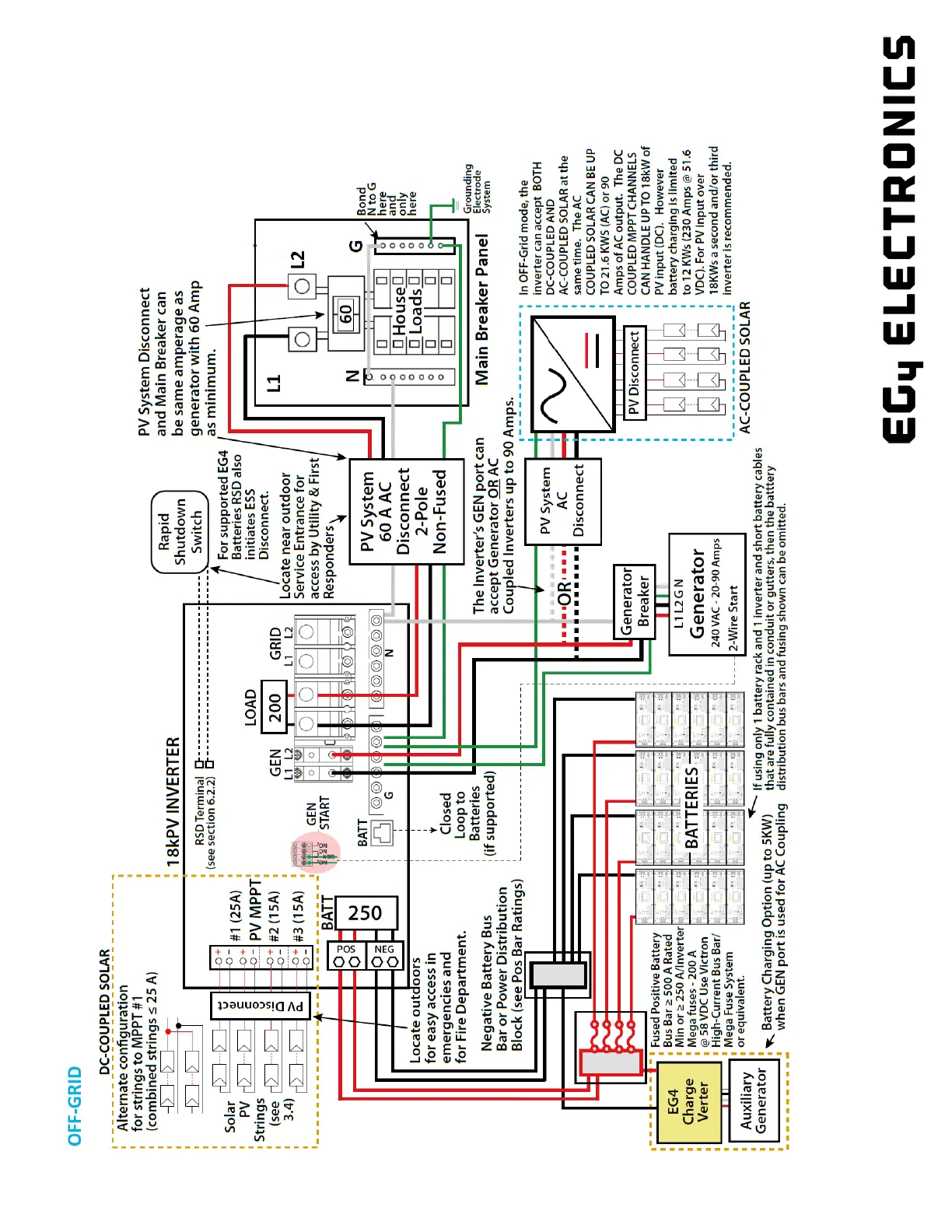

Diagram 4.9
Note: The amperage of the critical loads subpanel can be the same amperage as the generator input if present. The generator can be 25-90A—the
critical loads subpanel should have a minimum of 60A to fully utilize battery power. Therefore, if a generator larger than 60A is installed, the critical
loads
subpanel amperage should match to use the full backup power of the generator.
