14│en Introduction to the system

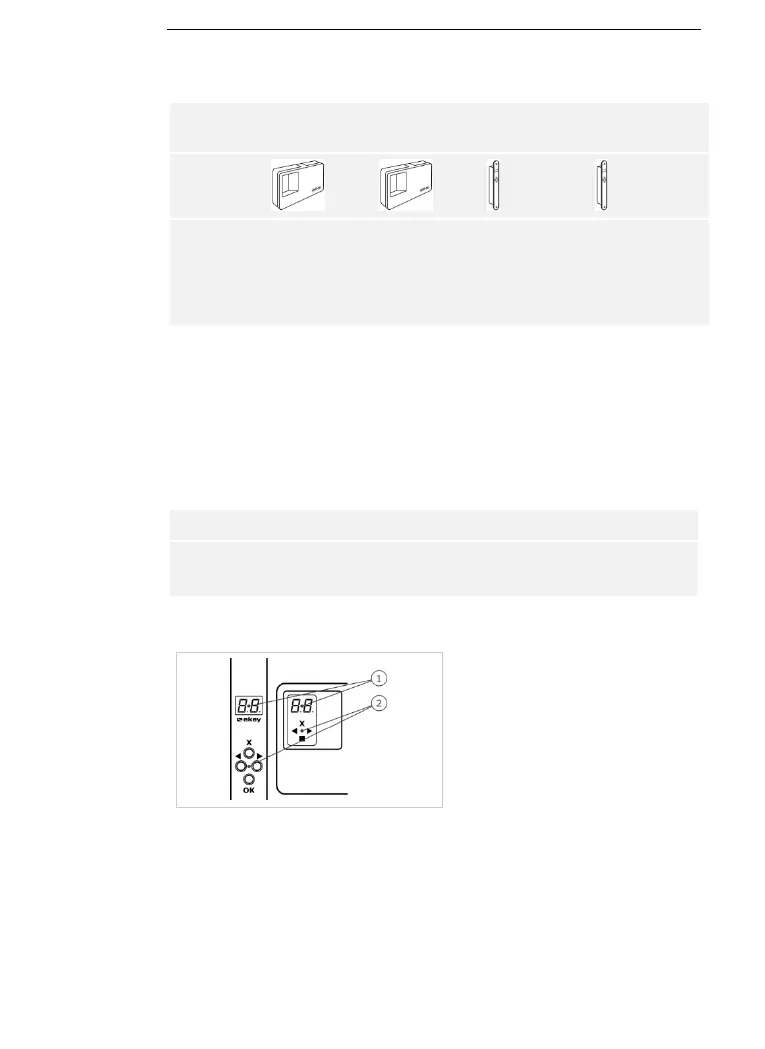

The control panels are available in 2 models, each with 2 relay variants.
You can only operate a single registration unit per control panel. Any
registration unit works with any control panel.
Product
name
ekey home
CP WM 1
ekey home
CP WM 3
ekey home
CP IN 1
ekey home
CP IN 2
Figure
Mounting
type
Wall
mounting,
1 relay
Wall
mounting,
3 relays
Can be
integrated,
1 relay,
1 digital
input
Can be
integrated,
2 relays,
1 digital input
Table 5: Control panel models and variants
Function of the control panel
The control panel is the actuator of the system. It serves to switch one or
more relays. The ekey home control panel integra makes one or two
digital inputs available.
Control panel controls
Controls
Function
Seven-segment
display and 4 buttons
Programming and configuring, relay control.
Table 6: Control panel controls
1 Seven-segment display
2 Keypad
Fig. 6: Overview of the
ekey home control panel wall-mounted
and the
ekey home control panel integra
Control panels
