Technical Support - MDM
77/104
599 77 39-16 Rev. 00

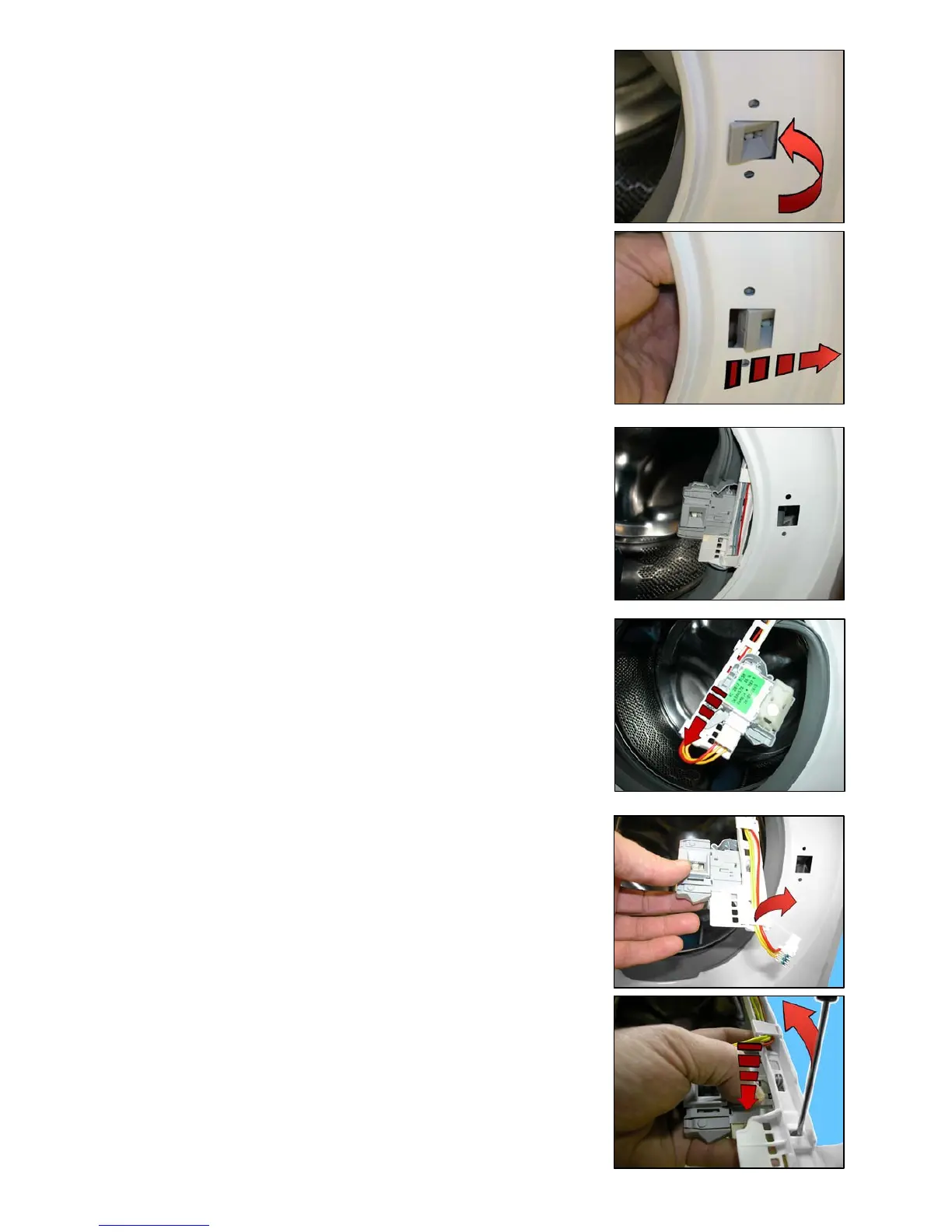

Turn it towards the inside (right-hand side of the flange).
Pull it out and remove it.
Remove it.
Pull a little of the wiring out of the protection and remove the connector.
Release the hook, remove the wiring and move it.
Insert a flat-tip screwdriver into the slot near the hook.
Tilt it in the direction of the arrow so as to release it from the latch, while
at the same time pushing the micro-switch with your thumb in the direction
shown by the arrow.
