6.2.2.7 Editing DIPS less than 1 period

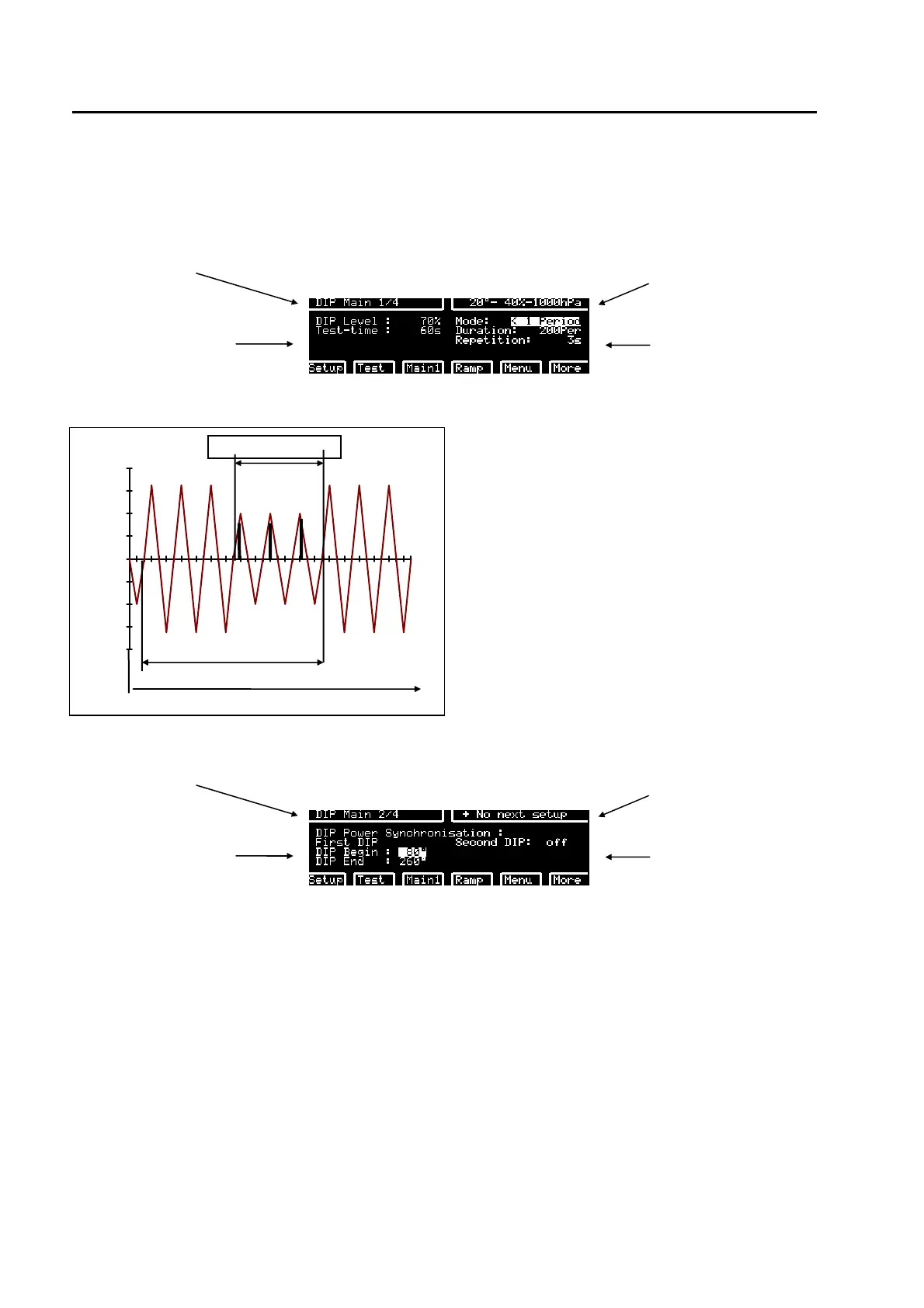

Short Dips are interruptions shorter than one period of the EUT power supply. The duration of a dip is
entered as an angle in degrees (°). A maximum of two different dips can be defined per period. Periods with
equal dips can be multiplied.
loaded test EUT power v, i
test parameters
tests parameters
-400
-300
-200
-100
0
100
200
300
400
Nbr. of periods is equal the number of disturbed
periods. Repetition defines how often the
disturbance occurs.
6.2.2.4.1 Definition number of periods, repetition,
test time
When the soft key F6 has been pressed:
loaded test EUT power v, i
test parameters
tests parameters
When the EDIT button has been pressed the dialogue line indicates the possible range like v, time, etc.
The values can be varied as follows within the given ranges:
1. Set the cursor to the parameter to editing
2. Edit the values as required using the numerical keys
3. Confirm that the values entered are correct by pressing the ENTER - button.
Test time
Duration
Repetition
