TRANSIENT3000
79/162
Conditions which must be fulfilled:
DIP End >= DIP Begin
DIP2 Begin > = DIP 1 Begin
When only one DIP is required, then the DIP 2 can
be placed on DIP 1, or DIP2 Begin is equal DIP2
End.

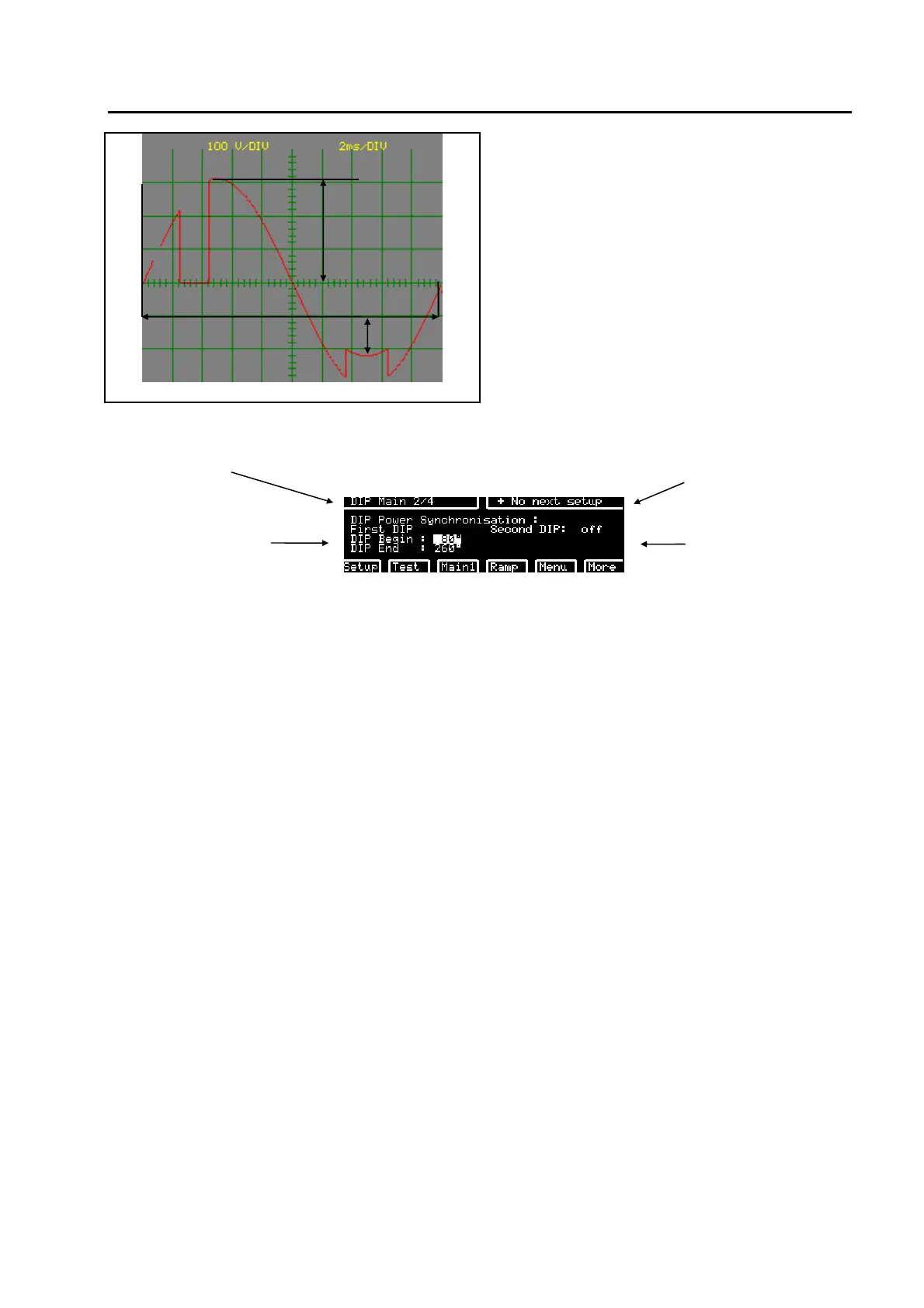

6.2.2.4.2 Definition synchronisation
When the soft key F6 has been pressed:
loaded test EUT power v, i
test parameters
tests parameters
At an interruption to 0%, two power supply impedance can be differentiated: supply impedance high Z and
low Z. At high-Z and 0% = OFF, the EUT will be discharged at DIP begin via a low impedance as happens
in reality. Further explanation about high Z, see Chapter 3.4
Dip 1
Dip 2
Begin
End
Begin
End
UT
DIP Levelin %UT
To Next Page
