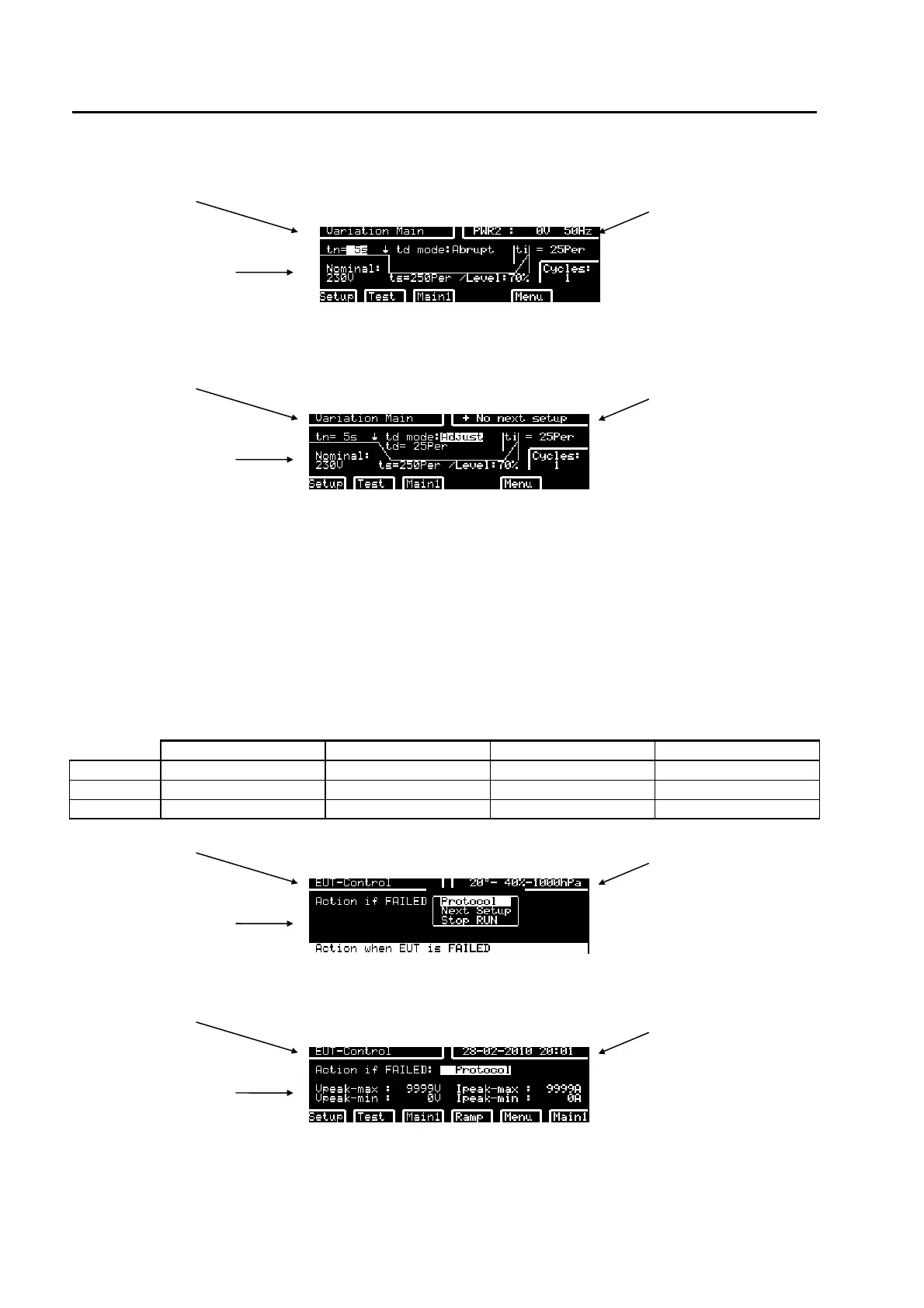

6.2.3.5 Variation Ramp
loaded test EUT power v, i
ramps at Variation
Sic
loaded test EUT power v, i
ramps at Variation
6.2.3.6 EUT Error control
EUT error information can come from three different sources:
1. From EUT failed input on the rear side of the TRA3000 F-S-D-V-C,
2. From the SURGE limiter and
3. From the current limiter
The error can initiate different actions:
Acoustic signal Remark in the report Message on display Abort the test
Protocol
x x
Next Setup
x x x
Stop Run
x x x x
EUT EUT power v, i +++
2. From the SURGE limiter
loaded test EUT power v, i
ramps at Variation
