Limits for SURGE peak measurements:
If selected limits are exceeded a message appears on the display. An error will be registered within a
limited time. (See diagram on next page).

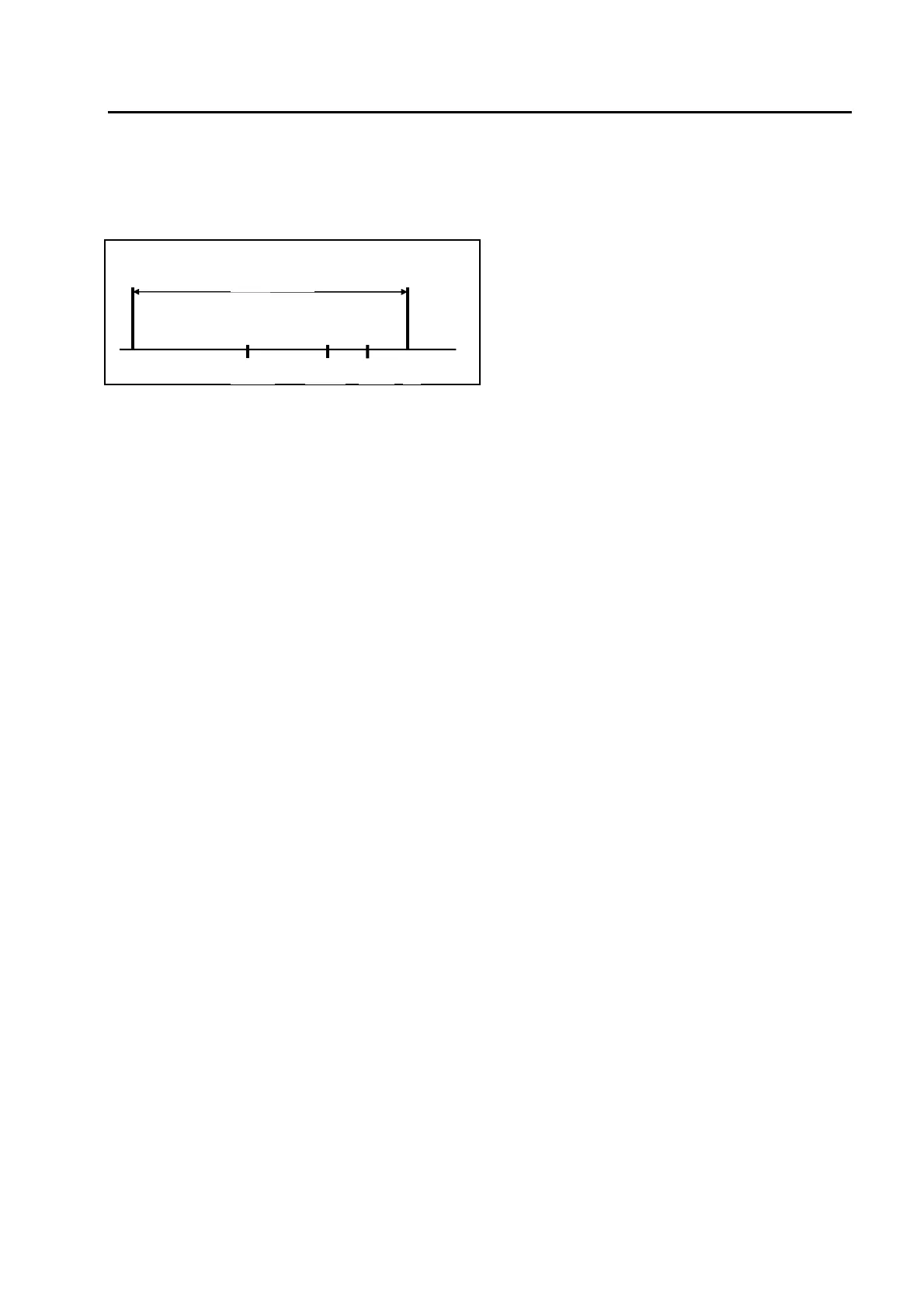

6.2.4.3 Time window for error message SURGE
At t-4 seconds, the charging of the SURGE capacitor for the next impulse number 2 starts.
t-2 seconds is the last possible opportunity to give an error message from impulse number 1 via the EUT
failed input on the rear side of the TRA3000 F-S-D-V-C.
At t-1second, the data of impulse 1 will be printed out and the error message will possibly be reset.
Repetition
t t-1st-2s
t-4s
Impulse 1
Impulse 2
