EMC-PARTNER TRA3000 S - EFT Test Operation; ESD Test Operation

TRANSIENT3000
91/162

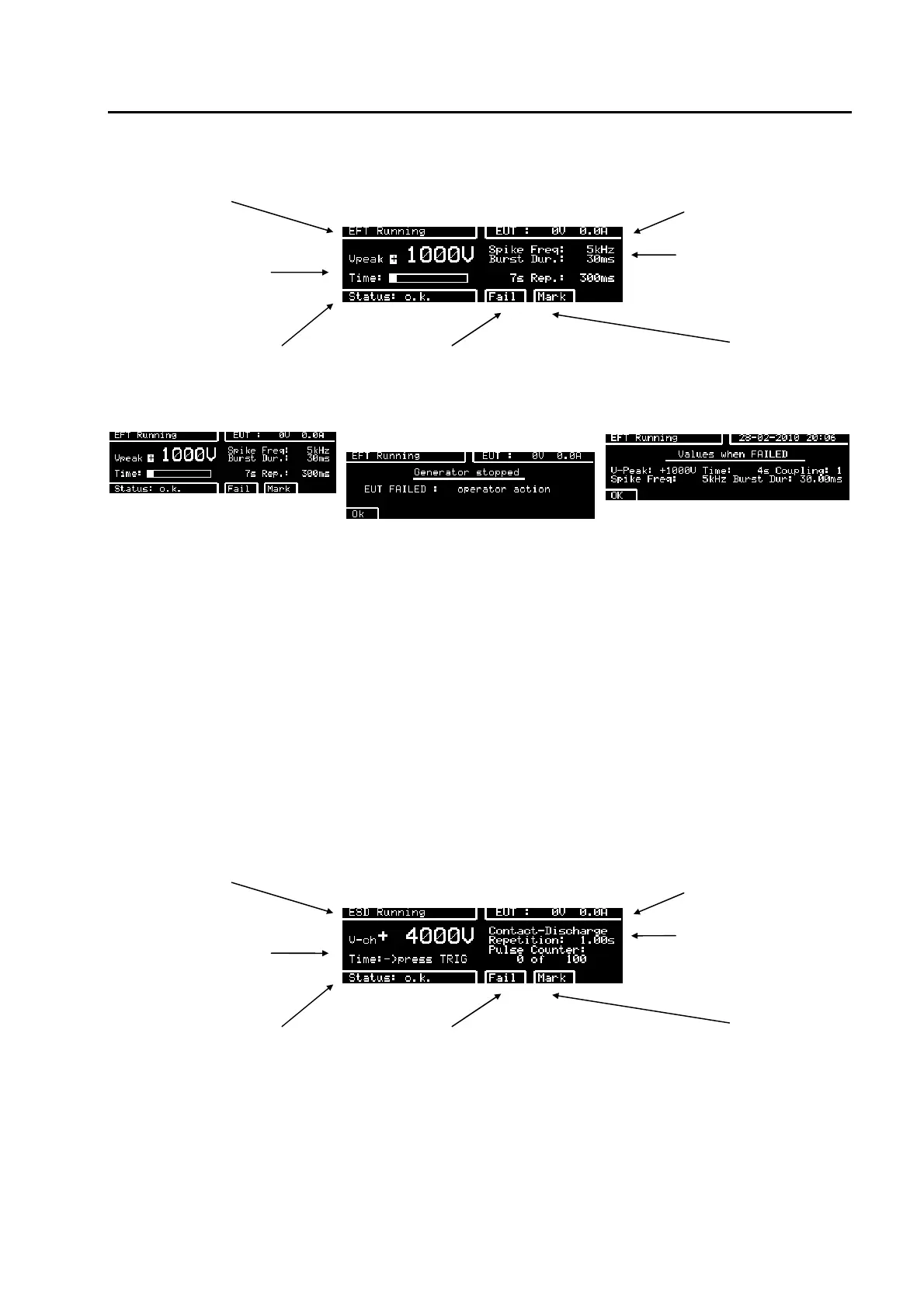

6.3.1.2 EFT operation
test in operation EUT power v, i
test voltage and time
bar. Black indicates the
actual test time carried
out
In operation mode the
values can be changed
without changing the
programmed test
indicates the status of the actual
test.
when the operator visually detects
a EUT failure, F4 can be pressed
and the status of the test turns to
"failed". Protocol shows " test
failed"
by pressing "Mark" the actual test
parameter will be written in the
protocol and showed on the
display at test end.
The values can be varied as follows within the given ranges:
1. Set the cursor to the parameter to changing
2. With the + or - buttons the values can be changed during operation
3. The protocol will be extended with a remark
6.3.1.3 ESD operation
In the RUN-mode the nominal voltage (V-peak) can be continuously varied using the „+“ and „-“ buttons.
This is very helpful for exactly determining the immunity level of the EUT. The manual change of the
nominal voltage will be noted in the report with a warning see example EFT.
The ESD discharge network must be connected to the outputs HV and Control.
6.3.1.3.1 Contact Discharge
Press "RUN" and contact EUT with the relay tip.
test in operation EUT power v, i
test voltage and what to
do
discharge mode
5 pulses of 20 are
made
indicates the status of the actual
test
when the operator visually detects
an EUT failure, F4 can be pressed
and the status of the test turns to
"failed". Protocol shows " test
failed"
by pressing "Mark" the actual test
parameter will be written in the
protocol and showed on the
display at test end.
The values can be varied as follows within the given ranges:
1. Set the cursor to the parameter to changing
2. Change with the + or - buttons the values during operation
To stop the running test, press the red RUN button.
