EMC-PARTNER TRA3000 S - DC Interruption and Magnetic Field Tests

TRANSIENT3000
94/162
"failed". Protocol shows " test
failed"
display at test end.
For the interruption and Variation test the EUT Power 1 input on the rear side of the TRA3000 F-S-D-V-C
must be connected to the public power mains. Connecting the TRANSIENT to the public power mains is
explained in Chapter 5.

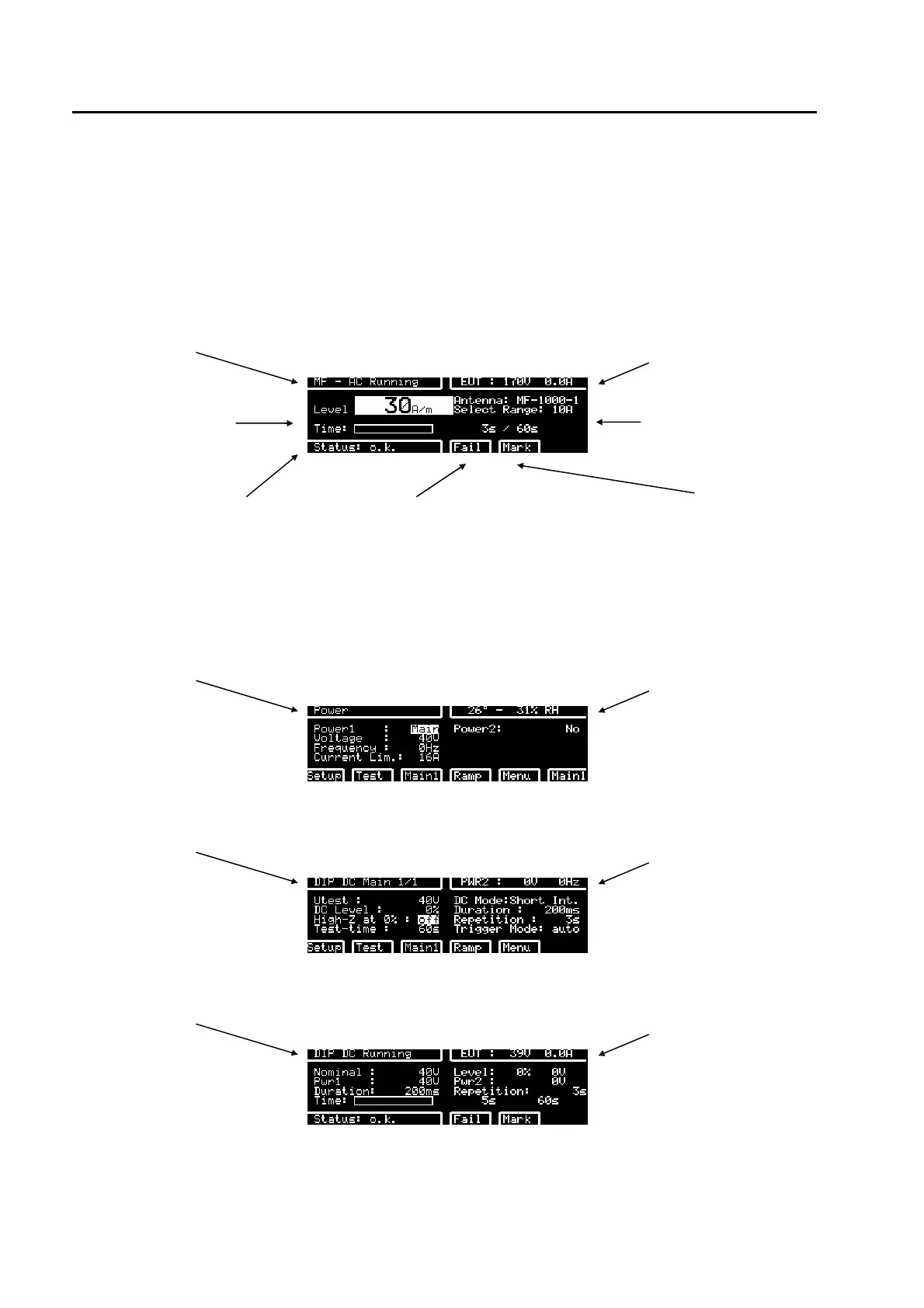

6.3.1.8 Magnetic Field
test in operation EUT power v, i
test voltage and test
time
type of induction coil to
use and current range
of the induction coil
indicates the status of the actual
test
when the operator visually detects
an EUT failure, F4 can be pressed
and the status of the test turns to
"failed". Protocol shows " test
failed"
by pressing "Mark" the actual test
parameter will be written in the
protocol and showed on the
display at test end.
6.3.1.9 Interruption on d.c.
test in operation EUT power v, i, +++
Voltage will be indicated
when on PWR1 on the
rear of TRA3000 a d.c.
voltage is connected
test in operation EUT power v, i, +++
Voltage will be indicated
when on PWR1 on the
rear of TRA3000 a d.c.
voltage is connected
Indicates the test
parameter
test in operation EUT power v, i, +++
Voltage will be indicated
when on PWR1 on the
rear of TRA3000 a d.c.
voltage is connected
Indicates the test
parameter
