EMC-PARTNER TRA3000 S - DIPS and Variation Test Operation

TRANSIENT3000
93/162
6.3.1.5 DIPS less than 1 period

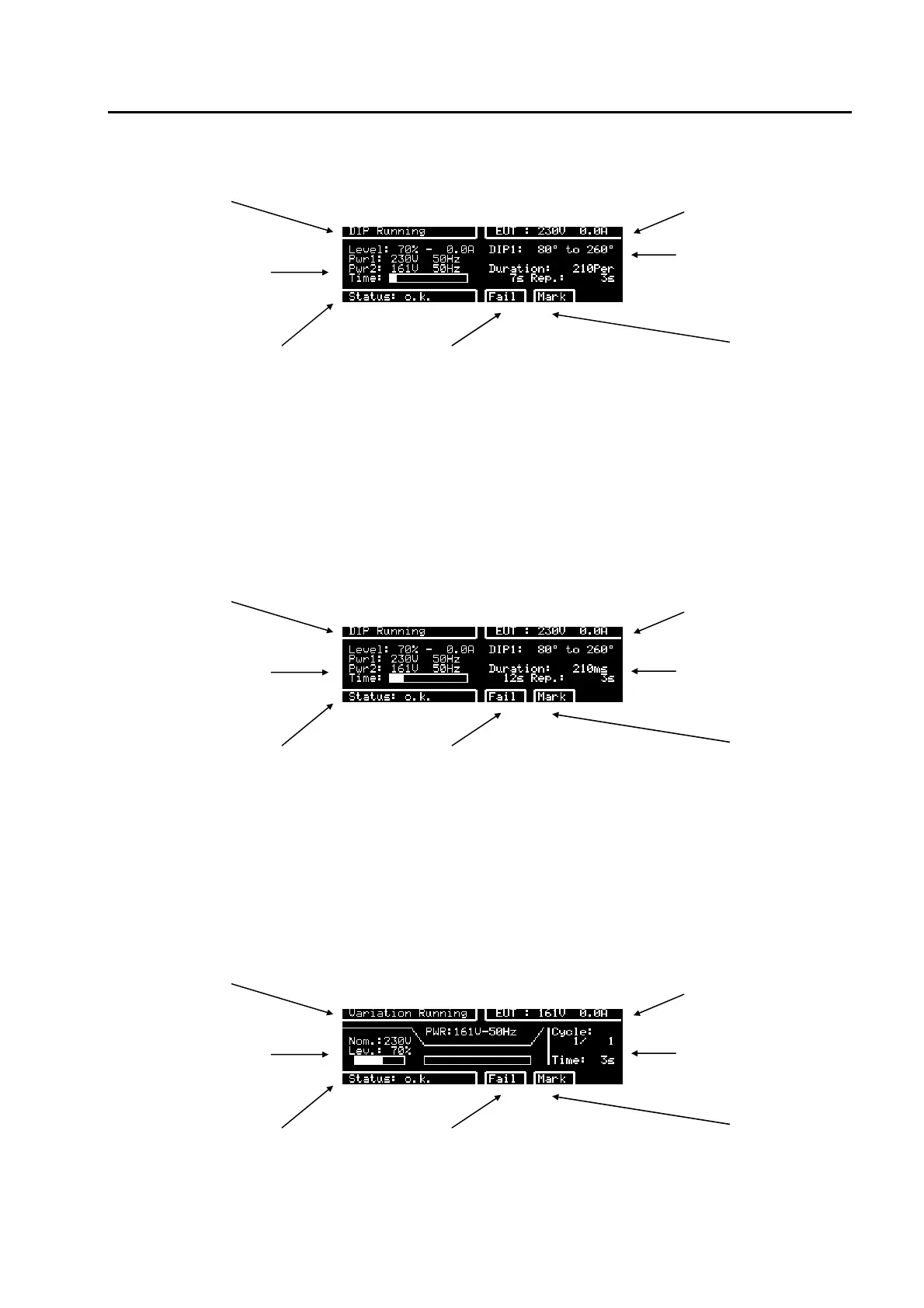

test in operation EUT power v, i
test voltage and test
time
half period dips
test parameter
indicates the status of the actual
test
when the operator visually detects
an EUT failure, F4 can be pressed
and the status of the test turns to
"failed". Protocol shows " test
failed"
by pressing "Mark" the actual test
parameter will be written in the
protocol and showed on the
display at test end.
For the interruption and Variation test the EUT Power 1 input on the rear side of the TRA3000 F-S-D-V-C
must be connected to the public power mains. Connecting the TRANSIENT to the public power mains is
explained in Chapter 5.
To stop the running test, press the RUN button.
6.3.1.6 DIPS more than 1 perode
test in operation EUT power v, i
test voltage and test
time
test parameter
indicates the status of the actual
test
when the operator visually detects
an EUT failure, F4 can be pressed
and the status of the test turns to
"failed". Protocol shows " test
failed"
by pressing "Mark" the actual test
parameter will be written in the
protocol and showed on the
display at test end.
For the interruption and Variation test the EUT Power 1 input on the rear side of the TRA3000 F-S-D-V-C
must be connected to the public power mains. Connecting the TRANSIENT to the public power mains is
explained in Chapter 5.
To stop the running test, press the RUN button.
6.3.1.7 Variation
test in operation EUT power v, i
test voltage and test
time
test parameter
indicates the status of the actual
test
when the operator visually detects
an EUT failure, F4 can be pressed
and the status of the test turns to
by pressing "Mark" the actual test
parameter will be written in the
protocol and showed on the
