User Manual Chapter 10
GFK-1742F Jan 2020
Introduction to Local Logic Programming 261
4.
Configure the CTL bit.
The sample Local Logic program shown on page 254 controls CTL01, which is used
to signal the Motion Program that a second has passed. The CTL bit must be
configured to be under Local Logic Control. To do this, access the CTL Bits tab in
hardware configuration. Select “CTL01 Config” and choose Local_Logic_Controlled.
The resulting CTL01 tab is shown in Figure 126.

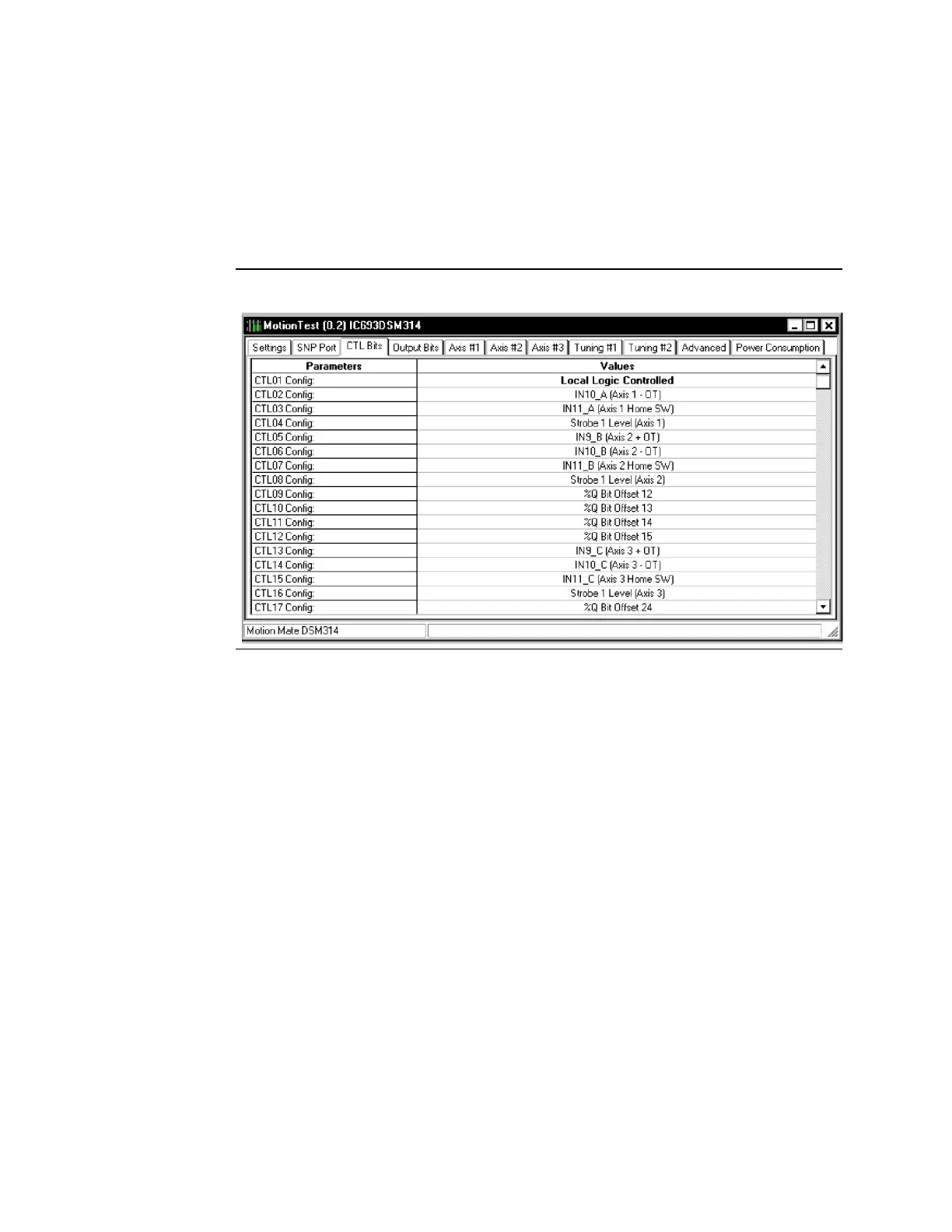

Figure 126: Hardware Configuration DSM314 CTL Bits Tab
5.
This completes the configuration changes necessary for the example. Close the
Hardware Configuration tool and save the folder. The link between the example
Local Logic program and the DSM314 module is now complete. You can now create
any required ladder logic and then perform a Check All on the programs.
