58 DCM00002 REV. 16
5.16 Sequence Menu Screen

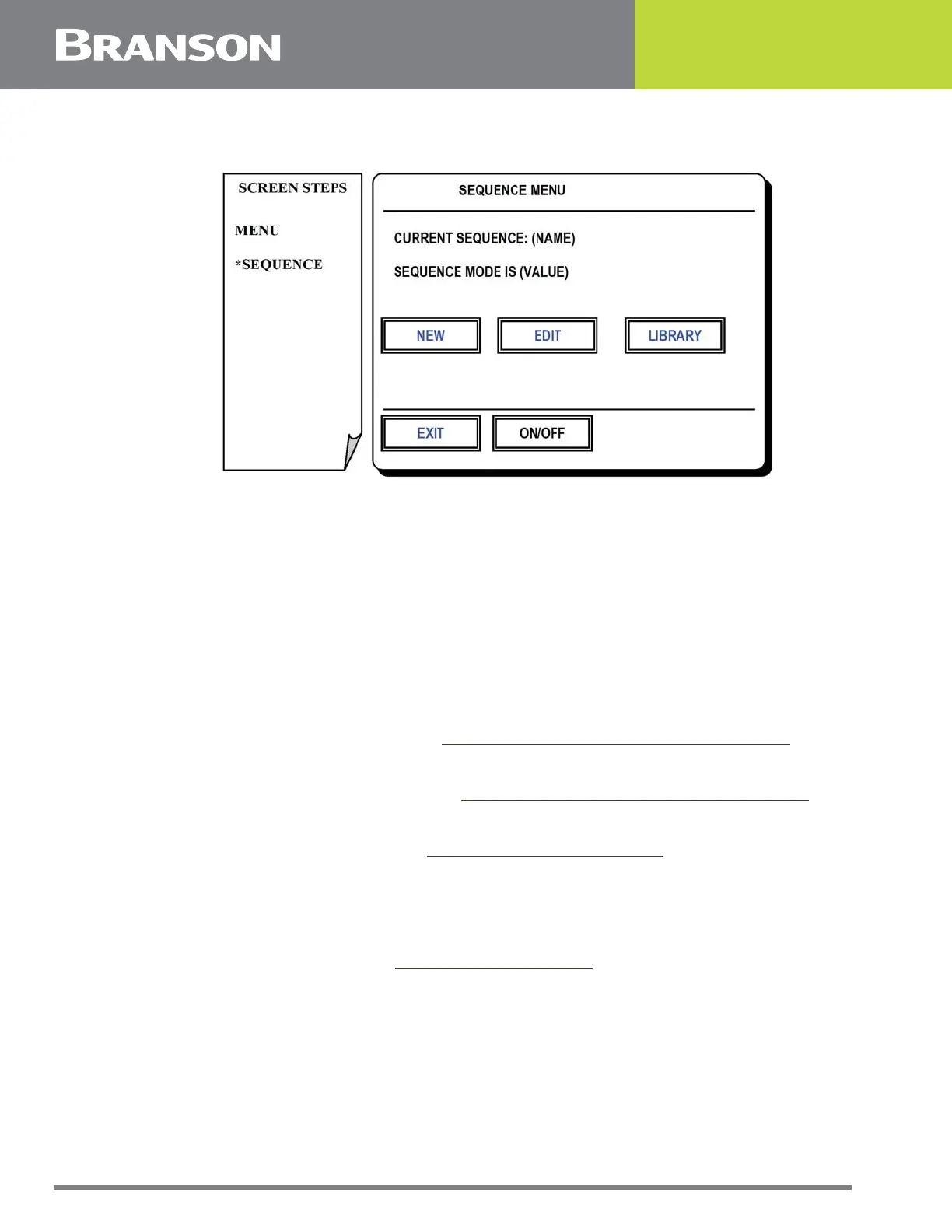

Figure 5.15 Sequence Menu screen
Sequence Menu Screen
A sequence is a series of grouped presets which are to be executed in a particular quantity
and order. Sequences are constructed using existing presets which have been previously
stored in the preset library. When the combination of presets and their desired cycle
quantities have been constructed they may be saved into the sequence library for future
recall.
*Not available on Ultrasplice 40 & ST 40 actuators.
Press one of the following options for this screen:
NEW
To create a new sequence name. See Figure 5.16 Sequence Name and Edit screen.
EDIT
To edit an existing sequence name. See Figure 5.16 Sequence Name and Edit screen.
LIBRARY
To access the sequence library. See 5.19 Sequence Library Screen.
ON/OFF
To toggle sequence mode on and off.
EXIT
To return to Menu Options. See 5.3 Menu Options Screen.
