5.5 Weld Mode Screen

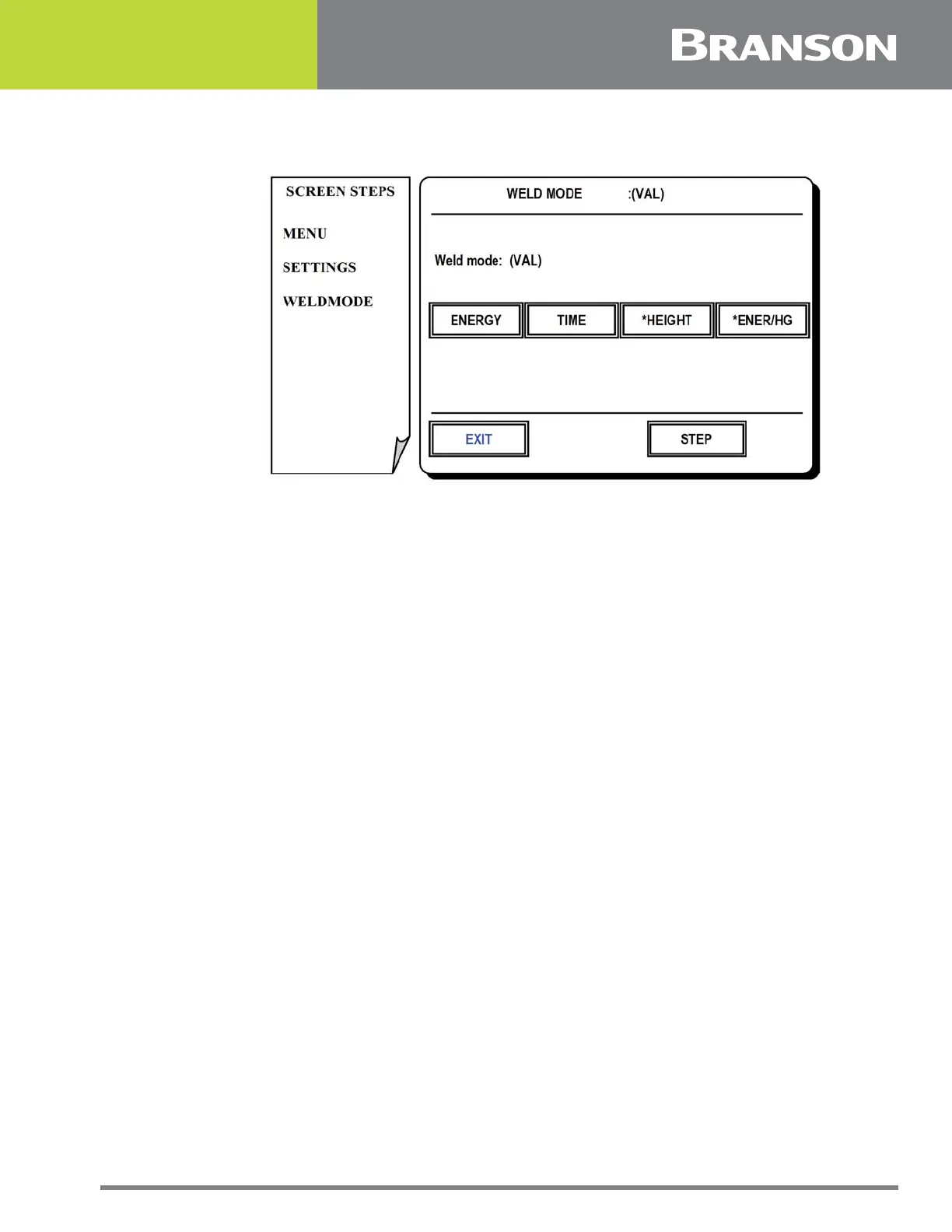

Figure 5.4 Weld Mode screen
Weld Mode Screen
From this screen the weld mode may be selected. The weld mode dictates which weld
setting variable will serve as the cutoff limit for the delivery of ultrasonic energy during
each weld cycle.
Press one of the following options for this screen:
ENERGY
To weld in energy mode. The system delivers ultrasonic energy until a predetermined
amount of energy (joules) is dissipated.
TIME
To weld in time mode. The system delivers ultrasonic energy for a predetermined amount
of time (sec).
HEIGHT*
To weld in height mode. The system delivers ultrasonic energy until the tooling reaches a
predetermined height (mm).
*Available only on Ultraweld 20, Ultraweld 40, MTS 20, & ST 40 actuators equipped with a height encoder which
is set to on.
ENERGY W/HEIGHT COMPENSATION*
To weld in energy with height compensation mode. The system first delivers the
predetermined amount of energy. If after the energy is delivered the welded part size
does not fall within the height (mm) window, the system will deliver as required up to
300% more energy in order to achieve a mid window weld height.
*Available only on Ultraweld 20, Ultraweld 40, MTS 20, & ST 40 actuators equipped with a height encoder which
is set to on.
