70 DCM00002 REV. 16
5.27 Low Air Alarm Screen

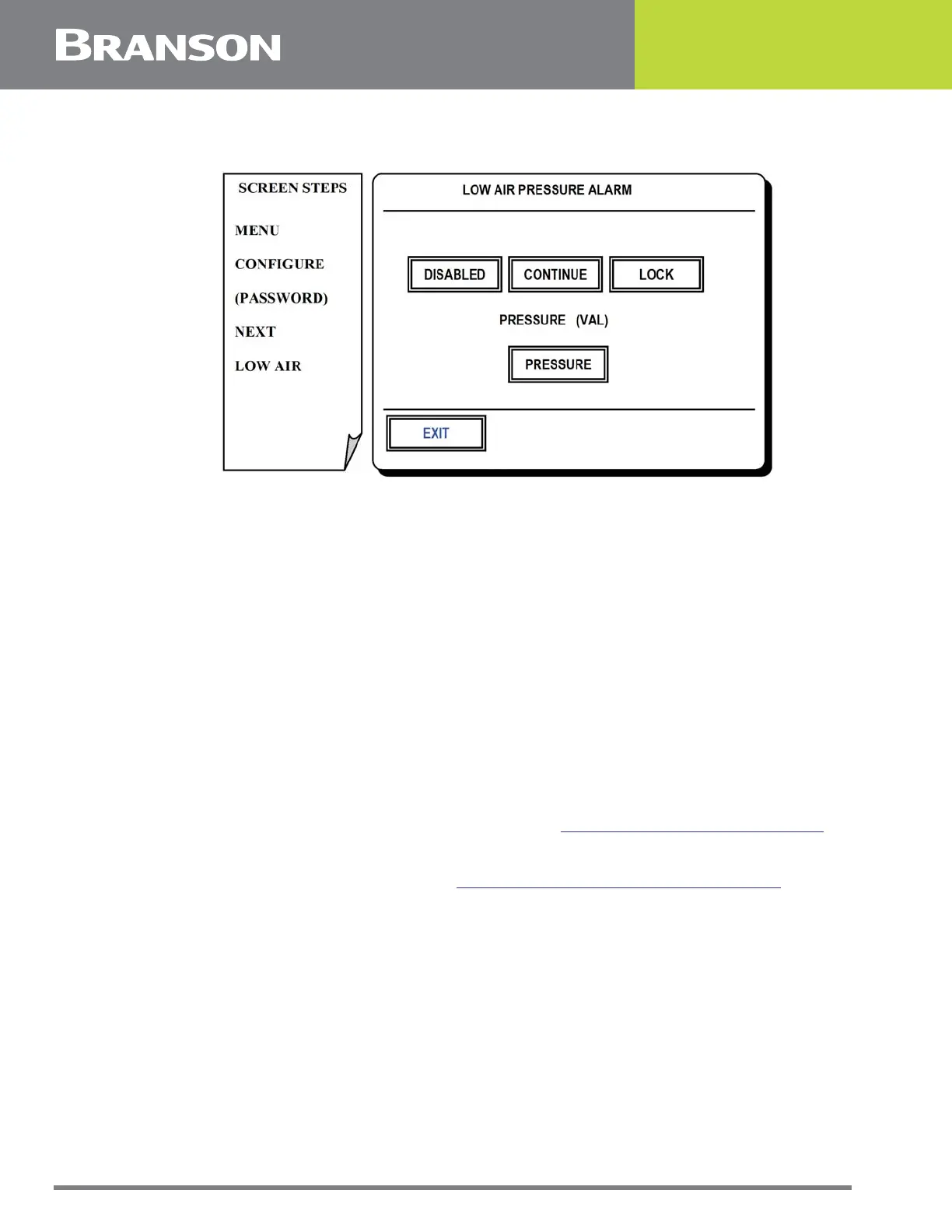

Figure 5.26 Low Air Alarm screen
Low Air Alarm Screen
This screen is for setting low air line pressure alarm options.
Press one of the following options for this screen:
DISABLED
To disable low pressure alarm. Select this setting if the system is not equipped with a
pressure switch.
CONTINUE
To finish weld after sensing low pressure.
LOCK
To not allow weld after sensing low air pressure.
PRESSURE
To set the alarm threshold for low line pressure. See 5.35 Typical Keypad Entry Screen.
EXIT
To return to System Configuration. See 5.24 System Configuration Screen (Next).
