Section 12 • Configuration Screen
I/O Conguration
If any additional I/O cards are added to the MicroVission,
this is where these cards are enabled for use by its algo-
rithms. Some features of the MicroVission will not be
available unless specic expansion cards are selected,
see Figure 12-9.
• Analog Input 1: Enables the optional Analog Input
card 1.
• Digital Input/Output 1: Enables the optional Digital
Input/Output card 1.

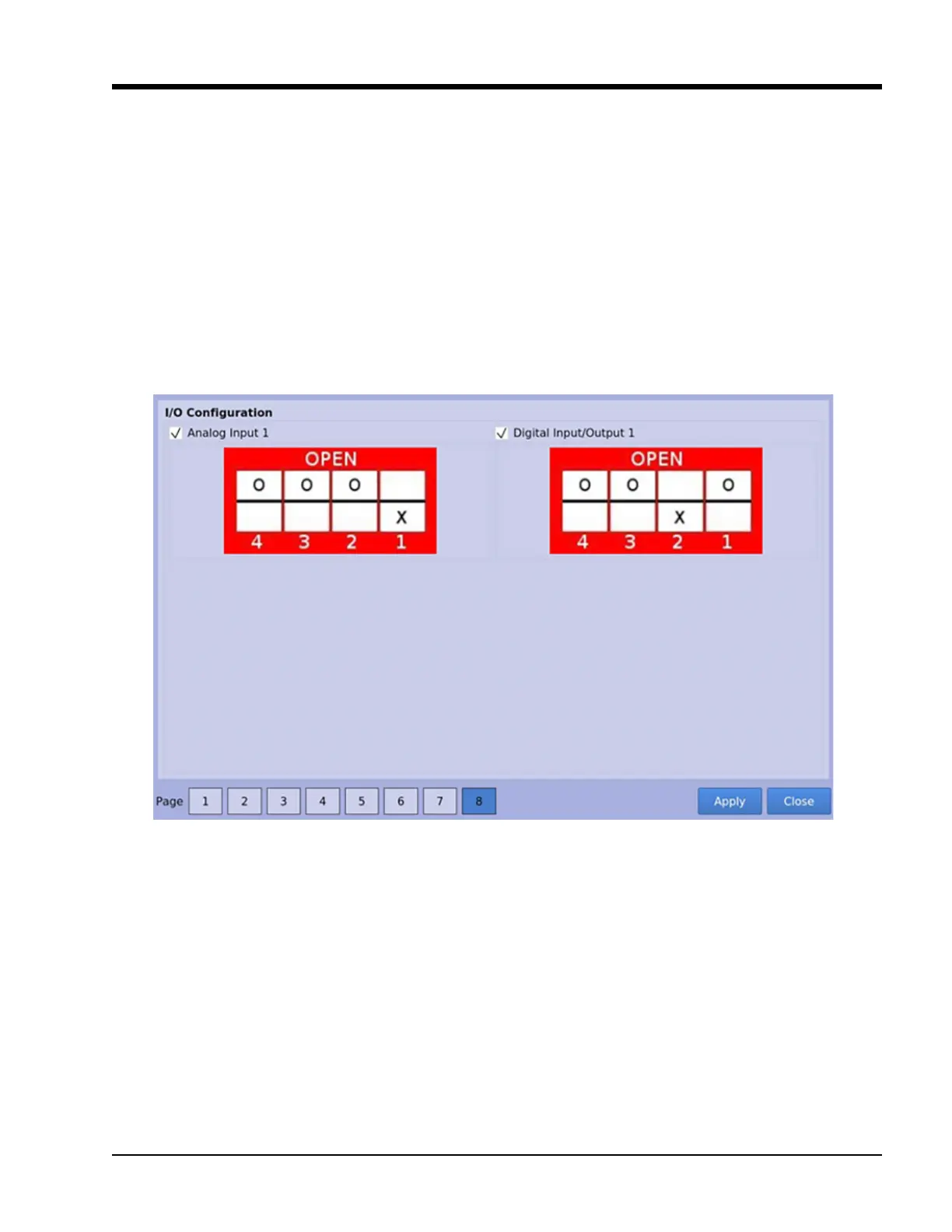

Figure 12-9. Conguration Screen - I/O Conguration
