Bottom Status Bar
The bottom status bar gives the operator easy access to
some basic functions and information. See Figure 3-5.
Status Bars
There are two status bars. The rst status bar displays
the information about scheduled maintenance activi-
ties. The second status bar displays all types of currently
active safety information like warnings, inhibits, alarms
and trips in their respective colors. All warning messages
can be collectively seen in a pop-up window. This pop-
up is displayed when a warning condition is present and
status bar for displaying warnings is pressed. See Figure
3-6.
At the bottom of the status bars, operator can view the
following information from left to right:
• Current User (if any is logged in)
• Compressor Run Hours
• Current Date
• Current Time
At the right side of the status bars, operator can view the
following function buttons:
Maintenance Button
Pressing the Maintenance button will give the operator
access to the maintenance charts and sign off tables.
User Access Button
This button takes the operator to the login screen to cre-
ate additional users or log in.
Log off Button
Pressing the log off button logs off the current user if any
are logged in.
Help Button
Pressing the help button takes the operator to the help
screen where the operation and service manual can be
read and access to the program information is also pro-
vided.

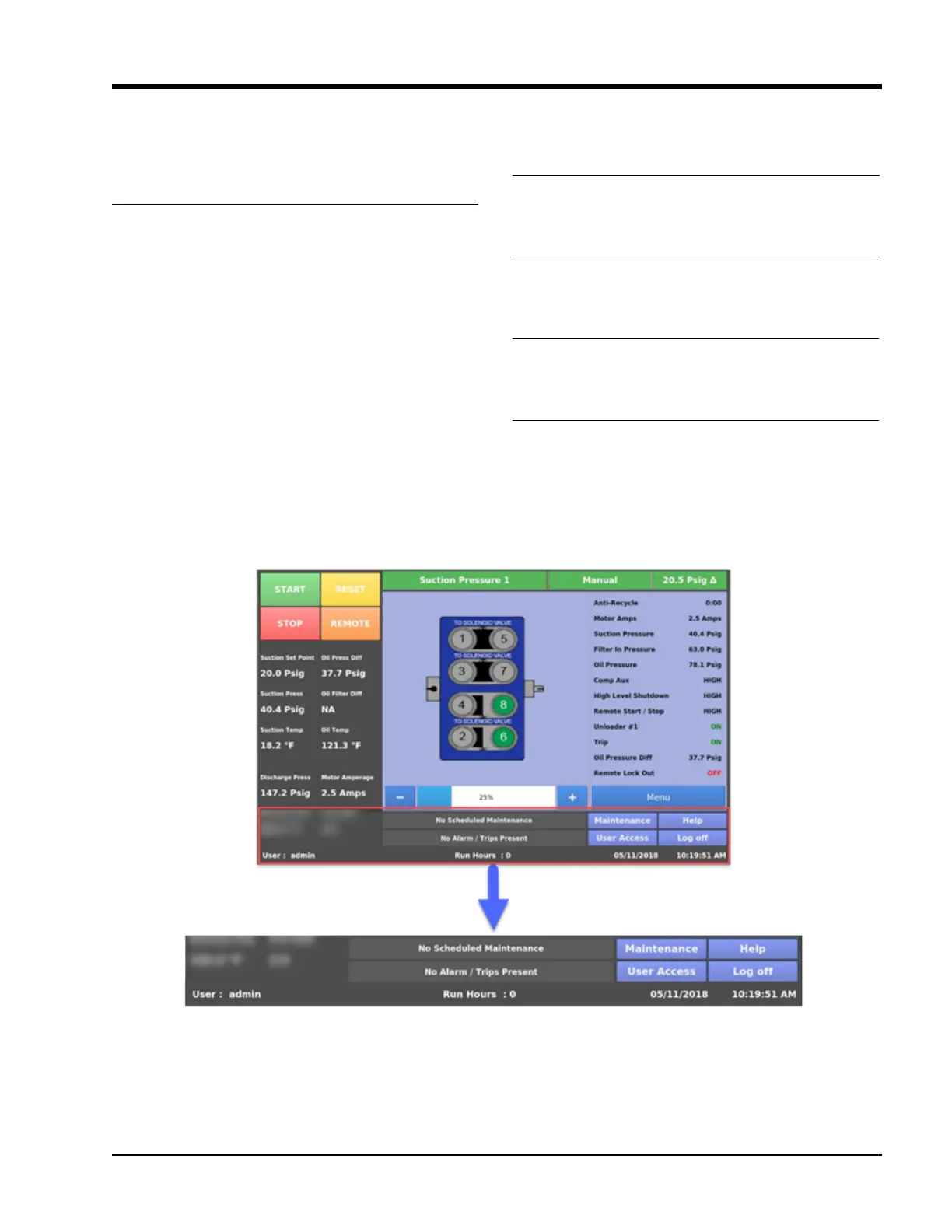

Figure 3-5. Bottom Status Bar
