Emerson Vilter MicroVission - Wiring Methods; Figure 1-5. Correct Transformer Wiring Method; Figure 1-6. Incorrect Transformer Wiring Method

1 – 3
Section 1 • Installation Recommendations
MicroVission Controller • Operation and Service Manual • Emerson • 35391MV 1.3

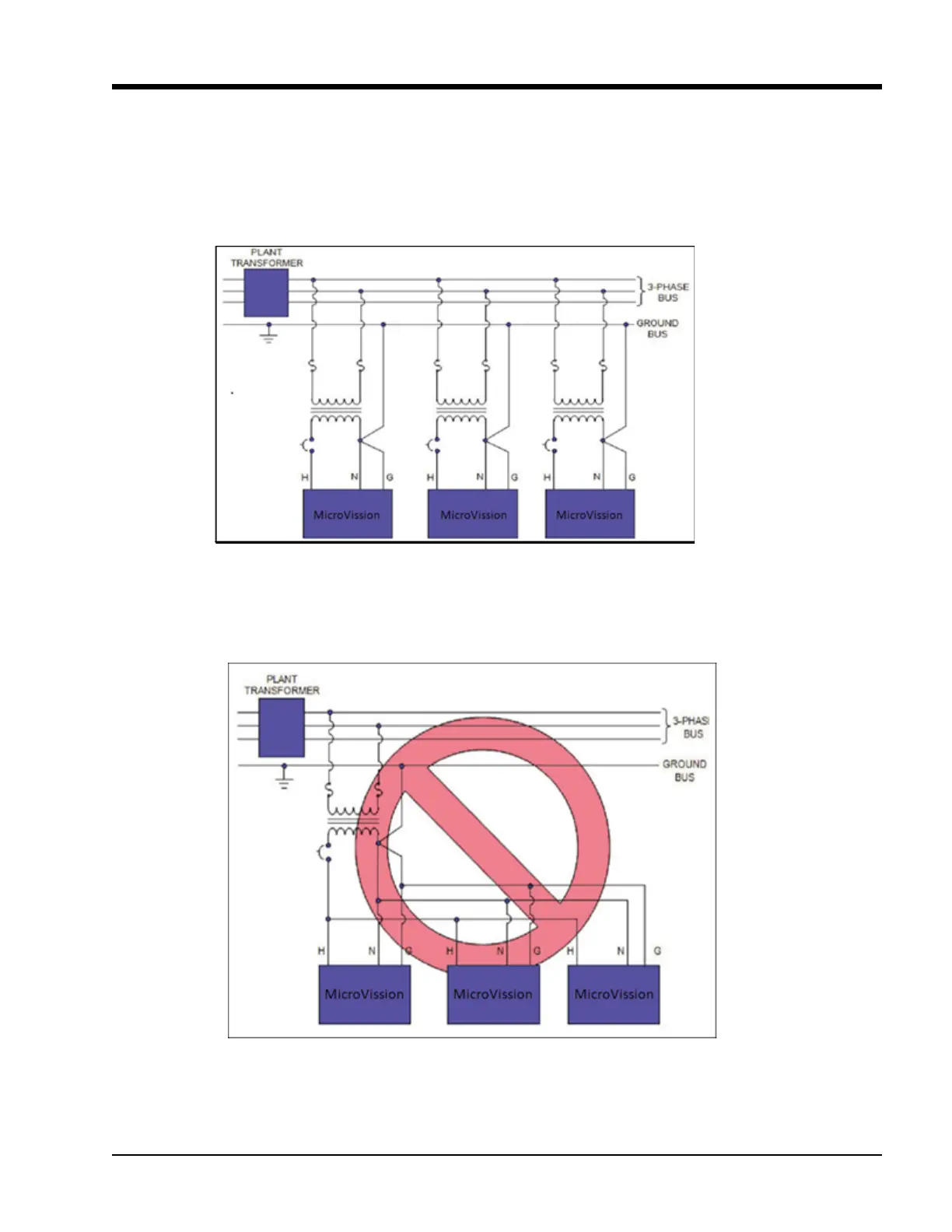

Figure 1-5. Correct Transformer Wiring Method
Wiring Methods
Each MicroVission panel should have its own individual
control transformer, see Figure 1-5: Correct Transformer
Wiring method and Figure 1-6: Incorrect Transformer
Wiring Method.
Figure 1-6. Incorrect Transformer Wiring Method
