Process Temperature or Pressure
The Process Control tab on this page will display either
Process Temperature or Process Pressure depending
on the “Process Control” type selected by the operator
in the Conguration screen. For more information, see
Conguration section.
The tab is divided into two sections, Device Calibration
and Channel Calibration with Default Devices and
Custom Device as well as Offset and Range Calibration
features as described for the standard Pressure and
Temperature Inputs.

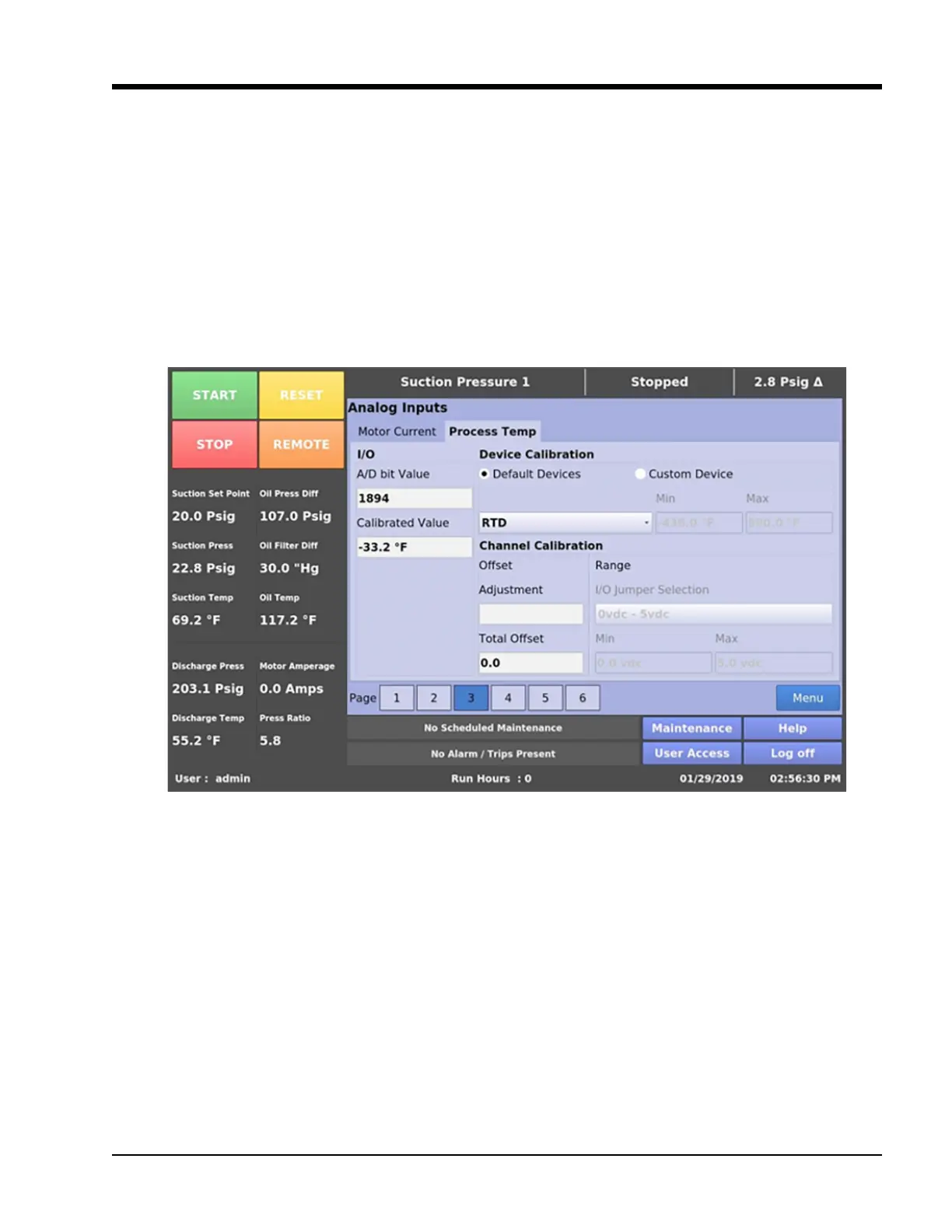

Figure 8-10. Instrument Calibration Screen Page 3 – Analog Inputs (Process Temperature)
