Parameters Bar
The parameters bar displays the common operational
parameters that you want to view to understand the
current compressor status at a glance. In addition to dis-
playing the information, it also provides the operator ac-
cess to critical buttons such as “Stop” & “Start buttons
apart from “Reset” & “Remote” buttons. See Figure 3-3.
Start Button
When pressed, a start dialog box that gives the operator
several run options will appear: Auto, Manual or Remote.
See Figure 3-4.
Stop Button
When pressed, stops the compressor in all cases.
Reset Button
When pressed, clears any current alarms, trips and status
messages that may be displayed on the information bar.
NOTE
If the condition that created the alarm, trip or status
message still exits after pressing the “Reset” button, the
message will reappear on the information bar.
Remote Button
When pressed, activates/de-activates the remote lock
out option. This is a safety feature that prevents any ex-
ternal devices from assuming control and starting the
compressor. The operator can also release the remote
lock out by pressing the “Start” button and then the “Re-
mote” button when the start dialog box appears.

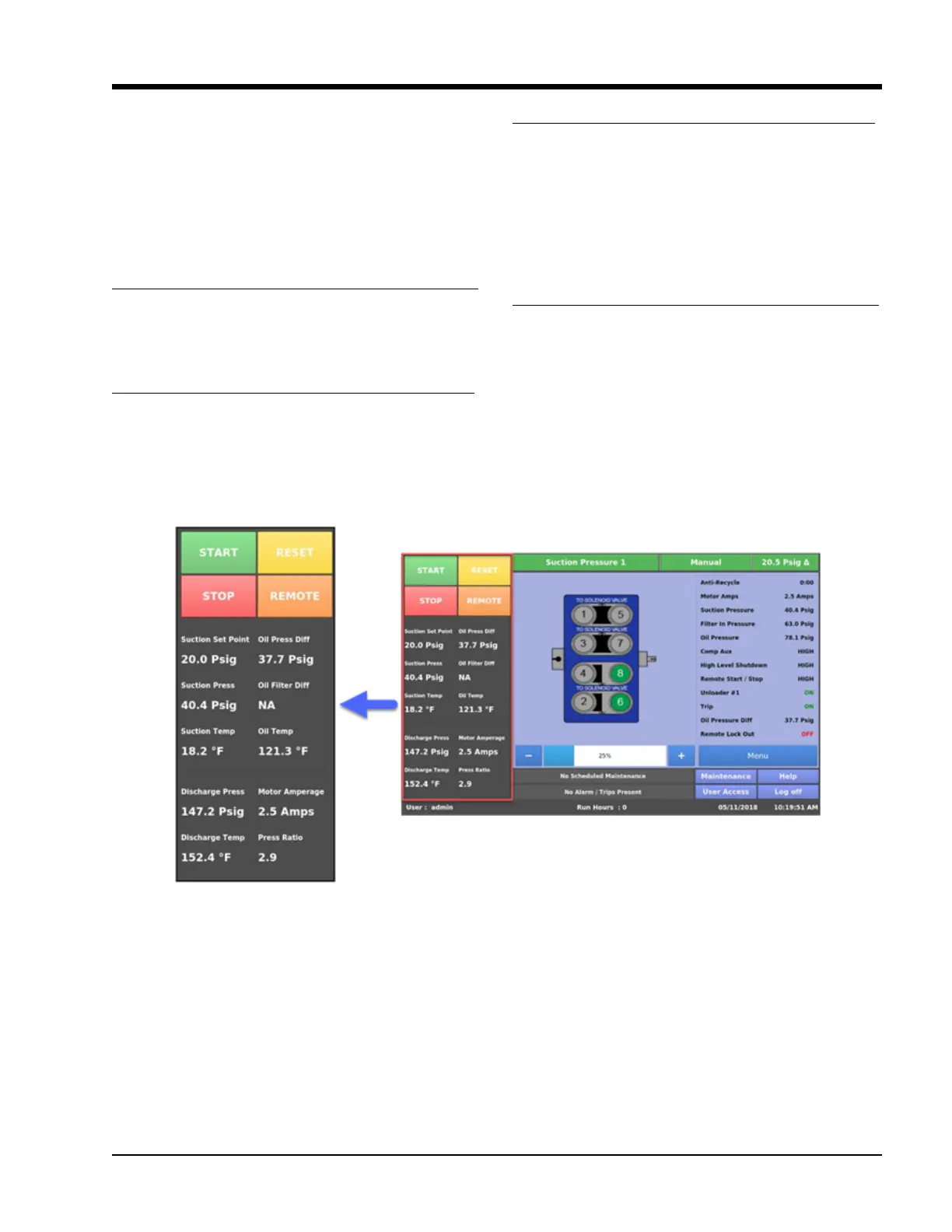

Figure 3-3. Parameters Bar
