Section 3 • Main Screen
MicroVission Controller • Operation and Service Manual • Emerson • 35391MV 1.3
Splash Screen
The Splash screen is the dynamic portion of the screen
that will change as the operator navigates through the
MicroVission panel screens.
The Splash screen area displays the status of loaded and
unloaded cylinders through image, an horizontal blue
progress bar from 0% to 100% to indicate the current ca-
pacity utilization of the compressor, the congurable pa-
rameters as per settings on Page 4 of the Conguration
screen, and the Menu button. Operator can navigate to
the Menu screen by pressing Menu button which in turn
will allow navigation to other screens on MicroVission.
See Figure 3-7.

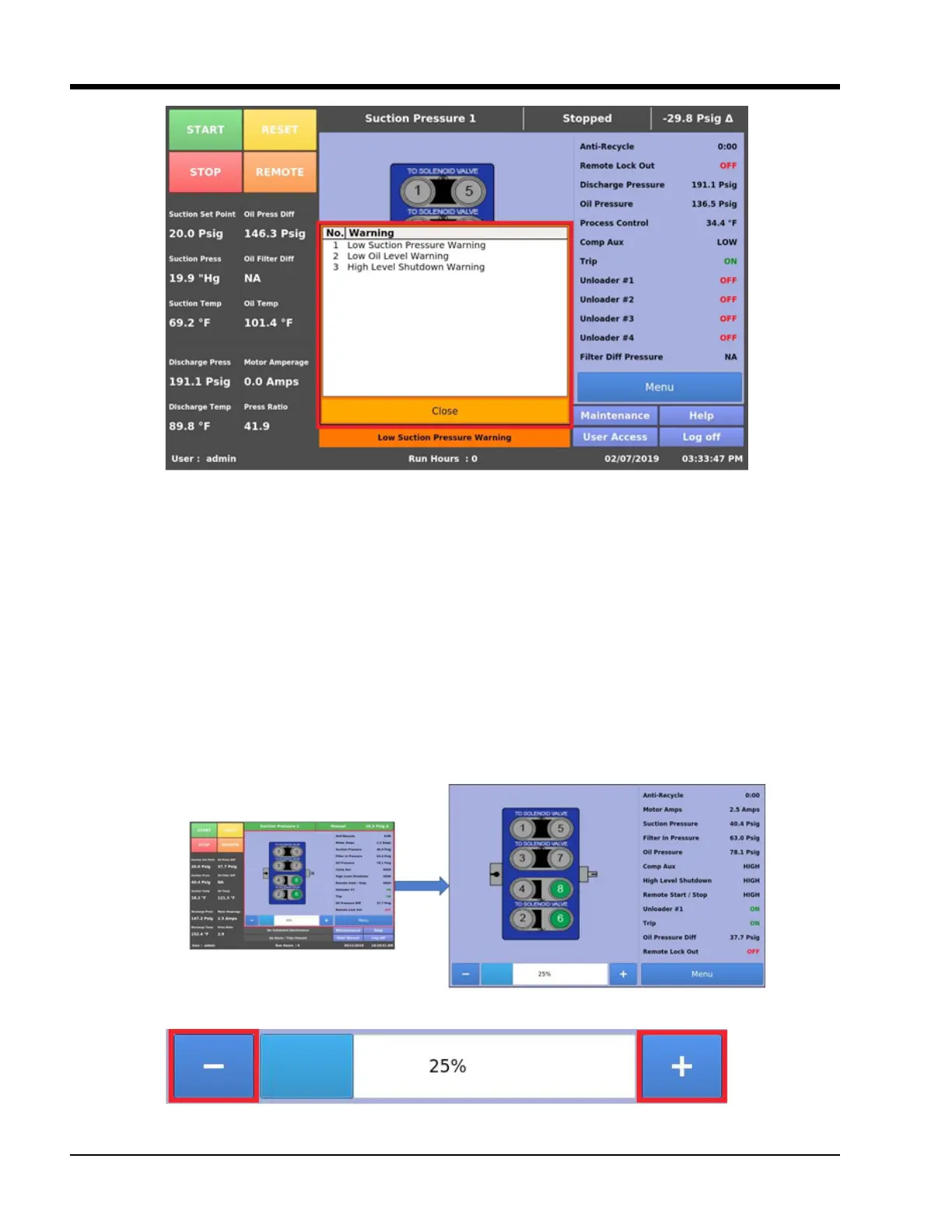

Figure 3-6. Warning Pop-up Window
Manual Run Mode Buttons
When operator runs compressor in Manual run mode,
two buttons “+” (plus) and “-” (minus) will be available
on display along both sides of progress bar, See Figure
3-8. The ”+” button & “-“ button will allow the operator
to increase and decrease compressor capacity respec-
tively in pre-dened steps as per No. of Cylinders and No.
of Unloaders settings of Conguration screen.
NOTE
Once Compressor is Loading or Unloading a step,
next step would be allowed to Load or Unload by
pressing “+” or “-“ button respectively only after 5
seconds.
Figure 3-7. Splash Screen
Figure 3-8. Manual Run Mode Buttons and Progress Bar
