Appendix D • Compressor Sequencing Setup
Final Steps for Setting up Compressor
Sequencing
The MicroVission panels now need to be placed into Seq
Standby mode for the compressor being allowed to se-
quence them. Reference Figure D-14.
At the MicroVission panel Comp2 and Comp3, press the
green UNIT START button, then press the Seq Stand-
By button. This will place Comp2 and Comp3 into seq
standby mode to allow the MicroVission panel to start
in sequencing.

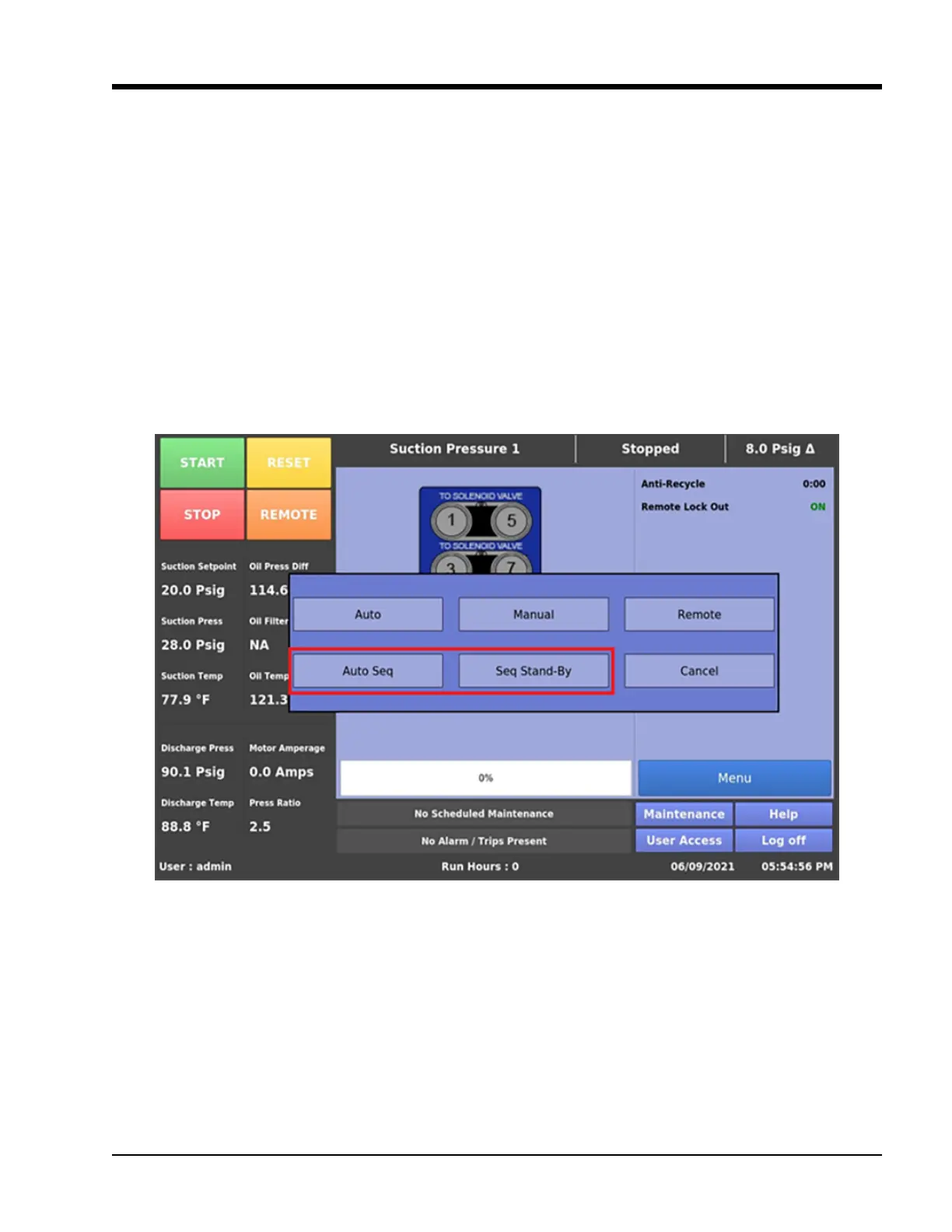

Figure D-14. Placing Compressors in Auto Seq or Seq Stand-By
You will see the top banner display “Auto Seq Stand-By”
to signify that the MicroVission panel is now in ready to
run state showing status green checked mark. Reference
Figure D-15. Then press the green UNIT START button,
then press the Auto Seq button on Comp1 to start the
compressor sequencing.
