Emerson Vilter MicroVission - Analog Inputs - Pressure

8 – 2
Section 8 • Instruments Calibration
MicroVission Controller • Operation and Service Manual • Emerson • 35391MV 1.3

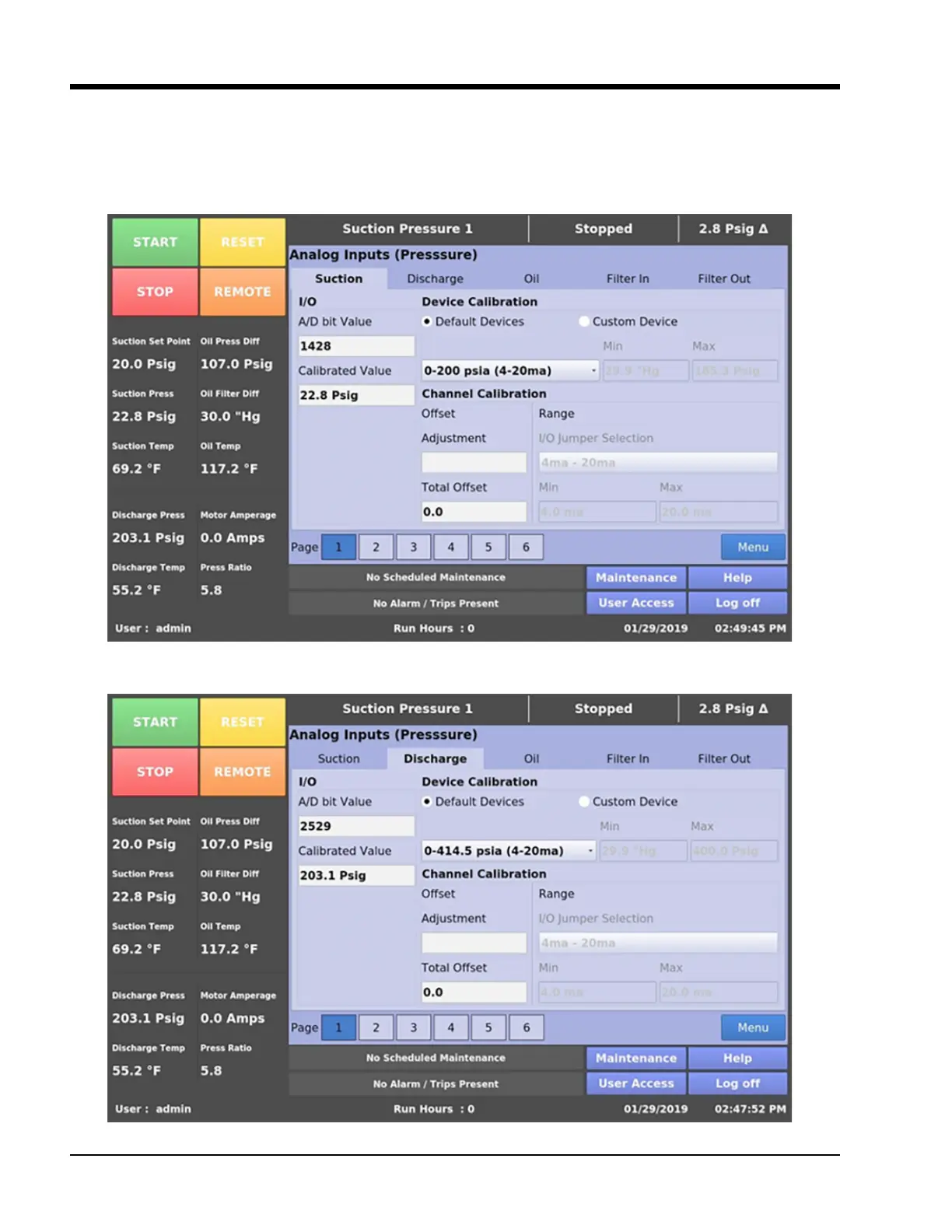

Figure 8-2. Instrument Calibration Screen Page 1 – Analog Inputs (Discharge Pressure)
Figure 8-1. Instrument Calibration Screen Page 1 – Analog Inputs (Suction Pressure)
Analog Inputs – Pressure
On the Instrument Calibration Screen Page 1, the opera-
tor can calibrate following pressure sensors:
• Suction Pressure
• Discharge Pressure
• Oil Pressure
• Filter In
• Filter Out
