Replace SD card
1. Power down the MicroVission panel.
2. Remove old SD card and install new SD card.
3. Power up the MicroVission panel.
Re-Enter Operating Setpoints And Conguration
Information
1. Logon as “admin” user (default password = admin).
2. Re-enter all values in Conguration screen. The
most vital thing is to re-enter the correct No.
of Cylinders and No. of Unloaders. Re-enter the
Compressor Runtime on page 2 of the congu-
ration screen. Ensure you re-select any optional
boards that are installed, and apply those additions.
3. Re-enter all Control Limits.
4. Re-enter all Alarm and Trip setpoints. The most vital
thing is - under the “Delay” tab, enter 5 seconds for
all alarm and trip delays.
5. Re-enter all Timer Setpoints.
6. Re-enter all Instrument Calibration offsets for pres-
sure transducers. Insure that the Suction Pressure
transducer range is properly selected (typically
0-200psia 4-20mA) – but double check proper
setting.

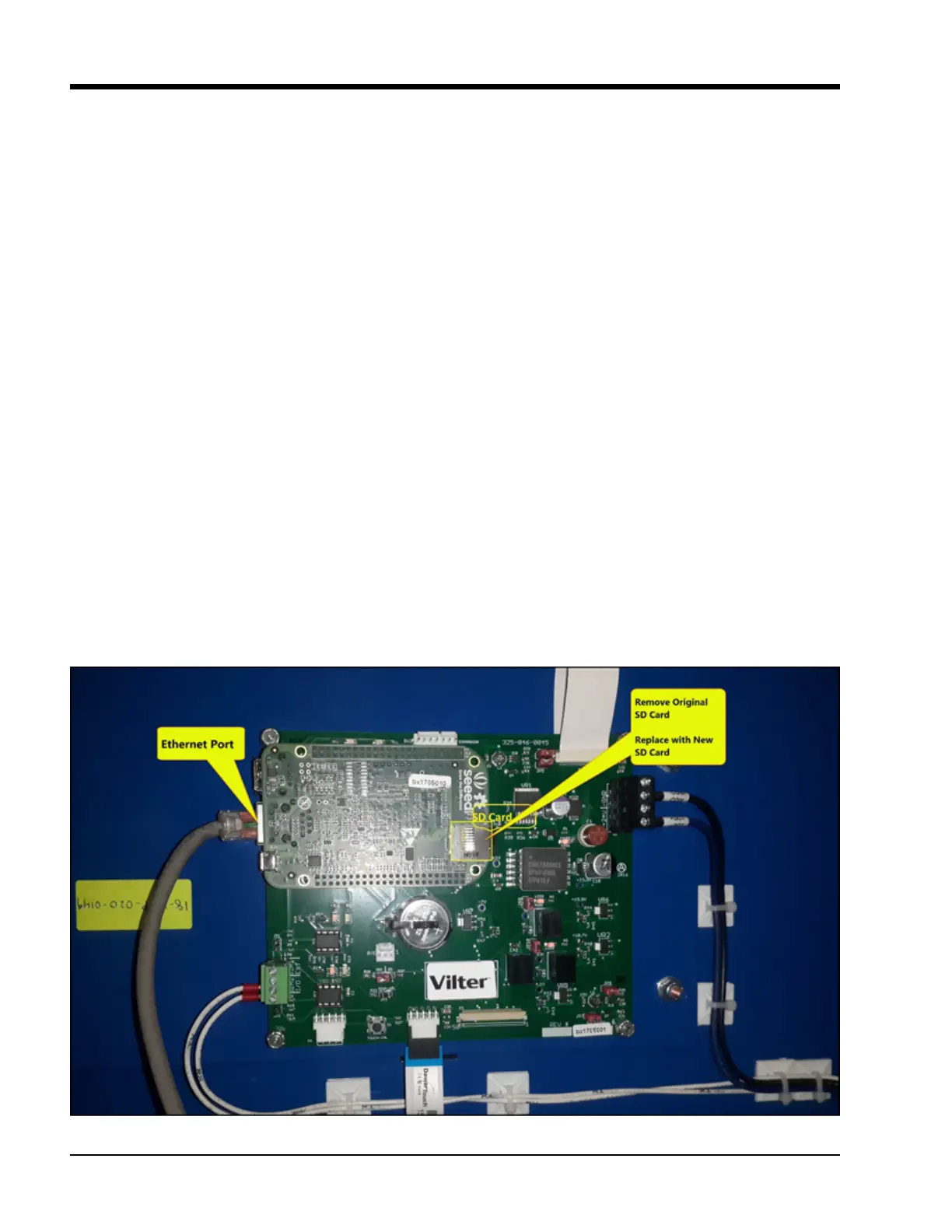

Figure 13-4. SD Card Replacement
