Scalable Control
• Minimum Input / Maximum Input:
• These setpoints dene minimum and maximum
Input range for a congured active input.
• Minimum Output / Maximum Output:
• These setpoints dene minimum and maximum
output. The Auxiliary output produces a linear value
based on these settings.

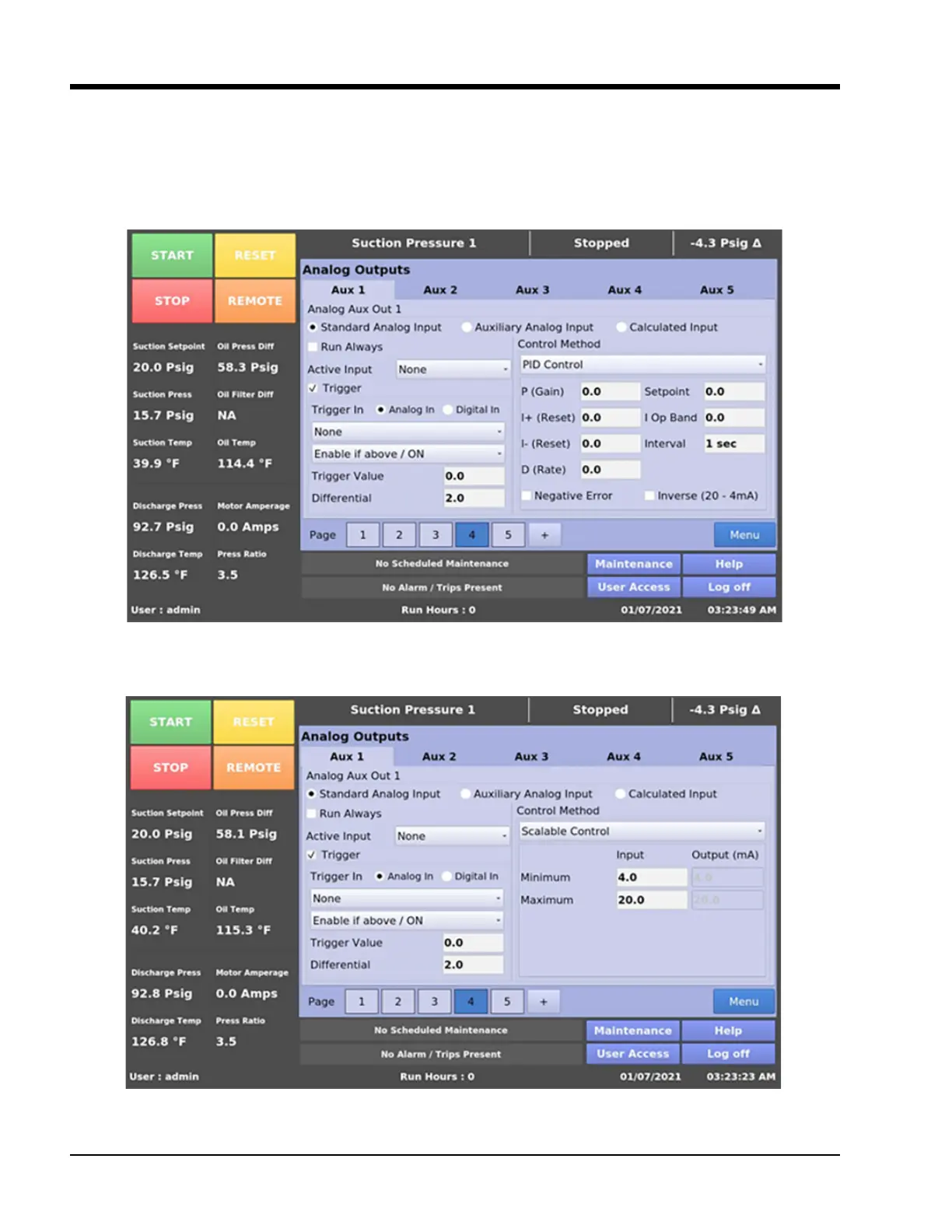

Figure 20-6. Auxiliary I/O Screen – Analog Outputs PID Control (Page 4)
Figure 20-7. Auxiliary I/O Screen – Analog Outputs Scalable Control (Page 4)
