5 – 6
Section 5 • Compressor Control
MicroVission Controller • Operation and Service Manual • Emerson • 35391MV 1.3
• Pulldown Start Pressure: If Pulldown Operation is
running, then the Auto Cycle functionality will use
Pulldown Start Pressure (Shown in Figure 5-5) in-
stead of Setpoint 1 Start Pressure to start the com-
pressor on Auto Cycle.
• Pulldown Stop Pressure: If Pulldown Operation is
running, then the Auto Cycle functionality will use
Pulldown Stop Pressure (Shown in Figure 5-5) instead
of Setpoint 1 Stop Pressure to stop the compressor
on Auto Cycle.

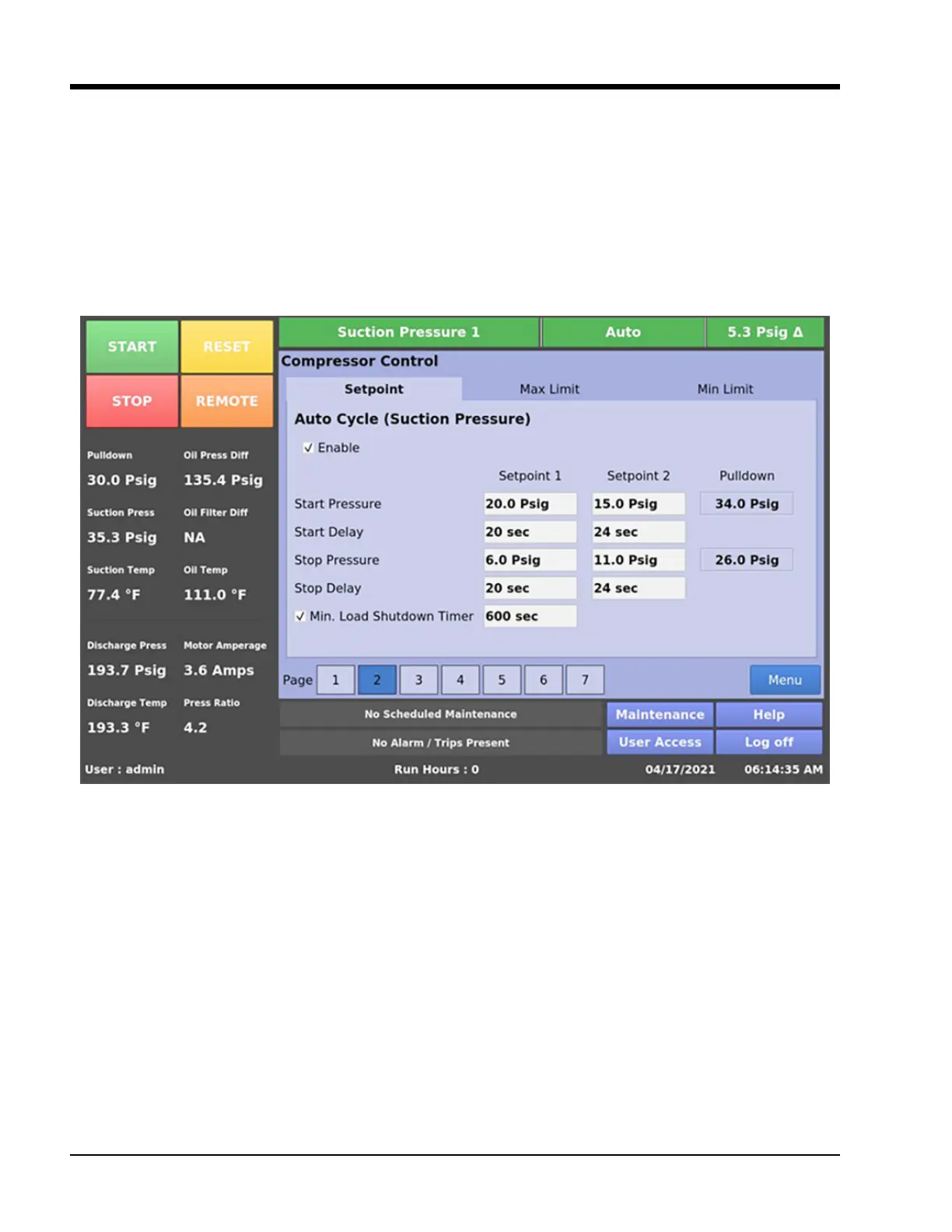

Figure 5-5. Compressor Control Screen - Auto Cycle (Suction Pressure) with Pulldown Running
