Section 8 • Instruments Calibration
MicroVission Controller • Operation and Service Manual • Emerson • 35391MV 1.3
Analog Inputs – Temperature
On the Instrument Calibration Screen Page 2, the opera-
tor can calibrate following temperature sensors.
• Suction Temperature
• Discharge Temperature
• Oil Temperature

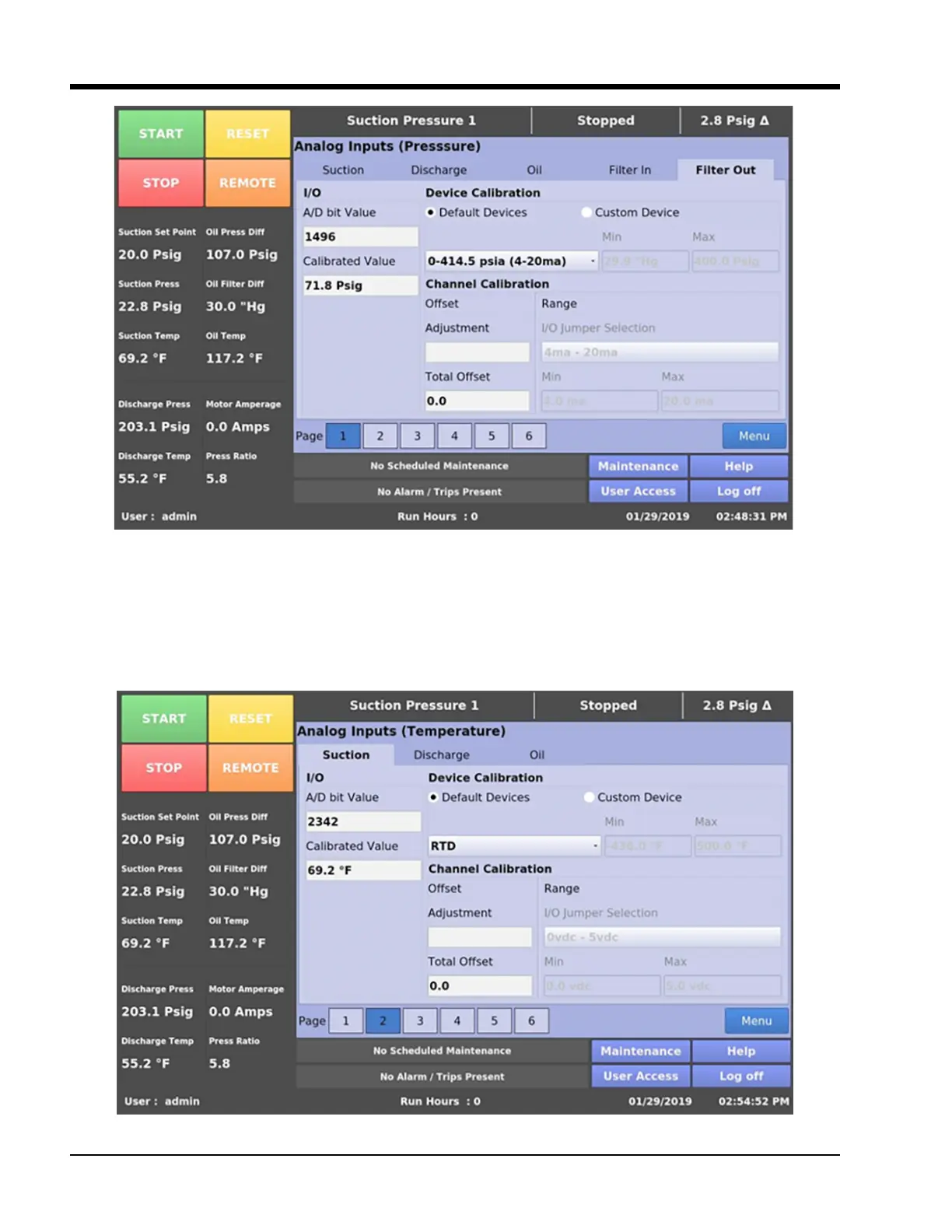

Figure 8-5. Instrument Calibration Screen Page 1 – Analog Inputs (Filter Out Pressure)
Figure 8-6. Instrument Calibration Screen Page 2 – Analog Inputs (Suction Temperature)
To Next Page
