multi N/C 2100S Function and setup
17
3 Function and setup
3.1 System design
The analyzer multi N/C 2100S is a compact laboratory device with permanently installed
main components. The complete measuring design further includes accessory parts and
reagents which must be connected to the analyzer or made ready prior to a
measurement.
The control of the analyzer and the analysis of the measurements takes place via the
control and analysis software multiWin.
All components of the analyzer to be operated or serviced by the user can be reached via
2 doors at the front, the left-hand removable side wall or the top cover.
The analyzer multi N/C 2100S consists of the following main components:
Components for sample preparation
Pneumatics/hose system
Combustion system
Components for measuring gas drying and cleaning
Detectors
Indicator and control elements, connectors
Electronic component
Accessories
pump
2 LED displays
3 Reagent bottle for
phosphoric acid
4 Drip tray
5 Condensate pump
6 Halogen trap
7 Water traps

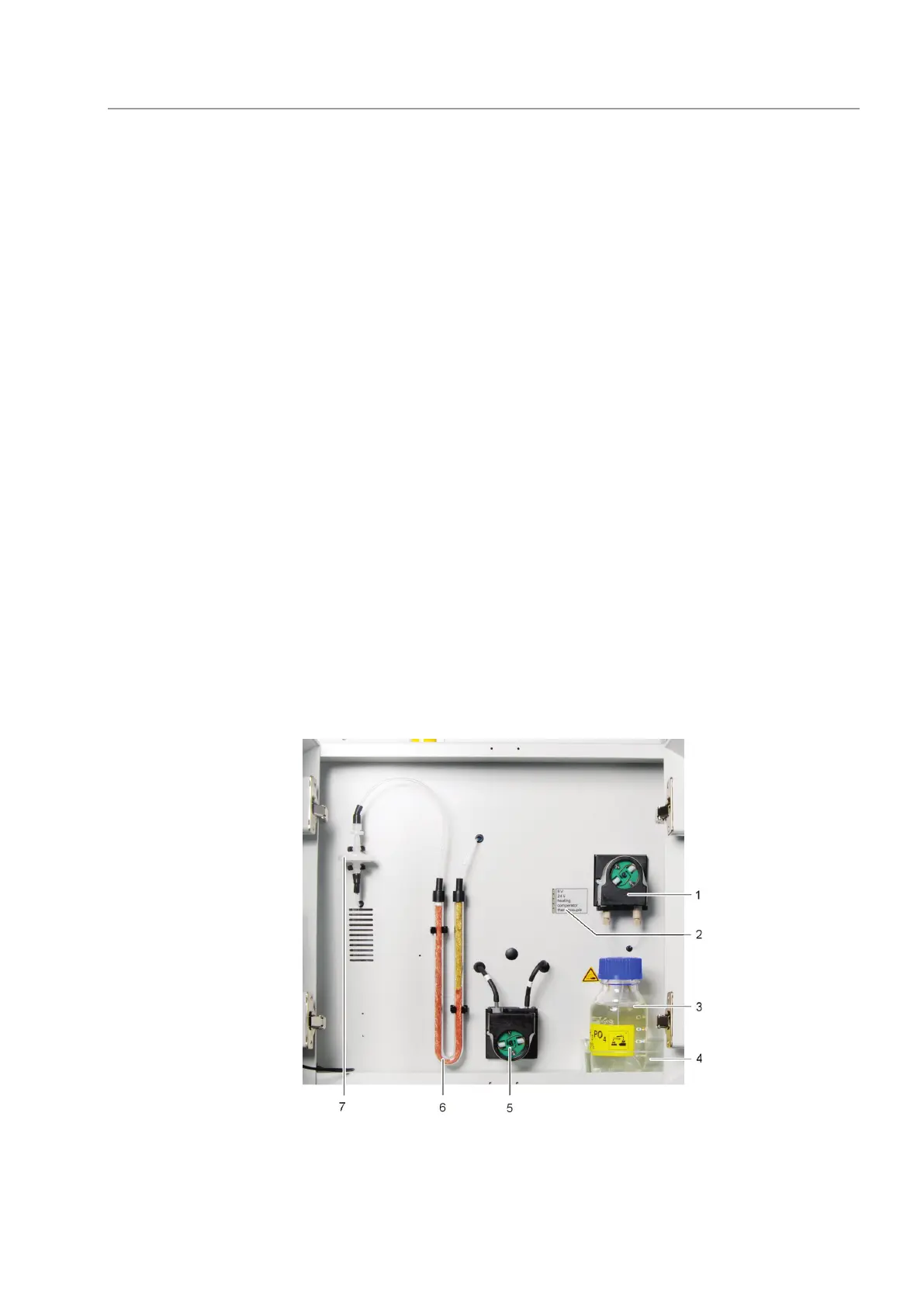

Fig. 1 Front view (doors open)
