multi N/C 2100S Function and setup
25

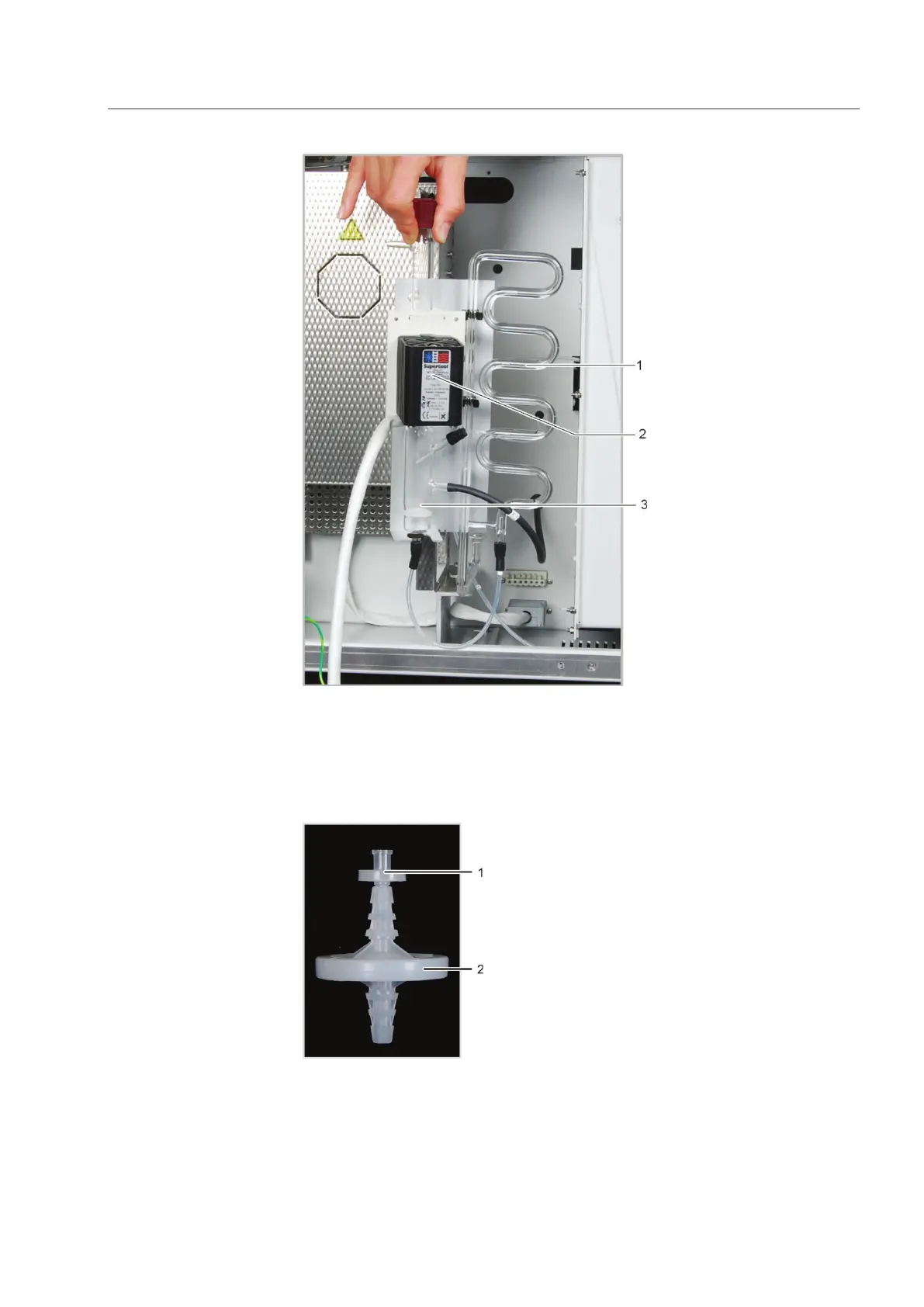

1 Condensation coil
2 Cooling block
3 TIC condensate container
Fig. 12 Condensation coil and TIC condensation module
The water traps prevent that condensed water enters the analyte gas line after exiting
the TIC condensation vessel. The larger water trap (TC Pre-filter) retains aerosol during
operation, the smaller water trap (disposable retention filter) retains rising water.
1 Disposable retention filter
2 TC Pre-filter
Fig. 13 Water traps
The analyzer multi N/C 2100S contains a halogen trap (U tube) after the TIC
condensate container and the water traps for the greatest possible removal of
interfering components in the measuring gas and to protect the detector. The U-tube is
Water traps
Halogen trap
