Operation multi N/C 2100S
58
The following generally applies:
Pressing the button [A
CCEPT VALUES] causes an automatic allocation of the calibration
ranges by the software.
By pressing the button [DELETE] you first make an initial selection which range
should be replaced.
A SEAMLESS LINKING means that the top end of the area of one calibration range
corresponds to the bottom end of the area of the next calibration range (see Fig. 27
table, first line)
The accepted calibration parameters are used for the calculation of all subsequent
analyses with this method.

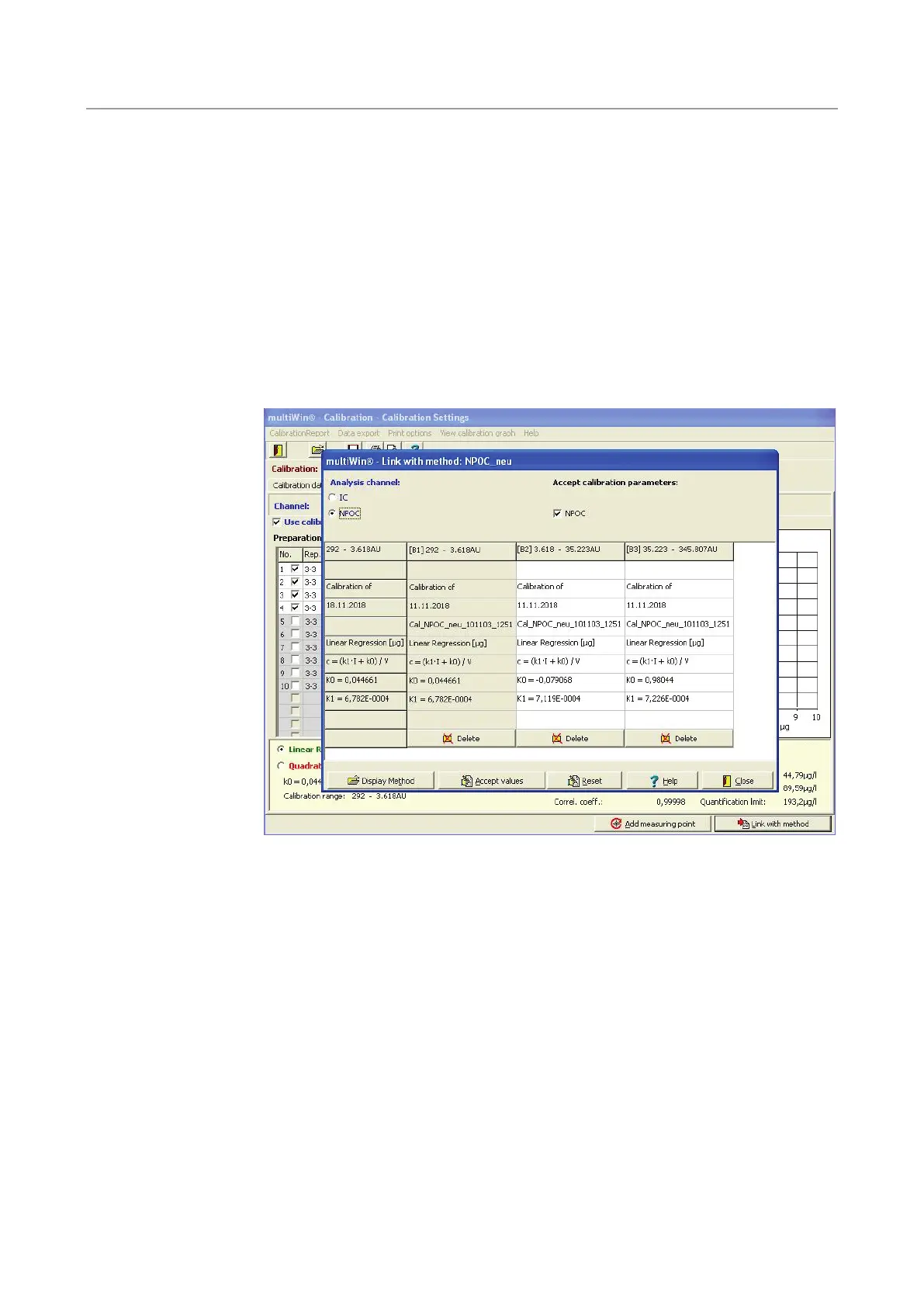

Fig. 27 Window LINK WITH METHOD with three areas
6.3.5 Managing calibration data
Print the calibration report as follows:
1. In the window C
ALIBRATION CALIBRATION SETTINGS ENABLE THE OPTION USE CALIBRATION.
2. Define the scope of printing under the menu P
RINT OPTIONS :
Print calibration graph and/or
print individual integers for each calibrated channel
3. Start the printout with the menu command C
ALIBRATIONREPORT PRINT.
Calibration data are exported via the menu
DATA EXPORT in the window CALIBRATION
CALIBRATION SETTINGS. You have the following options for exporting calibration data:
Printing calibration data
Exporting calibration files
