multi N/C 2100S Function and setup
21
The flow of the carrier gas is adjusted automatically in the multi N/C 2100S and the
inlet flow is controlled via an MFC (mass flow controller). At the device outlet the carrier
gas flow is measured using an MFM, i.e. an automatic tightness check is carried out. The
result is displayed in multiWin in the window S
YSTEM STATE.
In order to prevent backflush of humid gases from the oven a filter assembly is
integrated into the gas line between furnace head and gas box.
The NPOC purging flow is configured via the needle valve at the gas box. The NPOC
purging flow is measured using an MFM and displayed in multiWin in the window
S
YSTEM STATE. The needle valve at the gas box is available in the multi N/C 2100S
pharma model, but it is not used.

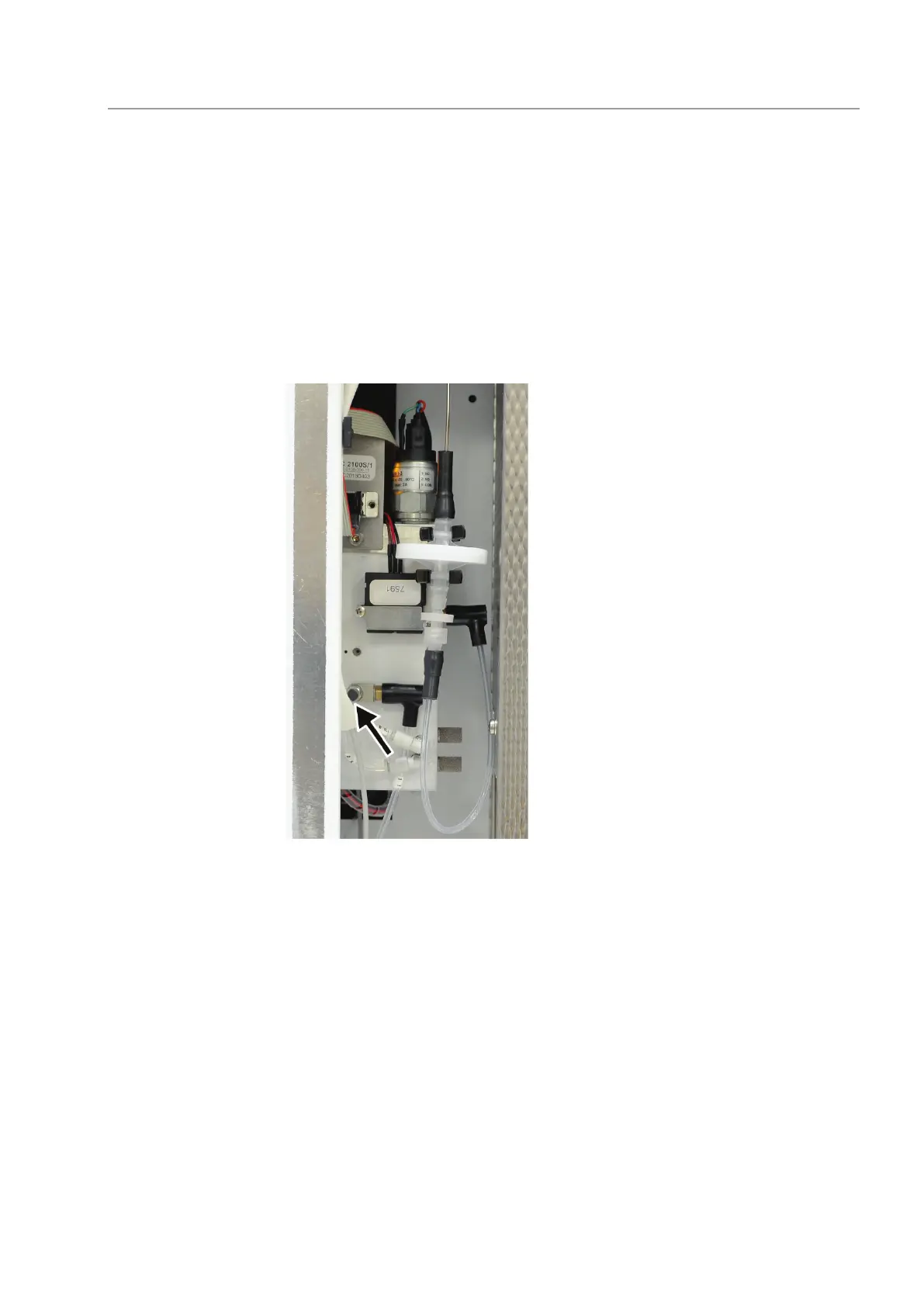

Fig. 6 Needle valve to adjust the NPOC purging flow (see arrow)
Via the condensate pump the condensate or the waste solution from TIC detection are
automatically pumped off after each measurement. The condensate pump is adjacent to
the halogen trap.
Components for flow
adjustment
Condensate pump
