Endress+Hauser Analytik Jena multi N/C 2100S - Fig. 7 Condensate Pump; Fig. 8 Phosphoric Acid Pump

Function and setup multi N/C 2100S
22

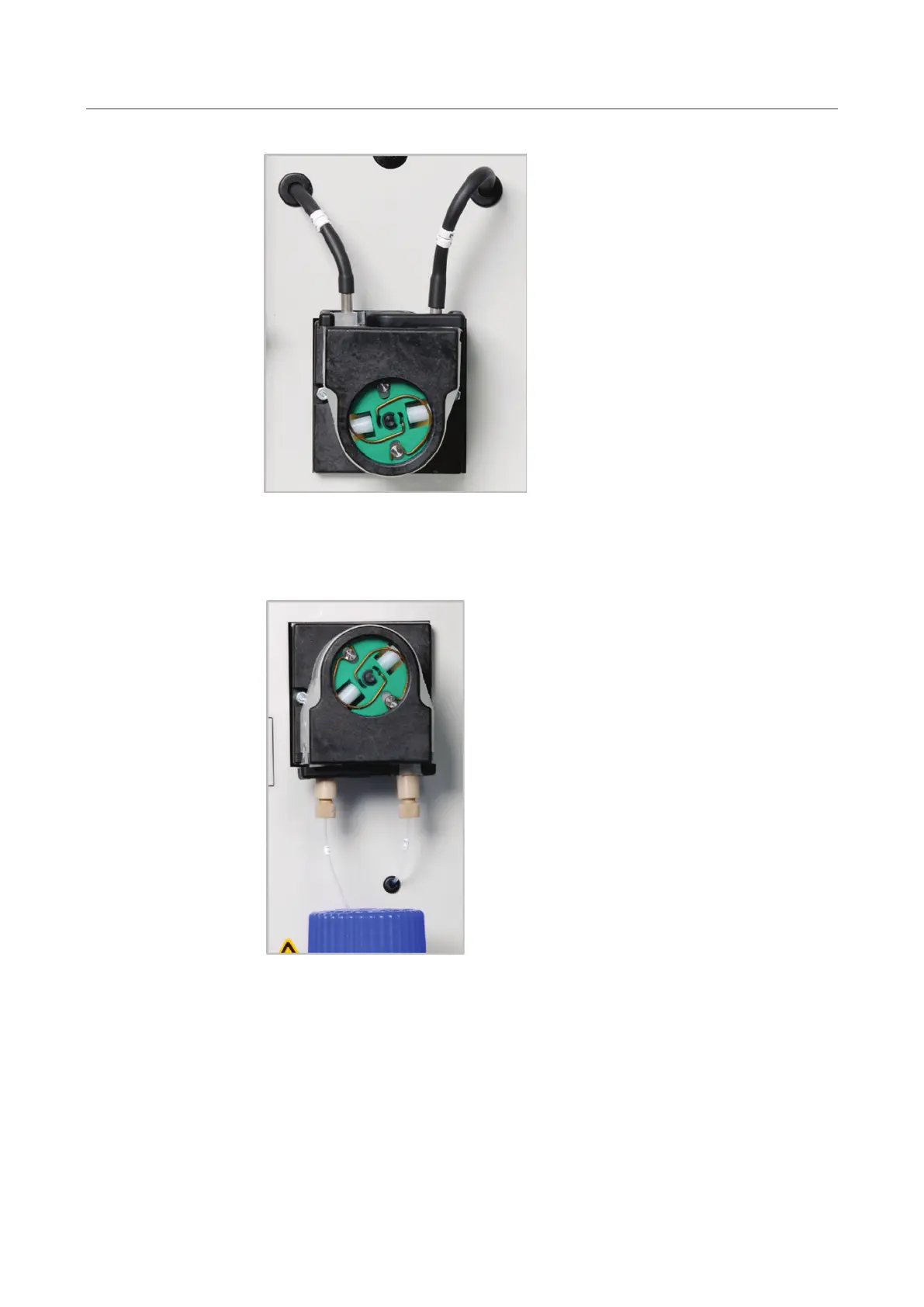

Fig. 7 Condensate pump
The phosphoric acid pump transports 10% phosphoric acid to the TIC condensate
container.
Fig. 8 Phosphoric acid pump
Within the device most gas connections have been implemented via a FAST connector
(FAST – Fast, Save, Tight). These connectors provide a tight transition between the
hoses and connections with different diameters. The soft sleeves prevent the risk of
glass fractures compared to rigid screw connections. There are different versions of the
connectors.
Phosphoric acid pump
Connection method
