multi N/C 2100S Maintenance and care
79
7.7 Maintaining the TIC condensate container and condensation coil
7.7.1 Removing and cleaning the TIC condensate container and condensation coil
The TIC condensate container and condensation coil are mounted on a carrier plate on
the right-hand side of the furnace. Remove the two containers as follows:
1. Switch the analyzer off on the main switch, pull the mains plug from the mains
outlet and disconnect the gas supply.
2. Remove the top cover.

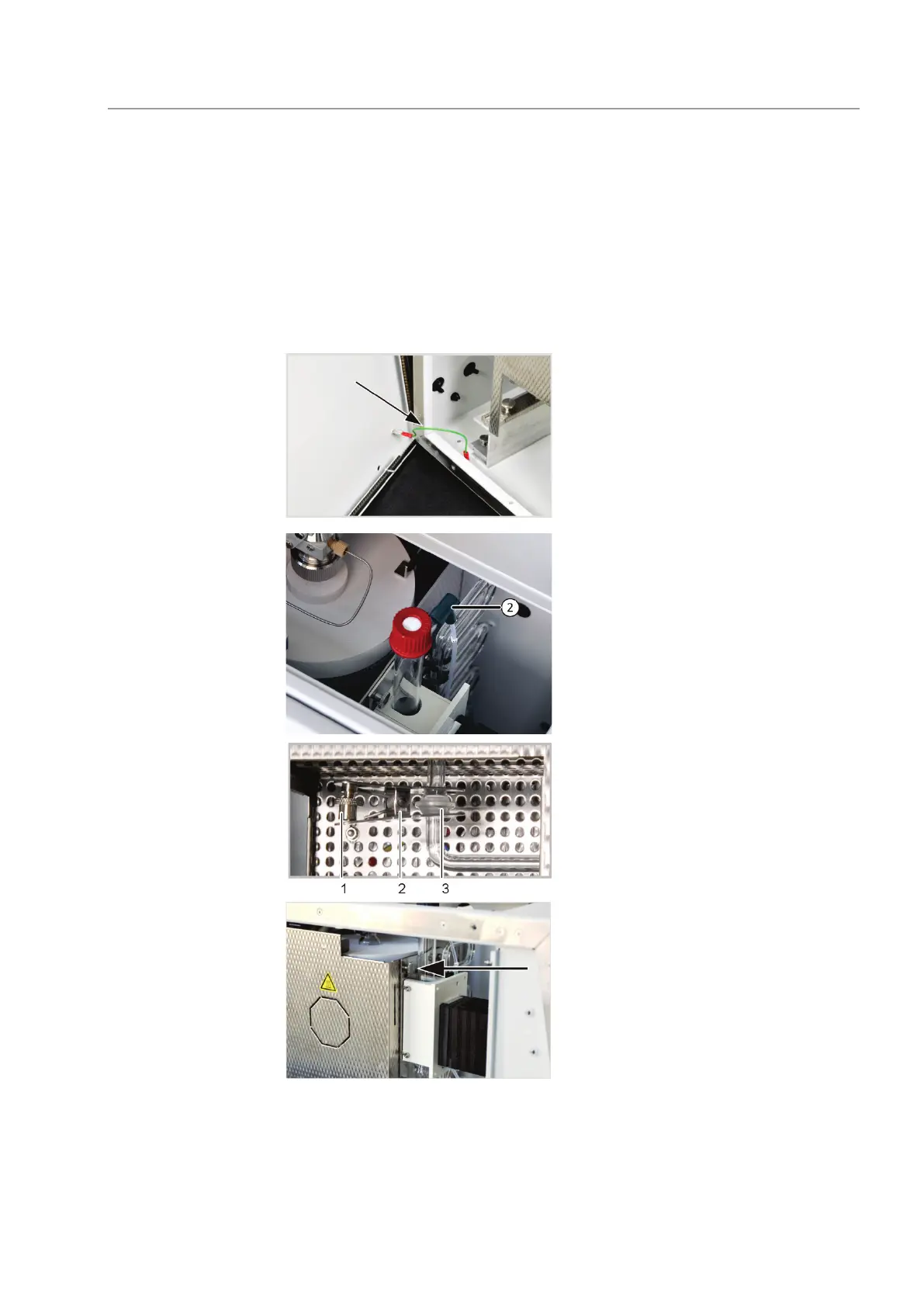

3.
Open the left side wall of the analyzer.
Unscrew the four fastening screws; the
screws are undetachable and remain in
the wall.
Disconnect the grounding conductor
connection and put the side wall safely
aside.
4. Pull hose no. 2 (to the water traps) off
the top outlet of the TIC condensate
container.
5. Disconnect the spherical joint (3)
between the lower end of the
combustion tube and the entrance of the
condensation coil by releasing the
knurled head screw (1) and removing
the fork clamp (2).
6. Remove the knurled head screw fixing
the carrier plate at the furnace.
