Maintenance and care multi N/C 2100S
80

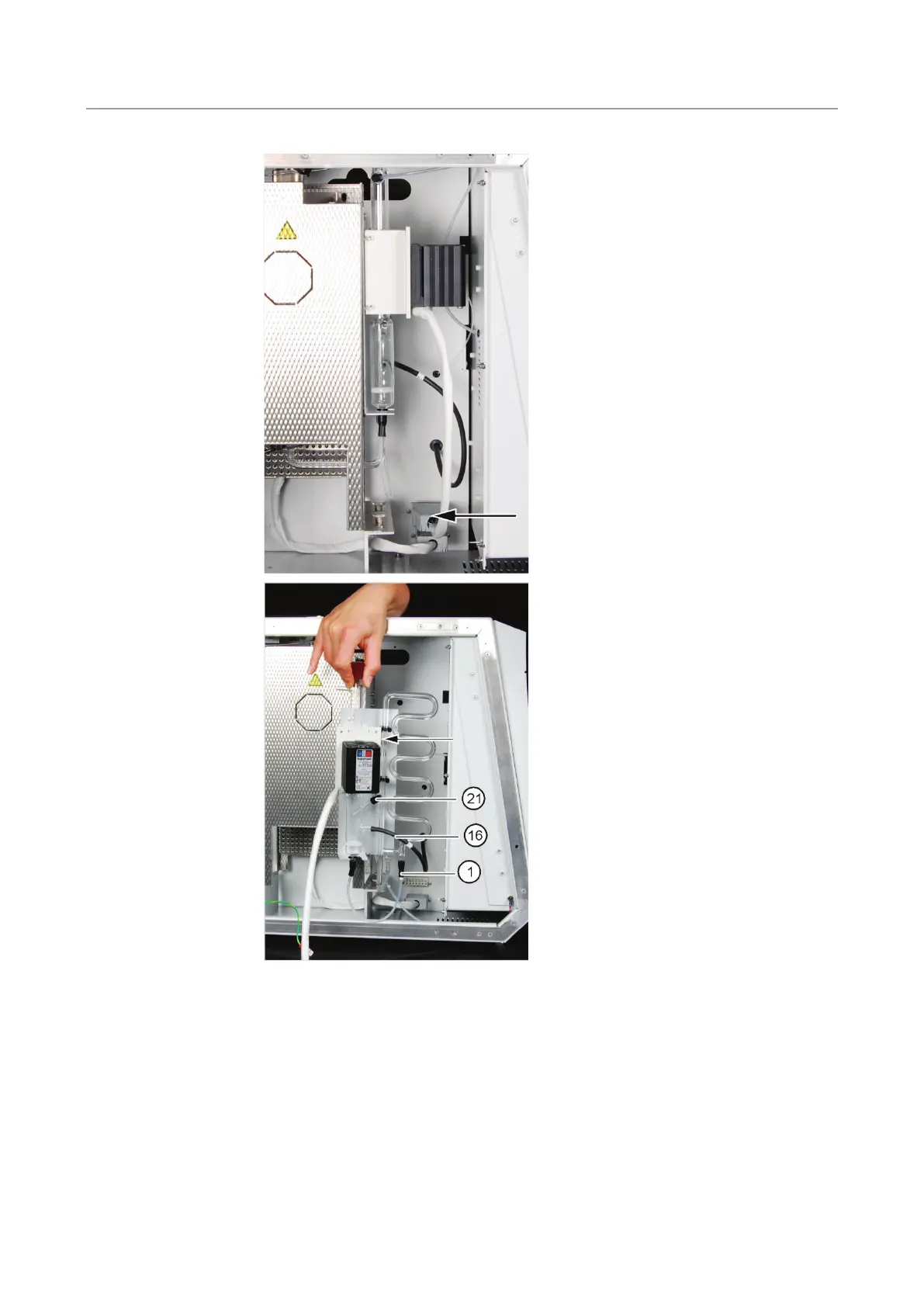

7. Pull the plug of the Peltier cooling block
from the connection at the rear
backplate (see arrow).
8.
Take the carrier plate of the TIC
condensate container and the
condensation coil out of the mounting
bracket on the right-hand side of the
furnace.
9. Pull hoses (including FAST connectors)
no. 1, 16 and 21 off the connections of
the TIC condensate container and
condensation coil.
10.
Press the condensation coil out of the
clamps on the carrier plate (arrow) and
put it aside carefully.
