Maintenance and care multi N/C 2100S
84

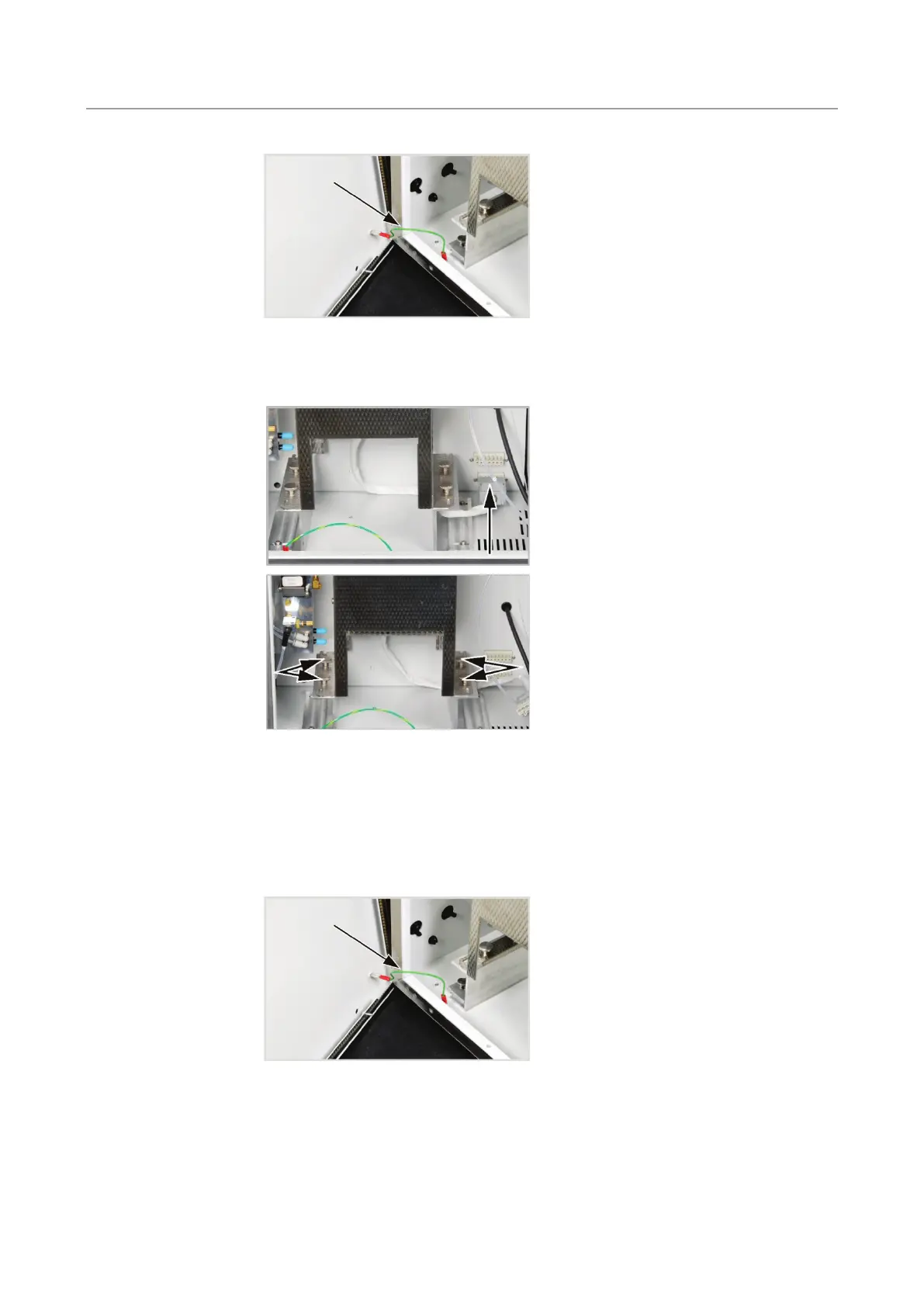

3. Open the left side wall of the analyzer.
Unscrew the four fastening screws; the
screws are undetachable and remain in
the wall.
Disconnect the grounding conductor
connection and put the side wall safely
aside.
4. Remove the combustion tube (see section "Removing the combustion tube" S. 73).
5.
Remove the TIC condensate container and condensation coil (see section "Removing
and cleaning the TIC condensate container and condensation coil" p. 79).
6. Pull the plug-in connector for the
combustion furnace out of its socket.
7. Remove the four screws for attaching
the combustion furnace to the stand.
8. Lift the combustion furnace out of the analyzer.
7.8.2 Installing the combustion furnace
Install the combustion furnace as follows:
1. Remove the top cover.
2. Open the left side wall of the analyzer.
Unscrew the four fastening screws; the
screws are undetachable and remain in
the wall.
Disconnect the grounding conductor
connection and put the side wall safely
aside.
