multi N/C 2100S Function and setup
29
1 Connection of the neutral conductor at the
sampler
2 Main switch to switch the analyzer on and off
3 Holder for mains fuse
4 Mains connection
5 Gas connection "analyte" (connected to gas
connection "internal" via a hose bridge)
6 Gas connection "CLD/pump"
7 Gas connection "internal"
8 Connection NPOC purging gas "NPOC"
9 Connection for carrier gas "O
2
/air"
10 Connection for auxiliary gas for pneumatically
connected locks "aux"
11 Waste "waste"
12 RS 232 interface for the sampler "sampler"
13 RS 232 interface for CLD and HT module
"CLD/HT"
14 USB port for PC "PC"

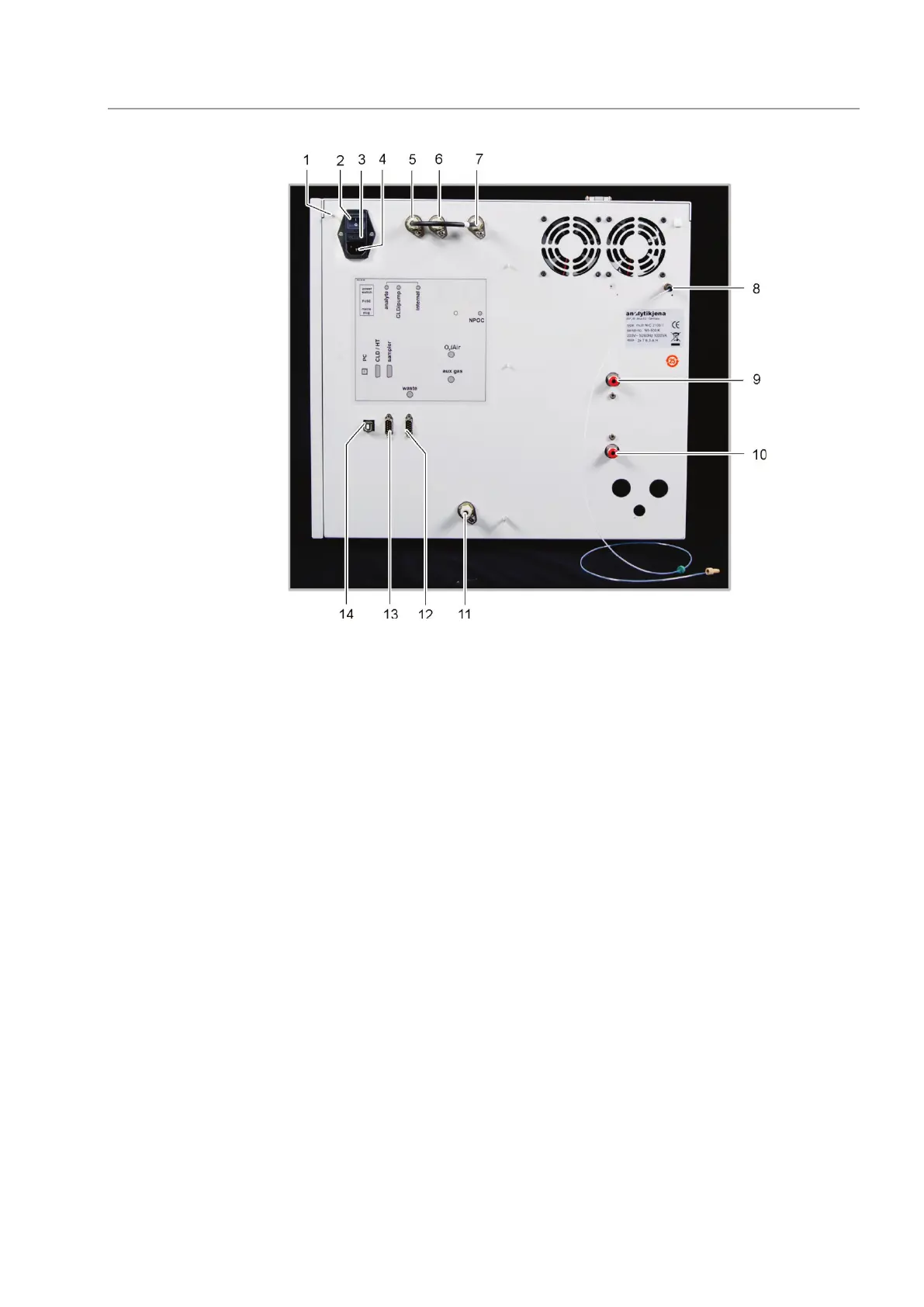

Fig. 17 Connections on the rear of the device
In the delivery condition the connection "internal" is connected to the connection
"analyte" via a hose bridge. When connecting a solids module the bridge must be
removed and the solids module connected.
The chemiluminescence detector is connected via the connection (CLD/pump).
The connection for NPOC purging gas is available on the rear of the multi N/C 2100S
pharma model, but it is not used.
3.1.7 Accessories
The following accessories are required for measurements with the analyzer:
connection cables, connection hoses
suitable waste container or drainage
reagent bottle with drip pan for phosphoric acid H
3
PO4, 250 ml
