Maintenance and care multi N/C 2100S
66
• Click [OK] to confirm the selection.
Note:
The syringe volume is specified on the syringe.

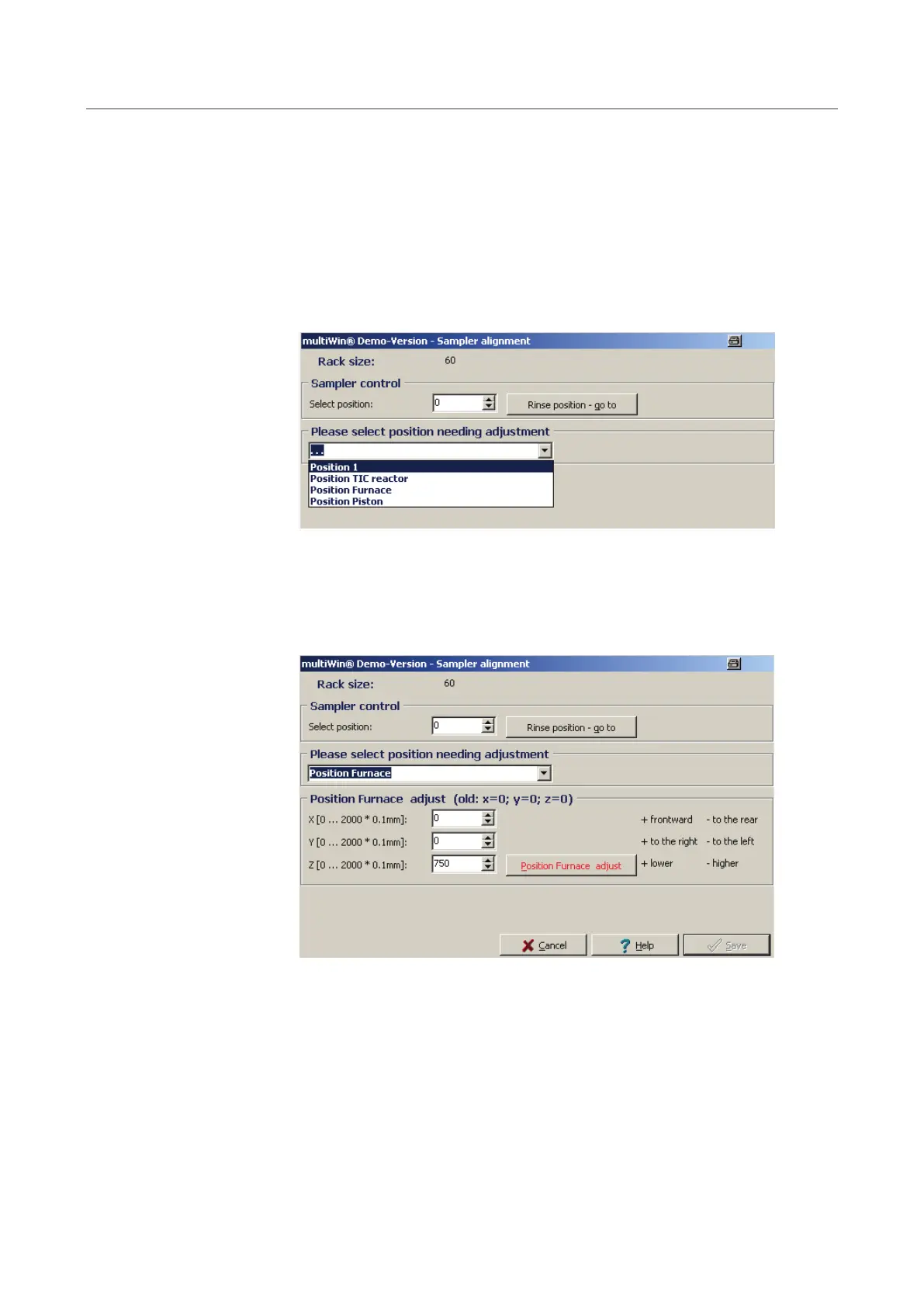

2. Using the menu command I
NSTRUMENT  SAMPLER ALIGNMENT open the window with
the same name.
3. In the group P
LEASE SELECT POSITION NEEDING ADJUSTMENT select the desired position
(P
OSITION 1  POSITION TIC REACTOR  POSITION FURNACE  POSITION PISTON) from the list.
4. Increase or reduce the x, y and z values in 0.1 mm increments for alignment:
• x direction: forward and back movement
• y direction: left or right movement
• z direction: up or down movement
5. Start the adjustment for the respective position by clicking on the corresponding
button (e.g. [A
LIGN POSITION TIC REACTOR]).
6. Accept the adjustment configuration for all positions by clicking on the button [S
AVE].
 The values for adjusting the positions are accepted.
