Endress+Hauser Proline 200 - Display

Operation options Proline Prowirl F 200 PROFIBUS PA
48 Endress+Hauser
8.3 Access to the operating menu via the local display

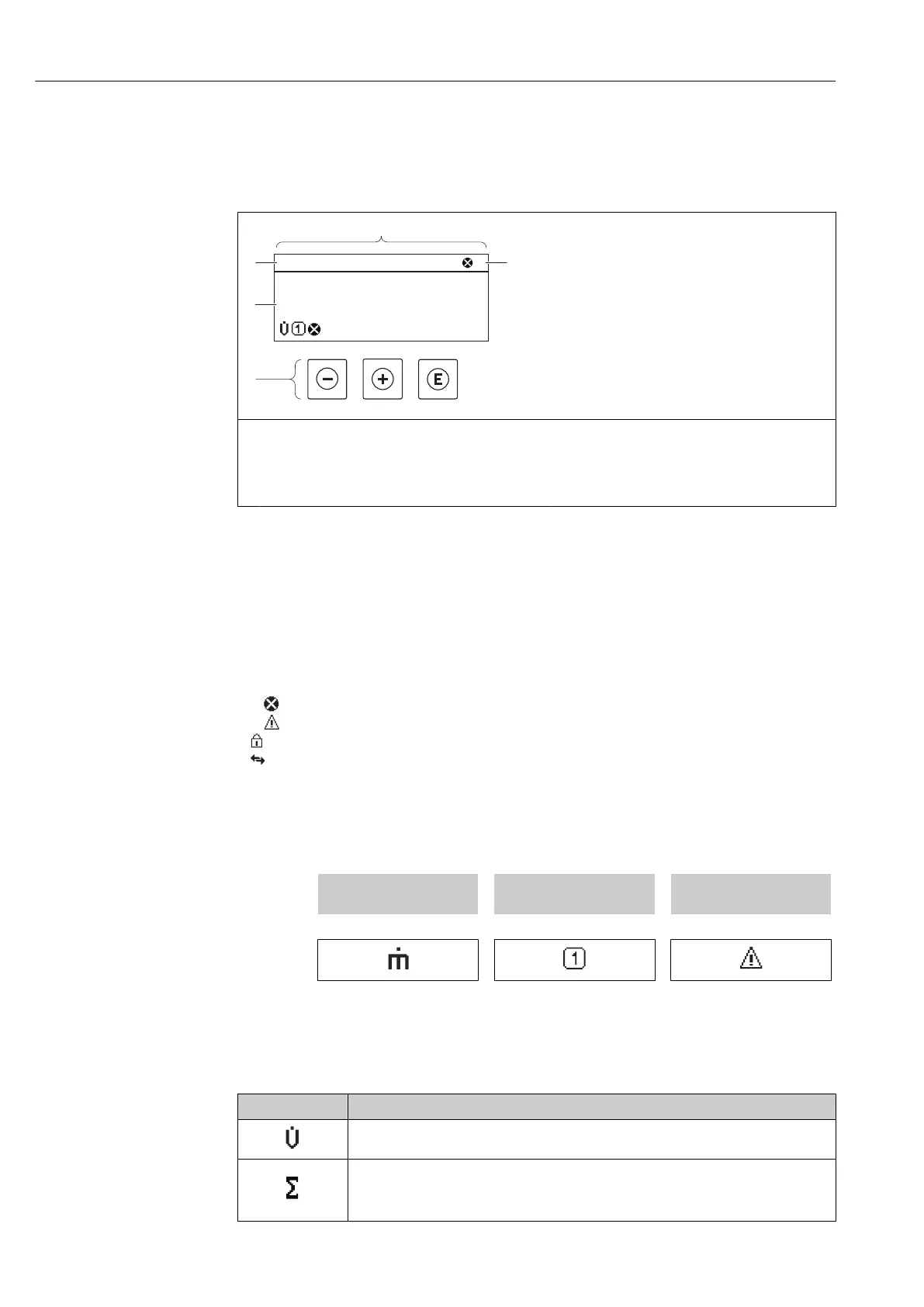

8.3.1 Operational display
X X X X X X XX X
4
2
1
3
5
l/h
1120.50
F
A0016502
1
2
3
4
5
Operational display
Device tag
Status area
Display area for measured values (4-line)
Operating elements →  52
Status area
The following symbols appear in the status area of the operational display at the top right:
• Status signals→  137
– F: Failure
– C: Function check
– S: Out of specification
– M: Maintenance required
• Diagnostic behavior→  138
– : Alarm
– : Warning
• : Locking (the device is locked via the hardware )
• : Communication (communication via remote operation is active)
Display area
In the display area, each measured value is prefaced by certain symbol types for further
description:
Measured variable Measurement channel
number
Diagnostic behavior
↓ ↓ ↓
Example
Appears only if a diagnostics
event is present for this
measured variable.
Measured variables
Symbol Meaning
Volume flow
Totalizer

The measurement channel number indicates which of the three totalizers is
displayed.
