Measurement channel numbers
Symbol Meaning
Measurement channel 1 to 4
The measurement channel number is displayed only if more than one channel is present for the same measured
variable type (e.g. totalizer 1-3).
Diagnostic behavior
The diagnostic behavior pertains to a diagnostic event that is relevant to the displayed measured variable.
For information on the symbols →  138
The number and display format of the measured values can be configured via the
"Format display" parameter →  82. "Operation" menu → Display → Format
display
8.3.2 Navigation view
In the submenu In the wizard
4
2
1
3
5
/../Operation
0091-1
Access stat.disp
Operator
Locking status
Display
A0013993-EN
S
4
2
1
5
3
/../Curr. output 1
Assign curr.
Volume flow
A0016327-EN
1
2
3
4
5

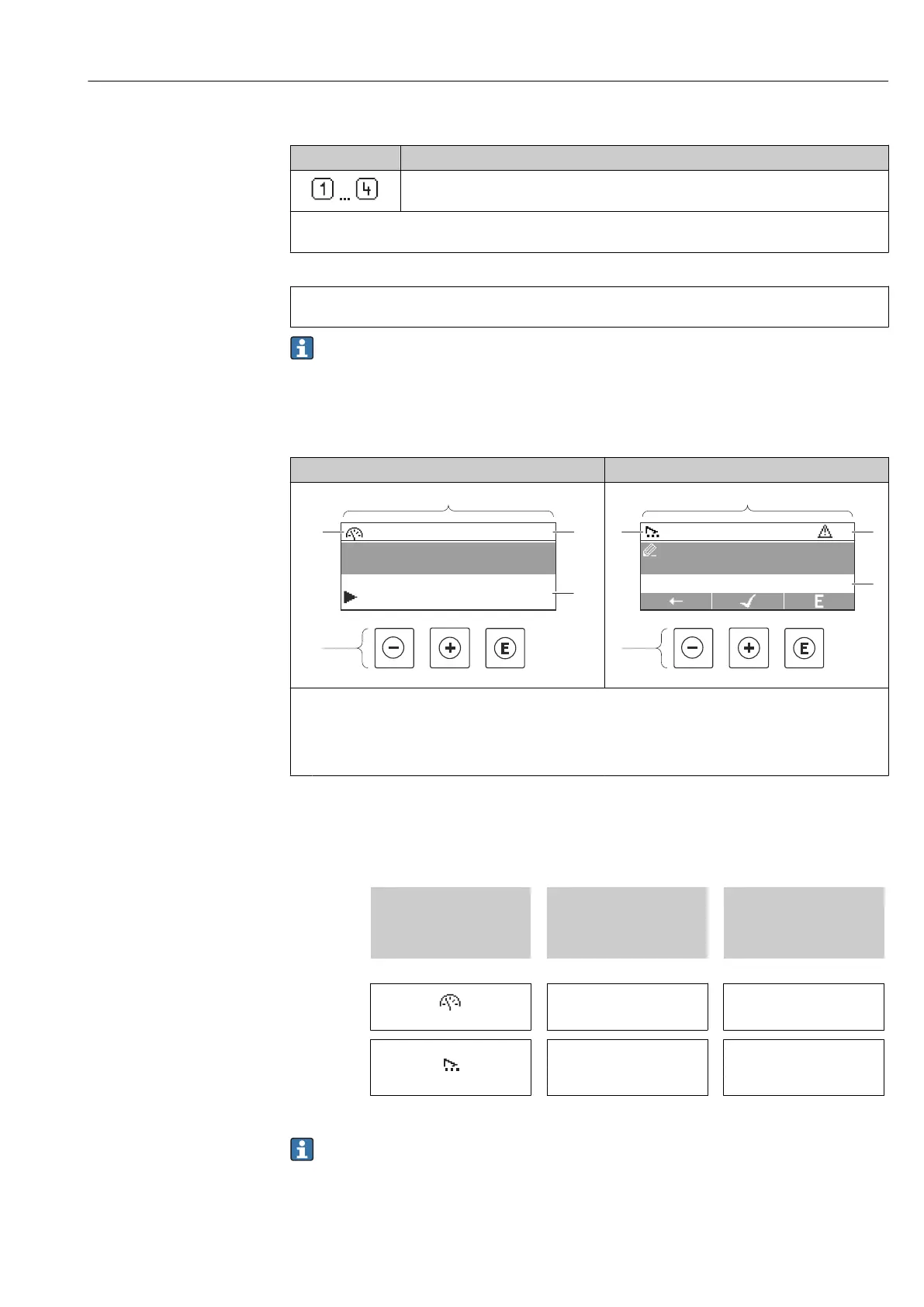

Navigation view
Navigation path to current position
Status area
Display area for navigation
Operating elements →  52
Navigation path
The navigation path - displayed at the top left in the navigation view - consists of the
following elements:
• In the submenu:
Display symbol for menu
• In the wizard:
Display symbol for wizard
Omission symbol for
operating menu levels in
between
Name of current
• Submenu
• Wizard
• Parameter
↓ ↓ ↓
Examples / ../ Display
/ ../ Display
For more information about the menu icons, refer to the "Display area" section
→  50
