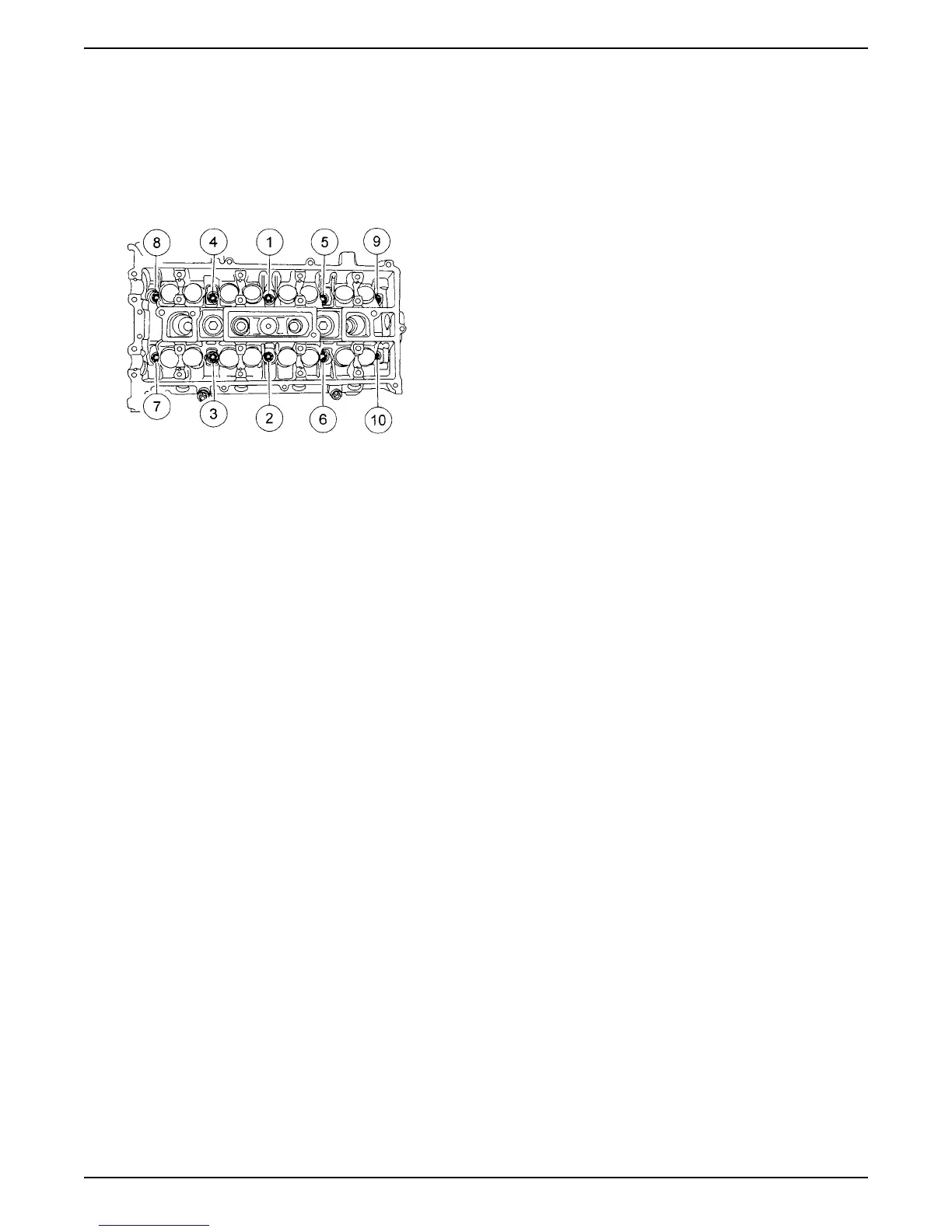

6. Tighten bolts in sequence shown in 5 stages:
• Stage 1: Tighten to 5 Nm (44 lb-in)
• Stage 2: Tighten to 15 Nm (11 lb-ft)
• Stage 3: Tighten to 45 Nm (33 lb-ft)
• Stage 4: Tighten an additional 90 degrees
• Stage 5: Tighten an additional 90 degrees.
7. Install fuel rail -- refer to Section 4.
8. Install exhaust manifold -- Refer to“Exhaust Manifold
- Installation” on page 19 of this section.
9. Install camshafts -- Refer to“Camshafts -
Installation” on page 18 of this section.
10.Install camshaft cover -- Refer to“Camshaft Cover -
Installation” on page 7 of this section.
11.Install or reconnect any other component that was
removed or disconnected.
12.Reconnect negative battery cable -- refer to Section
6.
