DSG-423 ENGINE
02-29

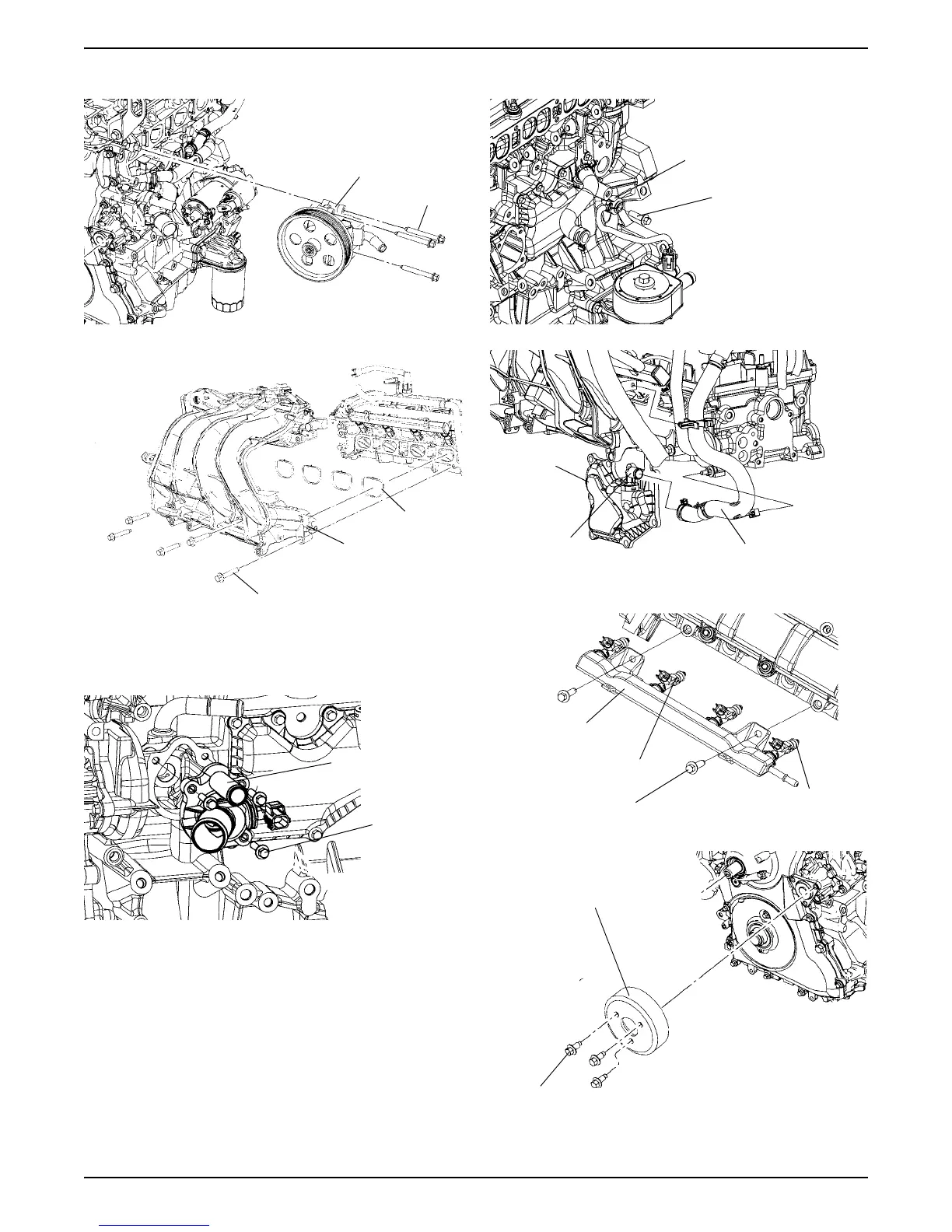

11.Remove 4 bolts and power steering pump.
12. Remove 5 bolts and intake manifold.
13.Remove ignition coils.
14.Remove 3 bolts and thermostat housing.
15.Remove knock sensor.
16.Remove engine vent cover.
17.Remove fuel rail and injectors. Discard o-rings.
18.Remove 3 bolts and water pump pulley.
Power
Steering
Pump
Bolt
Intake
Manifold
Bolt
Gasket
Thermostat
Housing
Bolt
Knock Sensor
Bolt
Engine
Vent
Cover
PCV Valve
PCV Hose
Fuel Rail
Injector
Bolt
O-ring
Water Pump
Pulley
Bolt
