DSG-423 ENGINE
02-42

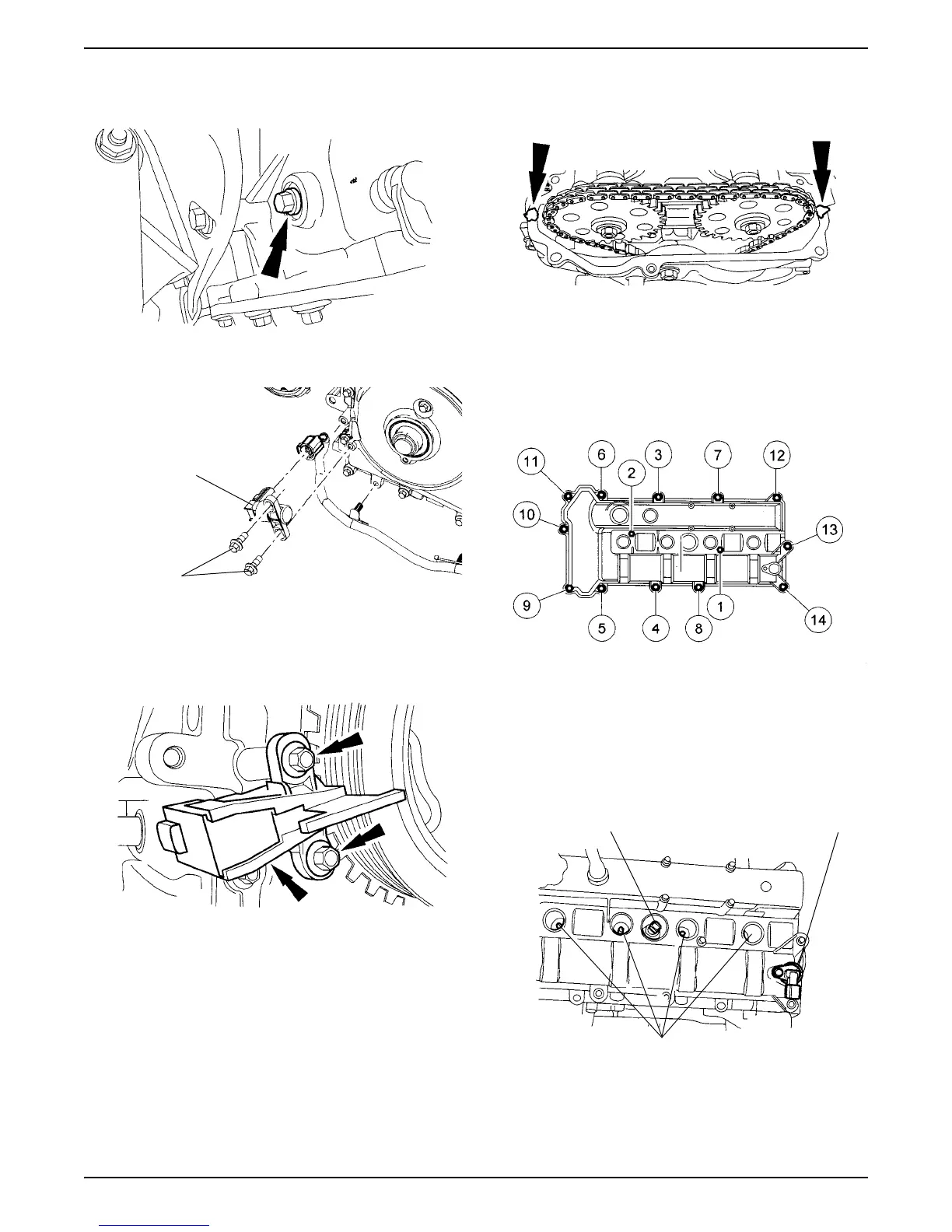

39.Install the plug bolt:
• Tighten to 20 Nm (15 lb-ft).
40.Position a new crankshaft position (CKP) sensor and
loosely install 2 bolts.
41.Using alignment tool that came with new sensor,
adjust CKP alignment. The tool must engage a tooth
of the damper, then tighten bolts:
• Tighten to 7 Nm (62 lb-in).
NOTE: If camshaft cover is not secured within 4
minutes, the sealant must be removed and the sealing
area recleaned -- Refer to“Engine Cleaning” on page 34
of this section.
42.Apply silicone gasket and sealant to the locations
shown.
43.Install camshaft cover and tighten bolts in sequence
show:
• Tighten to 10 Nm (89 lb-in).
44.Install camshaft position (CMP) sensor and bolt:
• Tighten to 7 Nm (62 lb-in).
45.Install cylinder head temperature (CHT) sensor:
• Tighten to 12 Nm (9 lb-ft).
46.Install spark plugs:
• Tighten to 15 Nm (11 lb-ft).
CKP Sensor
Bolts
CHT Sensor
Spark Plugs
CMP Sensor
To Next Page
